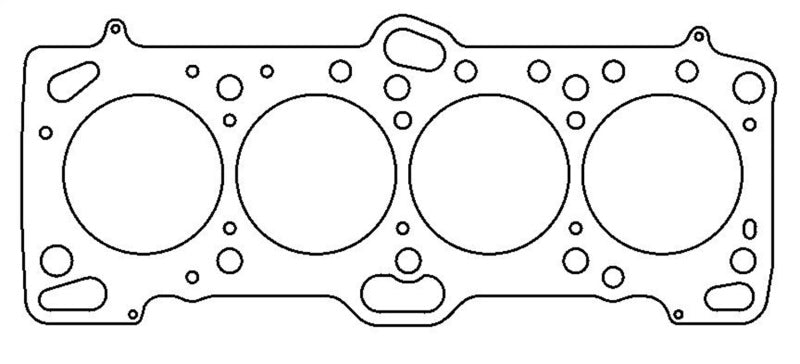

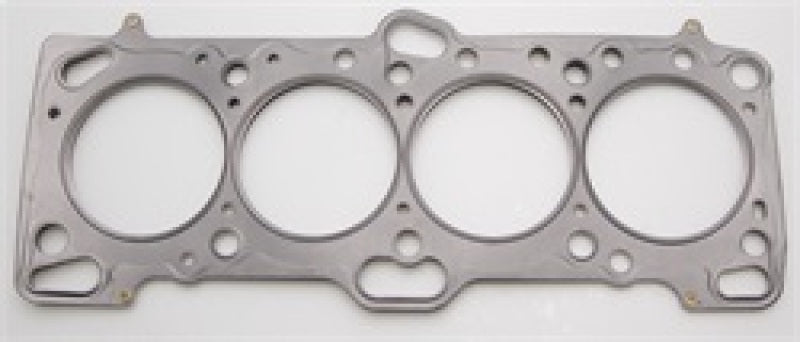

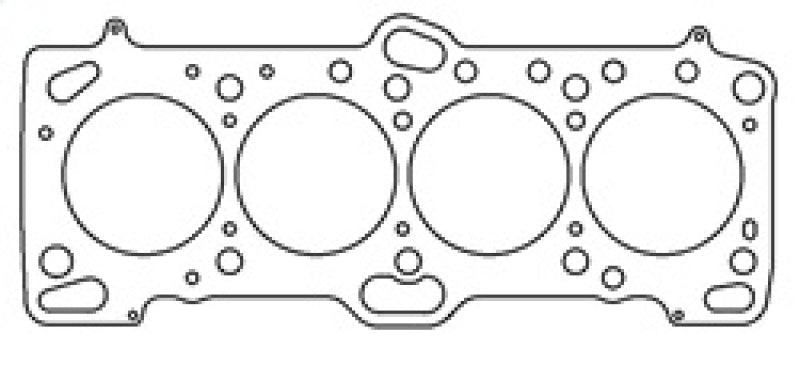

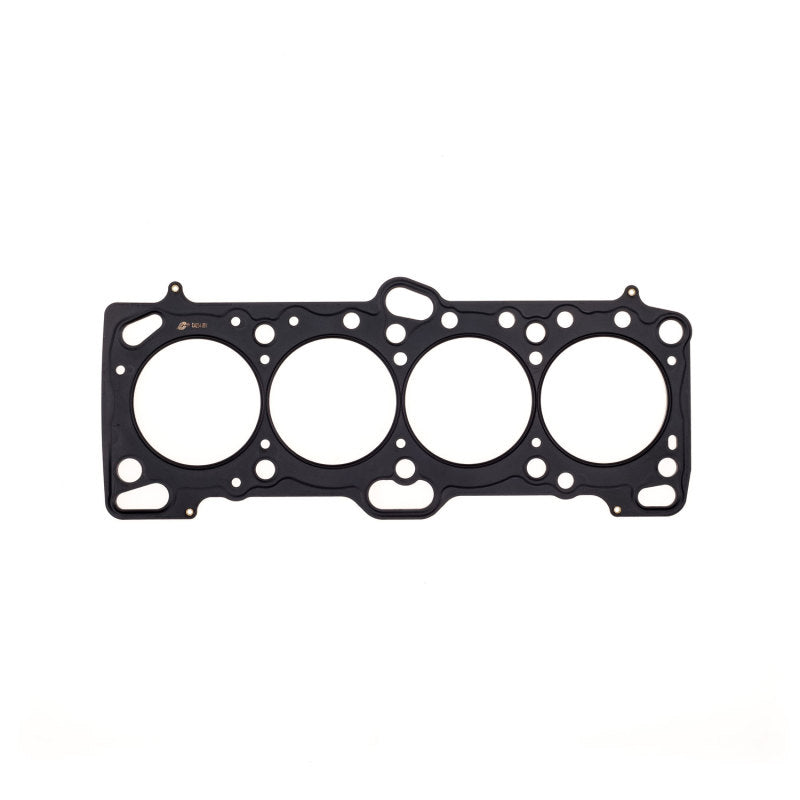

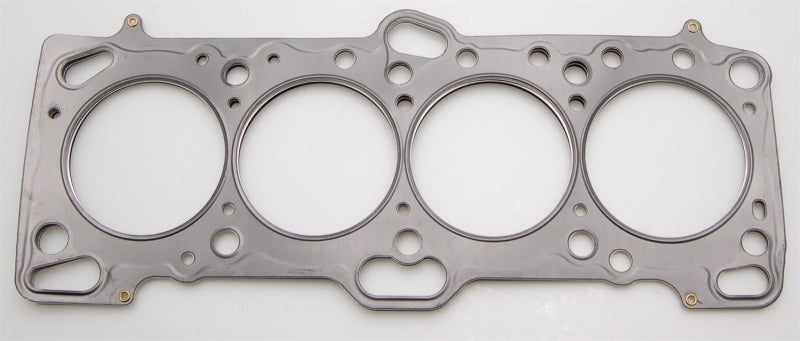

Cometic Mitsubishi Eclipse/Galant/Lancer (thru Evo 3) 4G63/T 86mm .070 inch MLS Head Gasket

Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.070". EVO 1-3. Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.
User 1
Installation Instructions
Warranty
Certificate of Origin
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
1989-1990	Dodge	Colt	Vista
1990-1992,1996-1998	Eagle	Talon	Base
1993-1994	Eagle	Talon	ES
1995-1998	Eagle	Talon	ESi
1990-1998	Eagle	Talon	TSi
1990-1992,1996-1997	Mitsubishi	Eclipse	Base
1990-1999	Mitsubishi	Eclipse	GS
1990-1999	Mitsubishi	Eclipse	GST
1990-1999	Mitsubishi	Eclipse	GSX
1995-1999	Mitsubishi	Eclipse	RS
1996-1999	Mitsubishi	Eclipse	Spyder GST
1989-1992	Mitsubishi	Galant	Base
1989-1992	Mitsubishi	Galant	GS
1991-1992	Mitsubishi	Galant	GSR
1990-1992	Mitsubishi	Galant	GSX
1989-1992	Mitsubishi	Galant	LS
1988	Mitsubishi	Galant	Sigma
1991-1992	Mitsubishi	Galant	VR-4
1989-1990	Plymouth	Colt	Vista
1990-1994	Plymouth	Laser	RS
