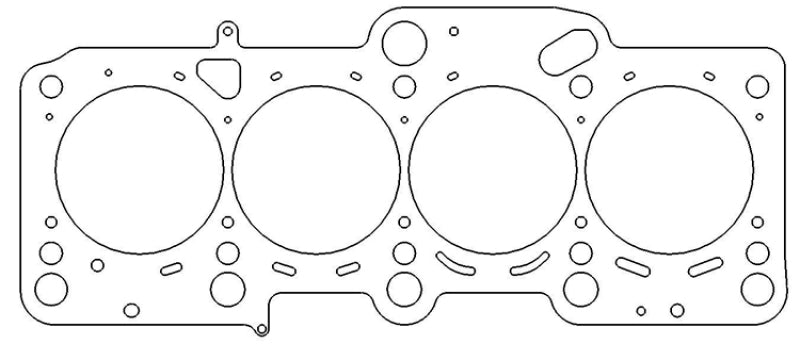

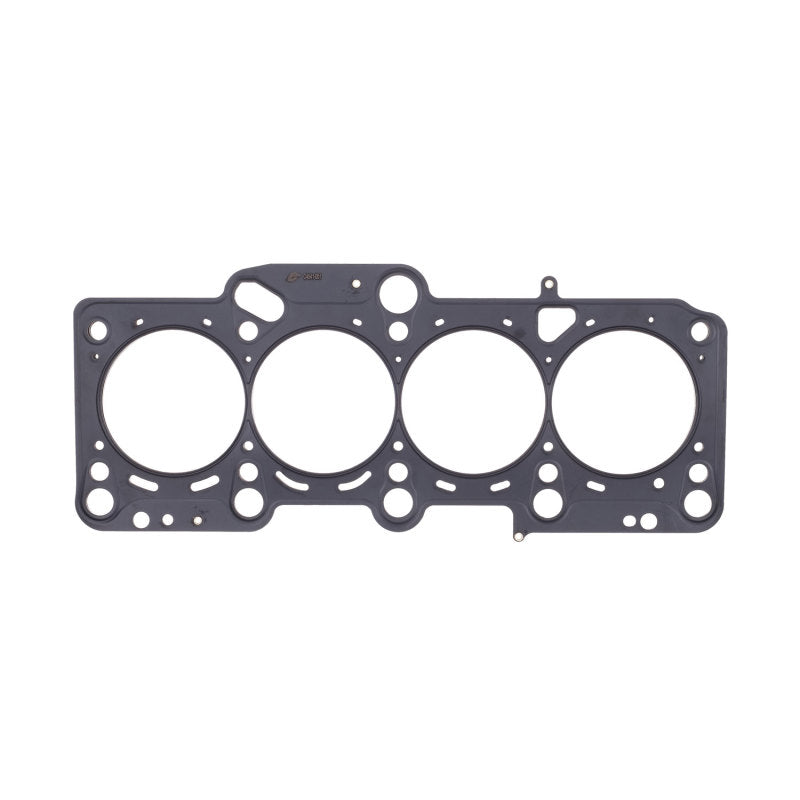

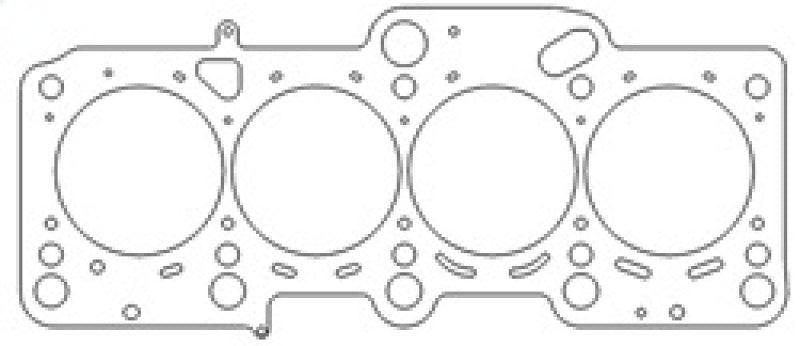

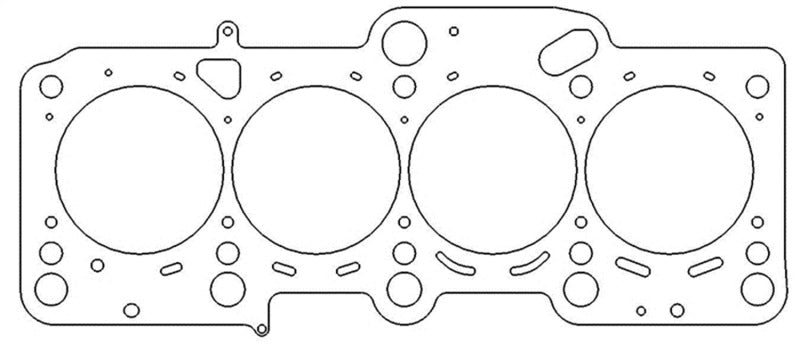

Cometic VW/Audi 05+ BWA/BPY 2.0L 16V 83.5mm .040 inch MLS Head Gasket

Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.040". Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.
Warranty
Certificate of Origin
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
2006-2010	Audi	A3	Base
2006-2010	Audi	A3 Quattro	Base
2005-2010	Audi	A4	Base
2007-2009	Audi	A4	Cabriolet
2005-2010	Audi	A4 Quattro	Avant
2005-2010	Audi	A4 Quattro	Base
2007-2009	Audi	A4 Quattro	Cabriolet
2010	Audi	A5	Cabriolet
2010	Audi	A5 Quattro	Base
2010	Audi	A5 Quattro	Cabriolet
2008-2009	Audi	TT	Base
2008-2010	Audi	TT Quattro	Base
2009-2010	Audi	TTS Quattro	Base
2009-2010	Volkswagen	CC	Luxury
2009-2010	Volkswagen	CC	Sport
2007	Volkswagen	Eos	2.0T
2007	Volkswagen	Eos	Base
2008-2010	Volkswagen	Eos	Komfort
2008-2010	Volkswagen	Eos	Lux
2008	Volkswagen	Eos	Turbo
2006-2010	Volkswagen	GTI	Base
2007	Volkswagen	GTI	Fahrenheit
2006-2007	Volkswagen	Jetta	2.0T
2006-2009	Volkswagen	Jetta	GLI
2009	Volkswagen	Jetta	SEL
2008-2010	Volkswagen	Jetta	Wolfsburg Edition
2006-2007	Volkswagen	Passat	2.0T
2008-2010	Volkswagen	Passat	Komfort
2008	Volkswagen	Passat	Lux
2008	Volkswagen	Passat	Turbo
2006-2007	Volkswagen	Passat	Value Edition
2007	Volkswagen	Passat	Wolfsburg Edition
2009-2010	Volkswagen	Tiguan	S
2009-2010	Volkswagen	Tiguan	SE
2009-2010	Volkswagen	Tiguan	SEL
2010	Volkswagen	Tiguan	Wolfsburg Edition
