Edelbrock 70-91 AMC 304/360/390/401 Pro Flo 4 4150-Style 35lb/hr Fuel Injection Kit

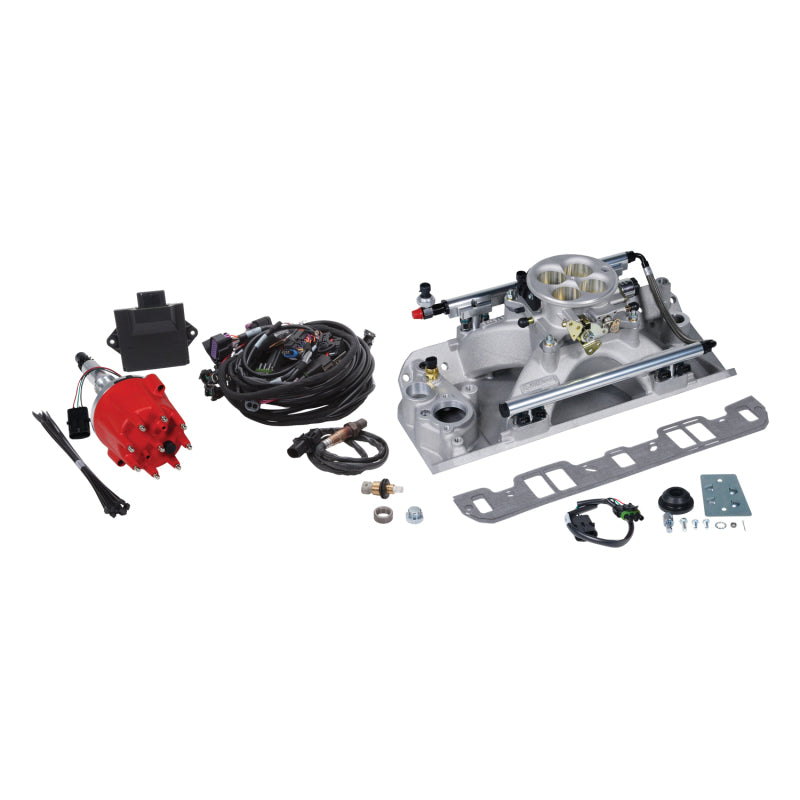

The Edelbrock Pro-Flo 4 EFI Kit #35650 for 1970-1991 AMC 304, 360, 390, 401 CID engines is a fully sequential multi-port injection system designed with a fuel injector strategically positioned in each runner of the intake manifold to deliver the best fuel atomization and most even distribution to each cylinder. This system features the high-performance Victor Jr.-style single-plane intake manifold that comes preassembled with high-flow injectors, fuel rails and 4150-flange throttle body. All supporting sensors are included along with distributor, wire harnesses and ECU. The Victor manifold is designed with a larger cross-sectional area in the plenum and larger runners for high-horsepower and/or large cubic-inch applications. This kit uses 35 lb/hr injectors and is rated for 550 horsepower at 58 PSI of fuel pressure. Calibration of the Pro-Flo 4 is a simple process with a Setup Wizard providing guidance through the E-Tuner's initial programming. Once provided with basic information such as type of engine, cubic inches, firing order, and cam profile, the E-Tuner then selects the most appropriate base calibration. Once the base calibration is set, the self-learning E-Tuner takes over to continually maximize the fuel map for your specific engine configuration, even compensating for changes in altitude and weather. The E-Tuner provides more advanced tuning options that allow precise control over cold starts and acceleration while retaining the simplicity that Pro-Flo systems are known for. No laptop tuning is required.The exclusive Edelbrock E-Tuner 4 app is Free and Available for Android and IOS based smart phone or tablet.

This Part Fits:

Year	Make	Model	Submodel
1970	American Motors	Ambassador	Base
1971-1974	American Motors	Ambassador	Brougham
1970-1971	American Motors	Ambassador	DPL
1970-1972	American Motors	Ambassador	SST
1970,1978-1979	American Motors	AMX	Base
1978-1979	American Motors	Concord	Base
1979	American Motors	Concord	DL
1979	American Motors	Concord	Limited
1972-1976	American Motors	Gremlin	Base
1976	American Motors	Gremlin	Custom
1977	American Motors	Hornet	AMX
1970-1971,1973-1977	American Motors	Hornet	Base
1971	American Motors	Hornet	SC/360
1971-1977	American Motors	Hornet	Sportabout
1970-1972	American Motors	Hornet	SST
1971-1974	American Motors	Javelin	AMX
1970-1974	American Motors	Javelin	Base
1970-1972	American Motors	Javelin	SST
1970	American Motors	Javelin	SST Mark Donohue
1970	American Motors	Javelin	SST Trans Am
1971-1978	American Motors	Matador	Base
1974	American Motors	Matador	Brougham
1974	American Motors	Matador	X
1978	American Motors	Pacer	Base
1979	American Motors	Pacer	DL
1979	American Motors	Pacer	Limited
1970	American Motors	Rebel	Base
1970	American Motors	Rebel	SST
1970	American Motors	Rebel	The Machine
1979	American Motors	Spirit	Base
