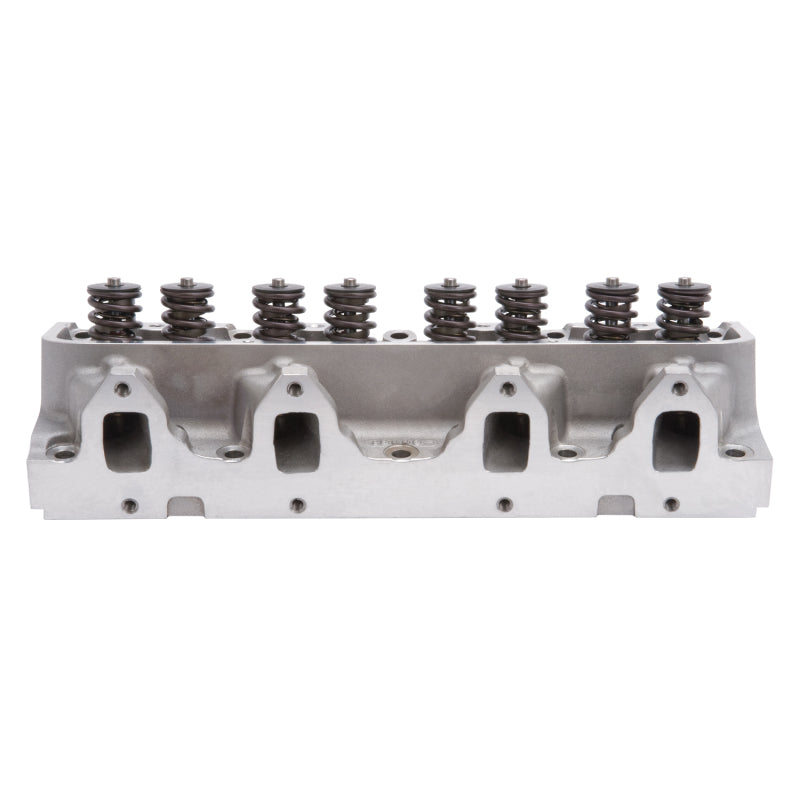

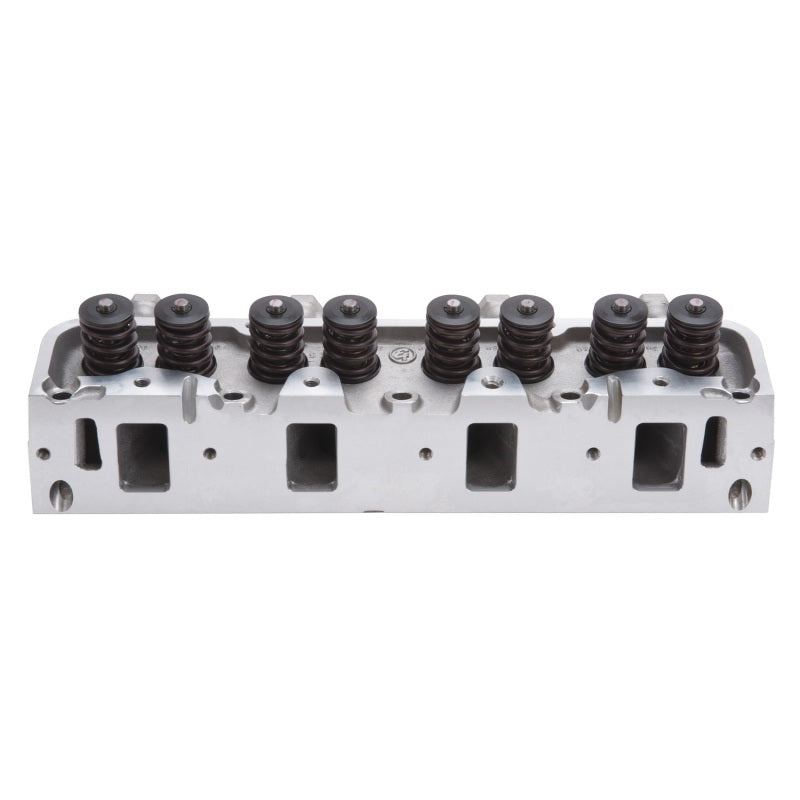

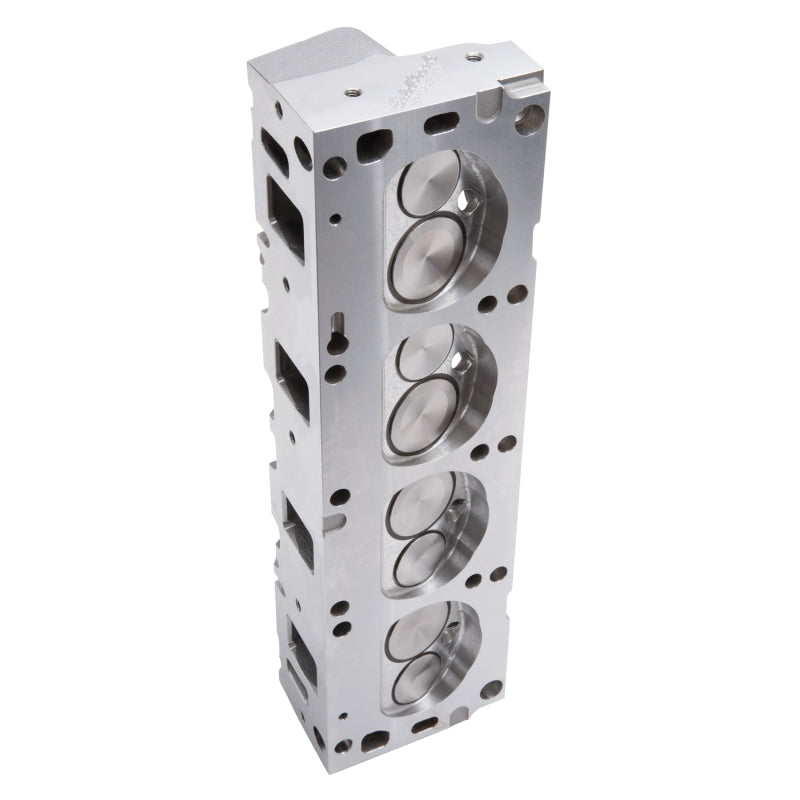

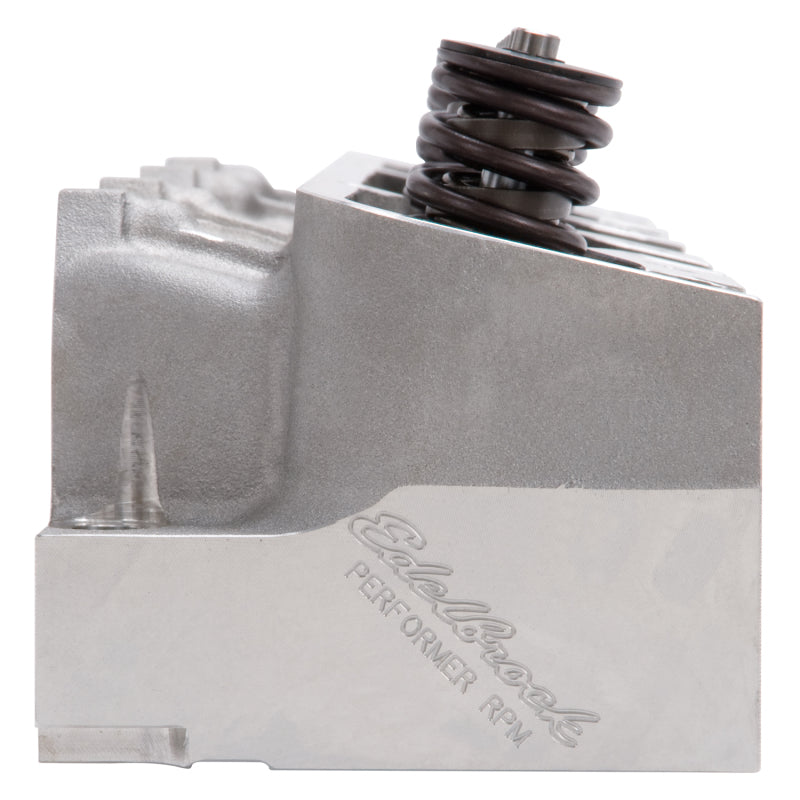

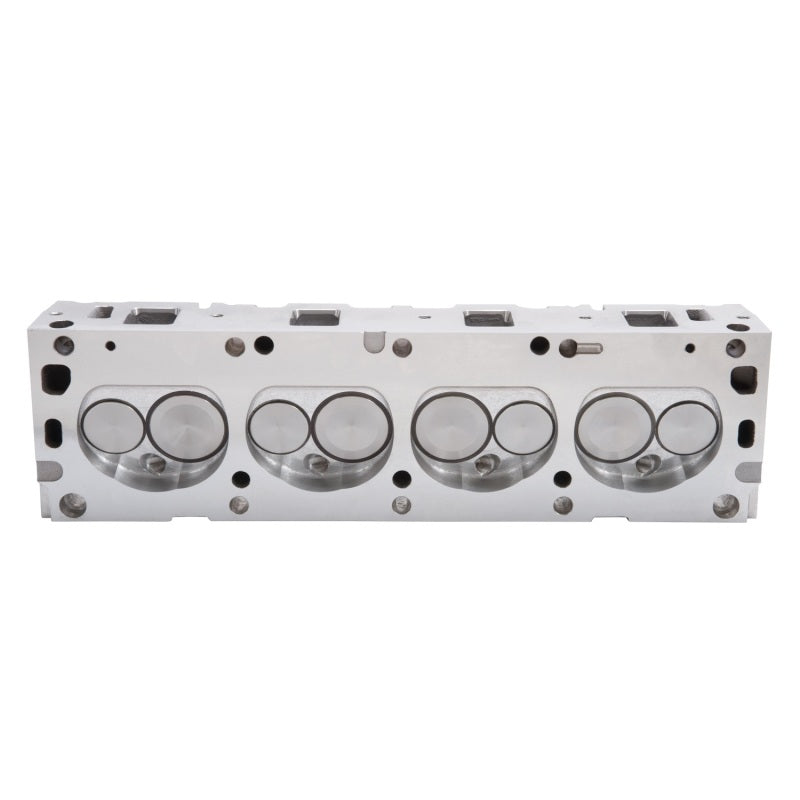

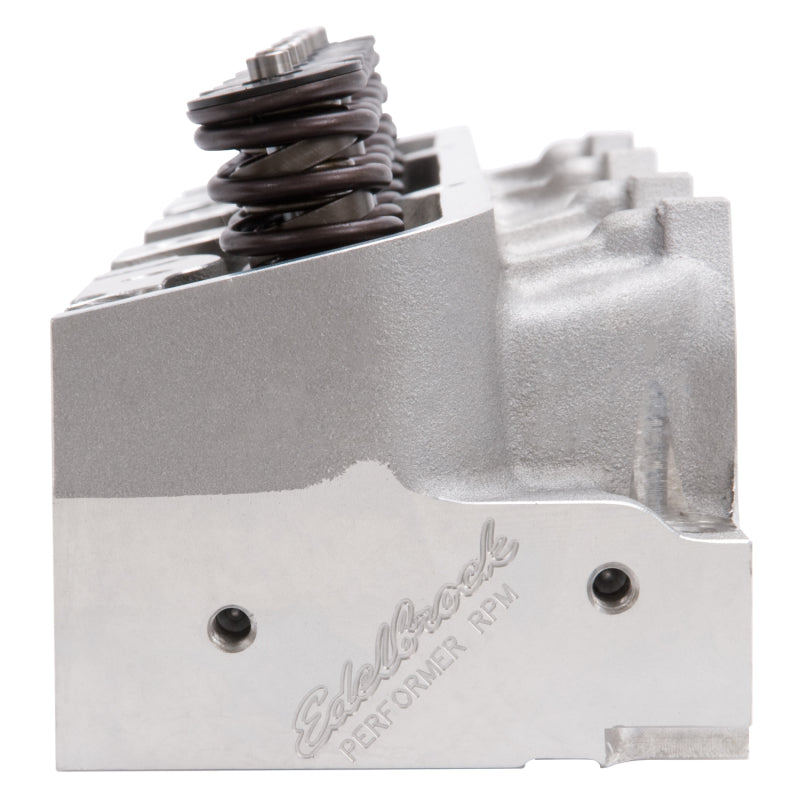

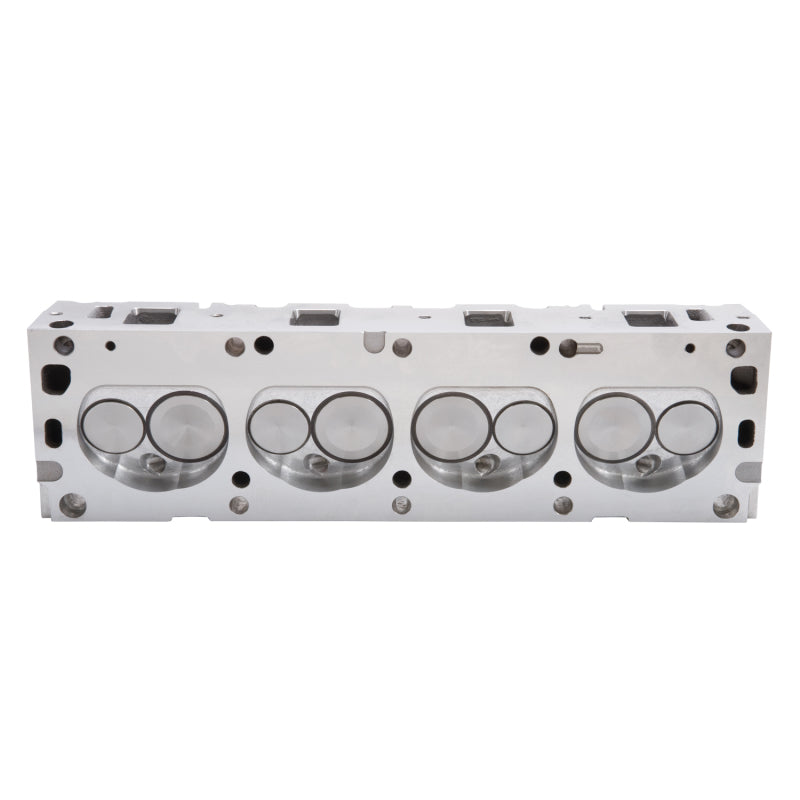

Edelbrock Cylinder Head BB Ford Performer RPM FE 427 Low/ Med Riser

Cylinder Head Specifications: Combustion chamber volume: 72cc / 76cc; Intake runner volume: 170cc; Exhaust runner volume: 125cc; Intake valve diameter: 2.09"; Exhaust valve diameter: 1.66"; Valve stem diameter: 3/8"; Valve guides: Manganese bronze; Deck thickness: 5/8"; Valve spring diameter: 1.55"; Valve spring maximum lift: .600"; Pushrod diameter: 3/8"; Valve angle: 13°; Exhaust port location: Stock; Spark plug fitment: 14mm x 3/4 reach, gasket seat. INSTALLATION NOTE: Match with Edelbrock head gasket sets. 76cc heads have vertical bolt pattern only, 390 GT exhaust will not fit. Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. Deck thickness: 5/8". IMPORTANT NOTES: Direct bolt-on heads for 1961-76 390-427-428 Fords. 428 Cobra Jet-sized valves promote excellent flow for streetable power. #60089 can be machined to accept 2.19" intake and 1.73" exhaust valves. Rocker shaft stud kit #6009 provides better rocker shaft retention and is highly recommended for use with Edelbrock FE heads. It eliminates wearing of the threads and the possibility of bottoming the rocker shaft bolts in the head. Intake and exhaust CC values are projected if using Edelbrock valves, and equivalent valve job and bowl blend. Edelbrock FE heads do not have the bolt pattern to accommodate the stock GT 390 exhaust manifolds. Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. Replacement valve part numbers are for sets of 8. Deck thickness, 5/8". #6009 rocker shaft stud kit recommended.
Installation Instructions
Installation Instructions
Warranty


This Part Fits:

Year	Make	Model	Submodel
1963	Ford	300	Base
1963-1968	Ford	Country Sedan	Base
1963-1968	Ford	Country Squire	Base
1964-1968	Ford	Custom	Base
1965-1968	Ford	Custom 500	Base
1965-1967,1969	Ford	Fairlane	500
1966-1967	Ford	Fairlane	500XL
1964-1967,1969	Ford	Fairlane	Base
1963	Ford	Ford 300	Base
1963-1967	Ford	Galaxie	Base
1965-1968	Ford	Galaxie 500	Base
1963-1964	Ford	Galaxie 500	Sunliner
1963-1964	Ford	Galaxie 500	Victoria
1965-1968	Ford	Galaxie 500	XL
1964-1965	Ford	GT40	Base
1966-1967,1969	Ford	GT40	MK III
1965-1968	Ford	LTD	Base
1963-1968	Ford	Ranch Wagon	Base
1963-1967	Ford	Thunderbird	Base
1967	Mercury	Brougham	Base
1964-1967	Mercury	Caliente	Base
1966-1967	Mercury	Capri	Base
1963-1967	Mercury	Colony Park	Base
1964-1965	Mercury	Comet	202
1964-1969	Mercury	Comet	Base
1963-1967	Mercury	Commuter	Base
1968	Mercury	Cougar	Base
1968	Mercury	Cougar	XR-7
1964-1969	Mercury	Cyclone	Base
1969	Mercury	Cyclone	CJ
1969	Mercury	Cyclone	Spoiler
1963-1967	Mercury	Marauder	Base
1967	Mercury	Marquis	Base
1964-1967	Mercury	Montclair	Base
1968-1969	Mercury	Montego	Base
1968-1969	Mercury	Montego	MX
1963-1967	Mercury	Monterey	Base
1966-1967	Mercury	Monterey	S-55
1964-1967	Mercury	Park Lane	Base
1964-1967	Mercury	Villager	Base
1966-1967	Mercury	Voyager	Base
