Edelbrock Supercharger Stage 1 - Street Kit 2007-2013 GM Gmt900 Ls Cp 4 8L 5 3L and 6 0L w/ Tuner

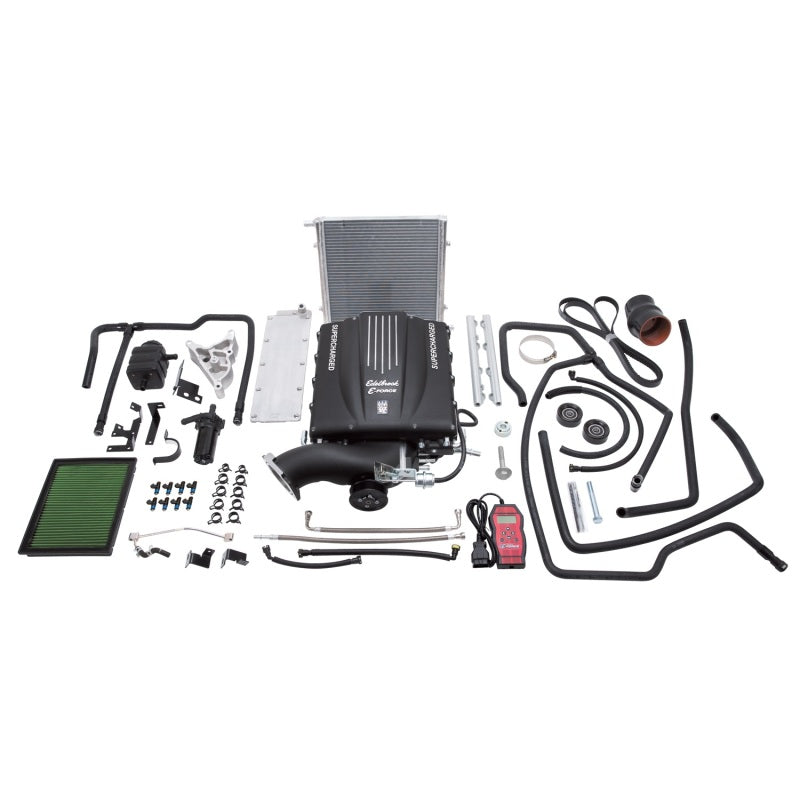

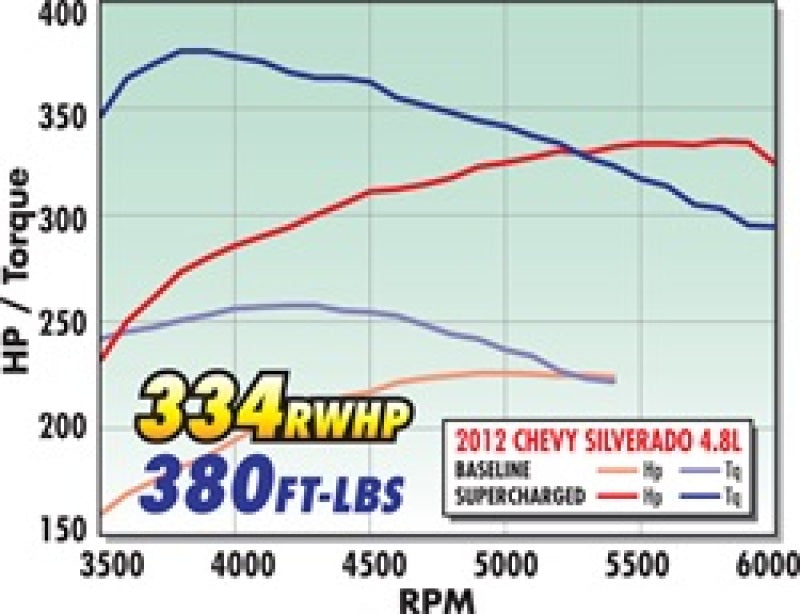

The Edelbrock supercharger Stage 1 Street system part #1578 is for 2007-13 Silverado and Sierra 1500 trucks. This supercharger system works with the 4.8L and 5.3L Gen III engines and increases the performance of the 4.8L engine to 334 horsepower and 380 ft-lbs of torque at the rear wheels and the 5.3L engine to 364 horsepower and 397 ft-lbs of torque at the rear wheels. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1578 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.
Installation Instructions
Material Safety Data Sheet


This Part Fits:

Year	Make	Model	Submodel
2007-2013	Chevrolet	Silverado 1500	LS
2007-2013	Chevrolet	Silverado 1500	LT
2007-2013	Chevrolet	Silverado 1500	LTZ
2007-2013	Chevrolet	Silverado 1500	WT
2010-2013	Chevrolet	Silverado 1500	XFE
2008-2013	GMC	Sierra 1500	SL
2007-2013	GMC	Sierra 1500	SLE
2007-2013	GMC	Sierra 1500	SLT
2007-2013	GMC	Sierra 1500	WT
2010-2013	GMC	Sierra 1500	XFE
