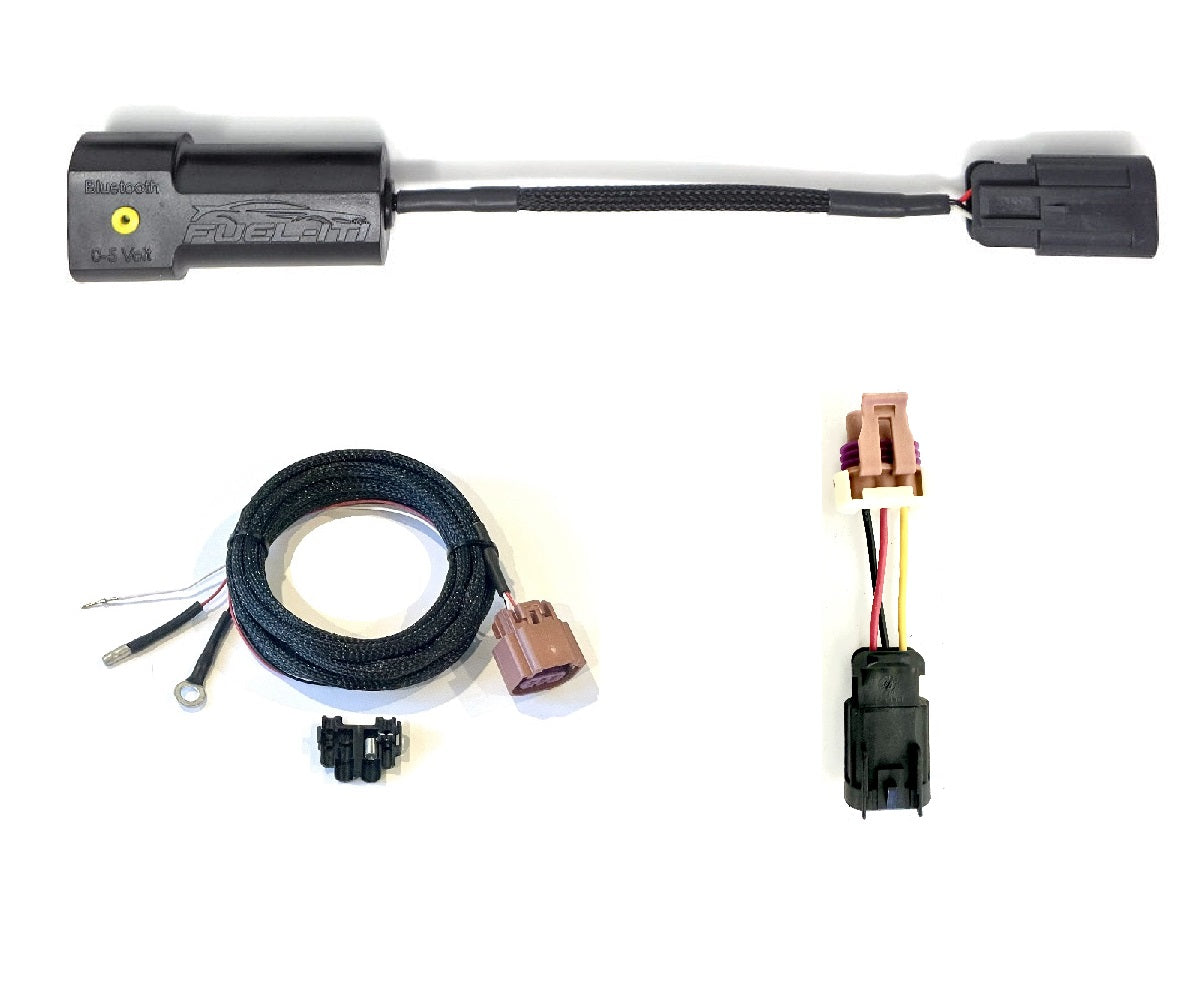

This is the complete plug and play solution for adding a Bluetooth compatible analyzer to your Continental flex-fuel sensor.
*Note: Fuel-It! analyzers are NOT compatible with DSX flex fuel kits.
All of our Bluetooth Ethanol Analyzers now include the optional 0-5V analog output, .5-4.5V analog output, or 50-150hz raw signal output in the same unit!

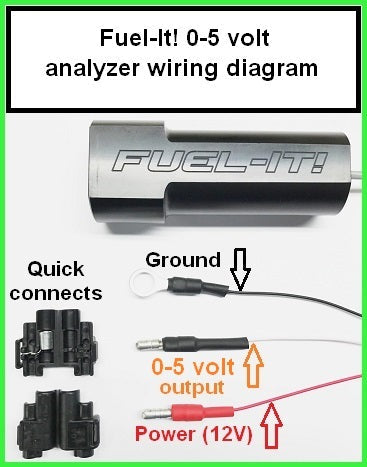

- Includes 0-5 volt linear output
- 0 volts = 0% ethanol
- 1 volt = 20% ethanol
- 2 volts = 40% ethanol
- 3 volts = 60% ethanol
- etc.
- Includes 0.5-4.5 volt linear output
- .5 volts = 0% ethanol
- 1.5 volts = 25% ethanol
- 2.5 volts = 50% ethanol
- 3.5 volts = 75% ethanol
- etc.

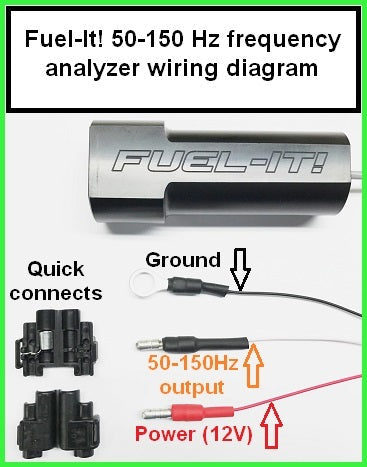

- Includes 50-150 raw signal linear output directly from the ethanol sensor
- 50hz = 0% ethanol
- 60hz = 10% ethanol
- 70hz = 20% ethanol
- 80hz = 30% ethanol
- etc.

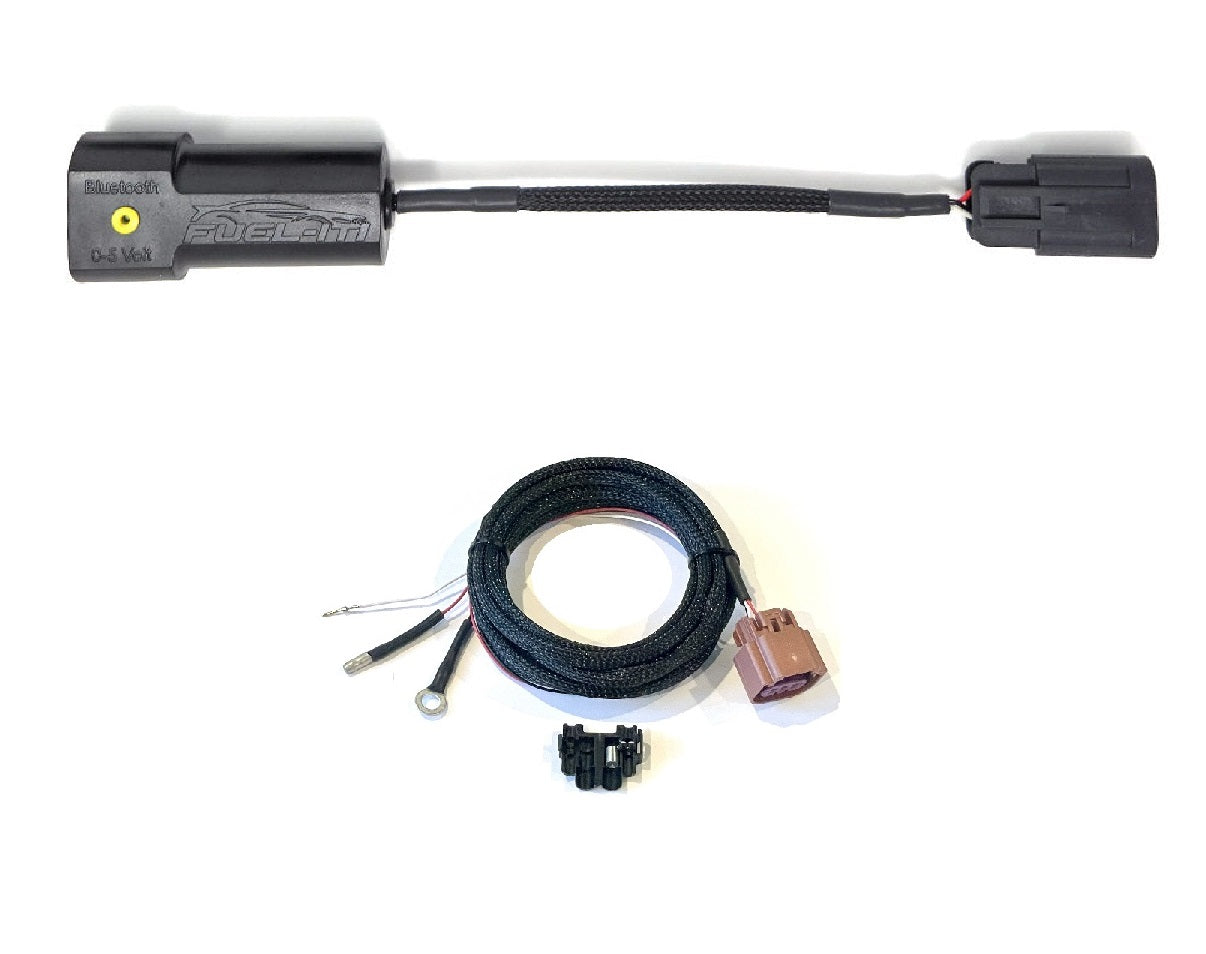

- All analyzer options include:
* Bluetooth output, analog output, and 50-150hz raw signal output
* Electrical connections for power and ground

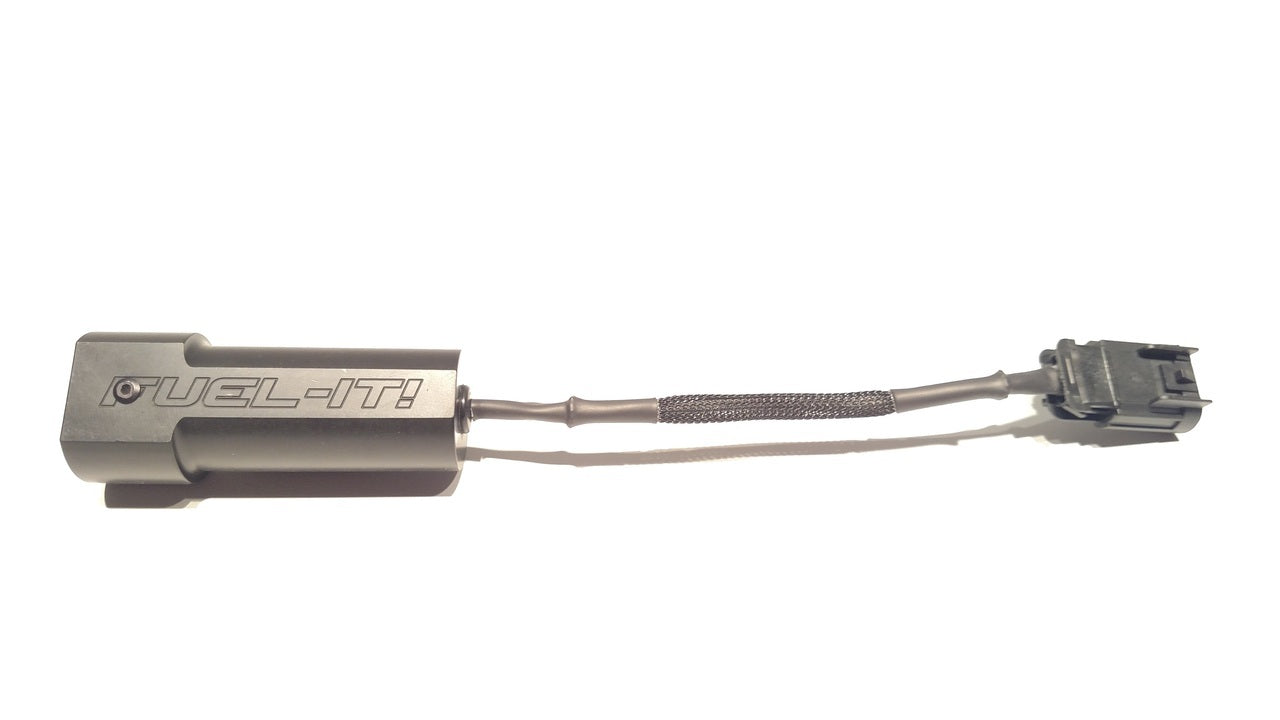

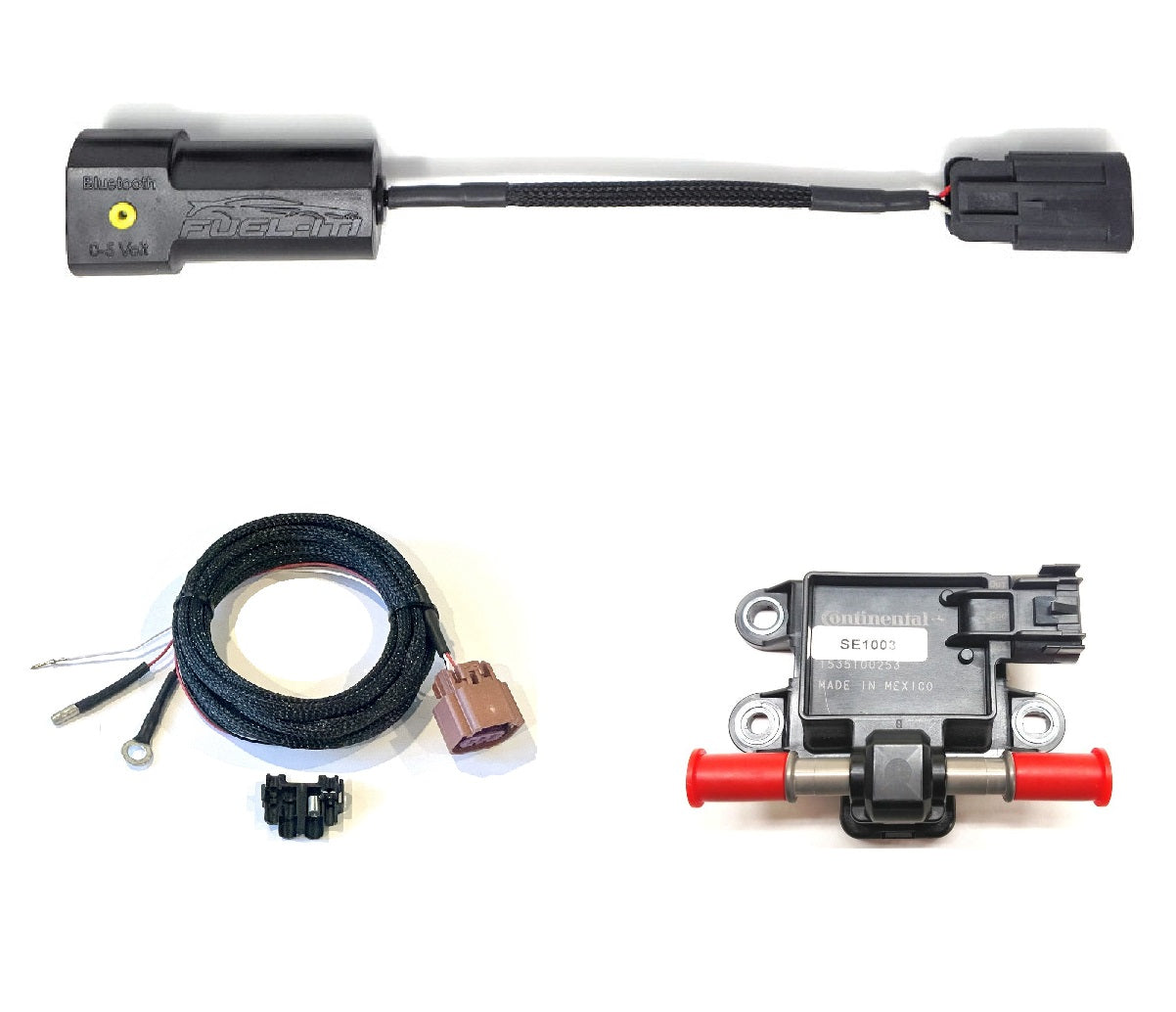

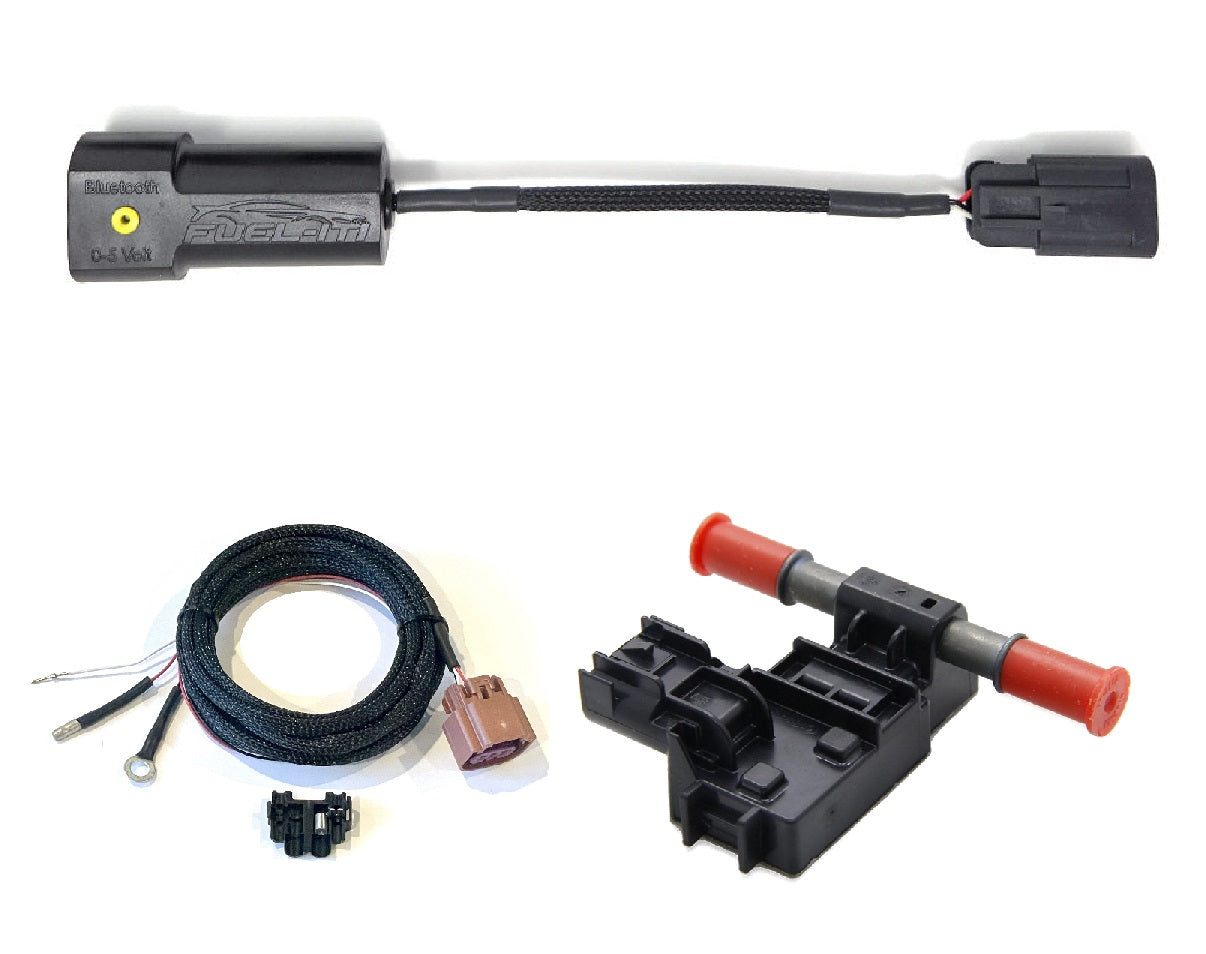

* Fuel-It! analyzer that plugs directly into the following ethanol sensors:
- Continental/GM/AC Delco Part #'s
- 13577394
- 13577429
- 13577379
- 13507128

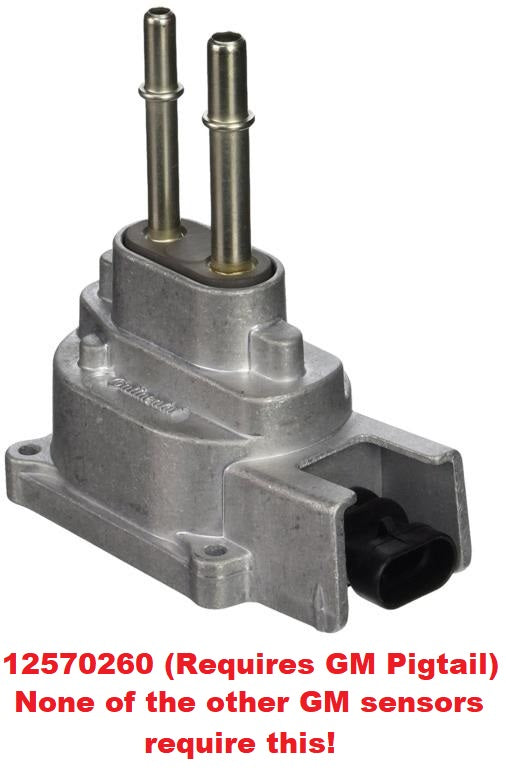

- Note: This is also compatible with the sensor part # 12570260 but it requires the optional adapter.
- Recommended Options:

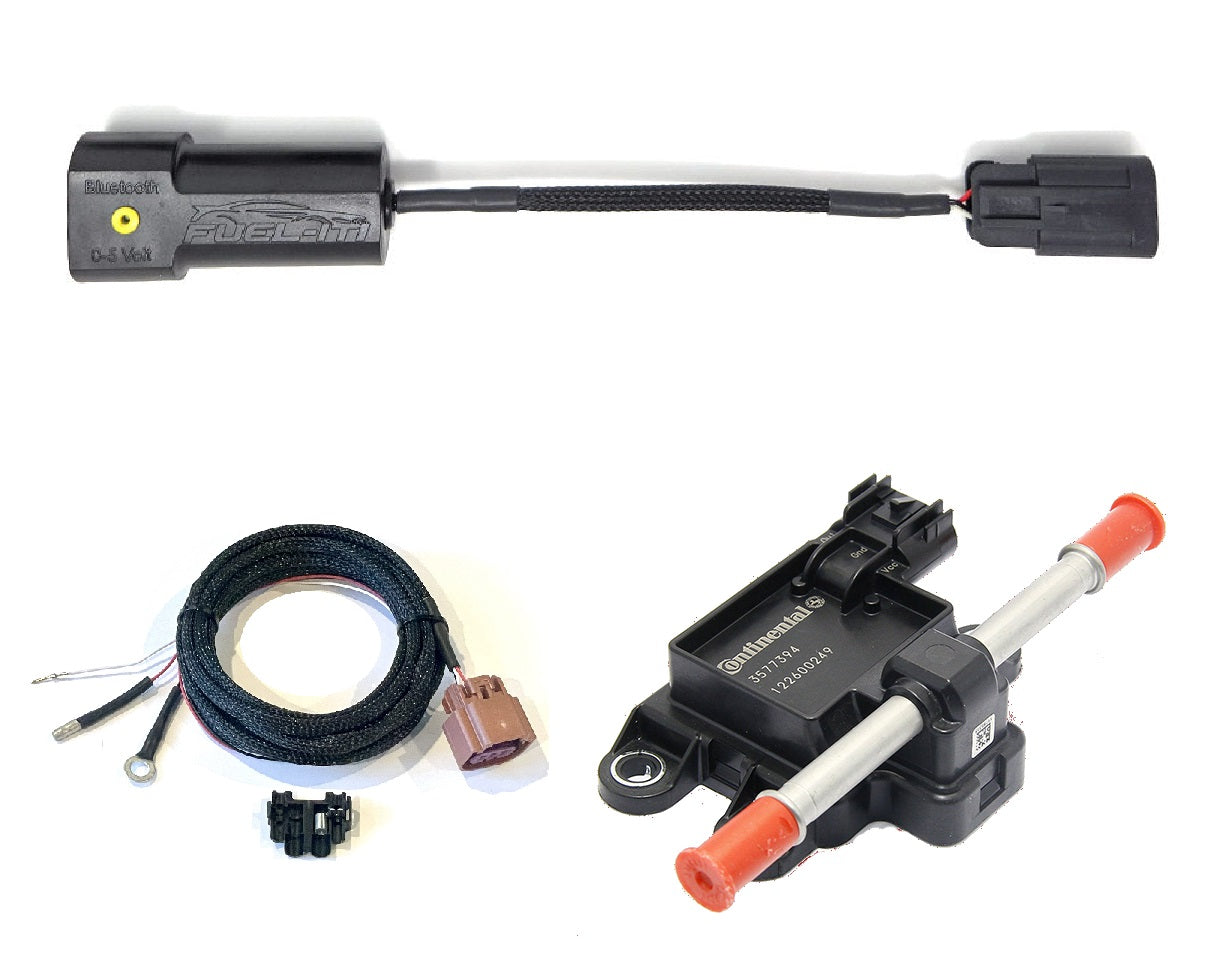

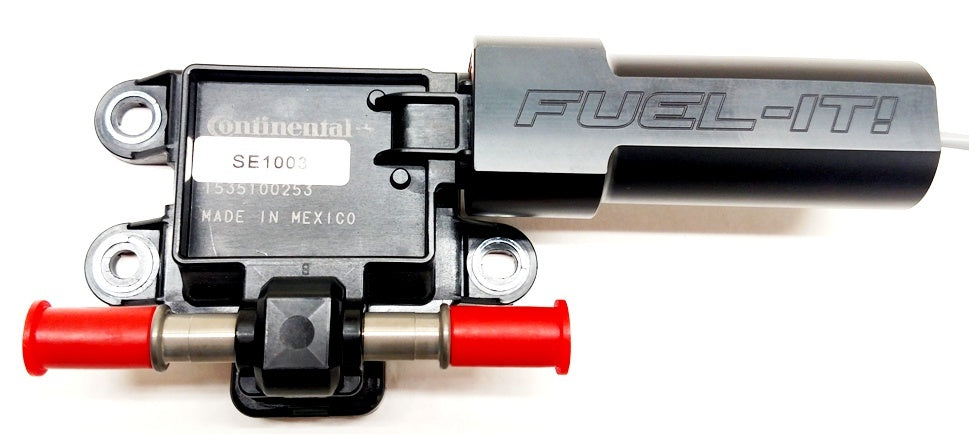

- Continental ethanol sensor
- Fuel-It! custom 3/8" Cam-Lock fitting with -6an push-on style fittings for socketless compatible hose.

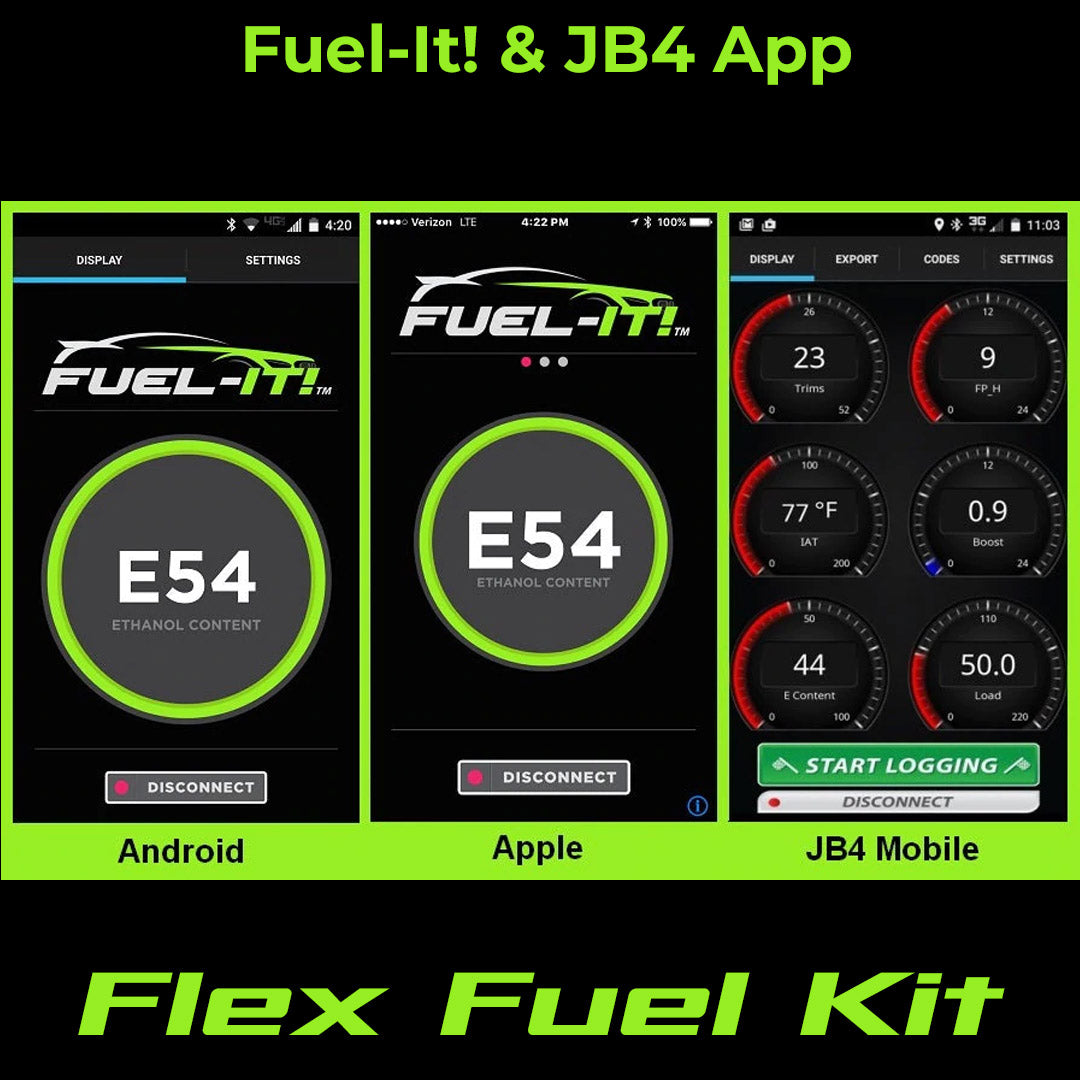

* To use our Bluetooth feature an additional 3rd party app for your Android or Apple phone must be downloaded and can be found here:
- If you are using an Apple product the app can be found by clicking here
- If you are using an Android product the app can be found by clicking here
+ Flex-Fuel sensor, fittings, and fuel lines sold separately.
