Hotchkis 70-81 Camaro/Firebird Tubular Lower A-Arms

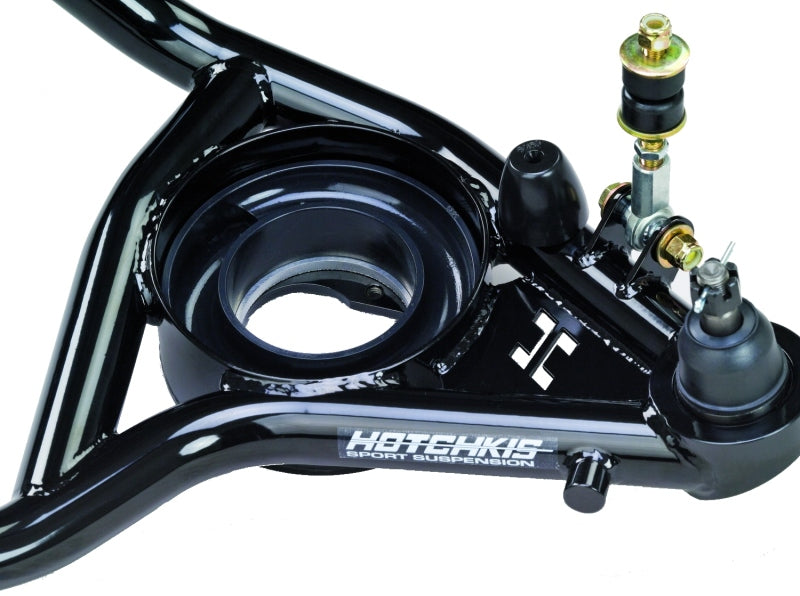

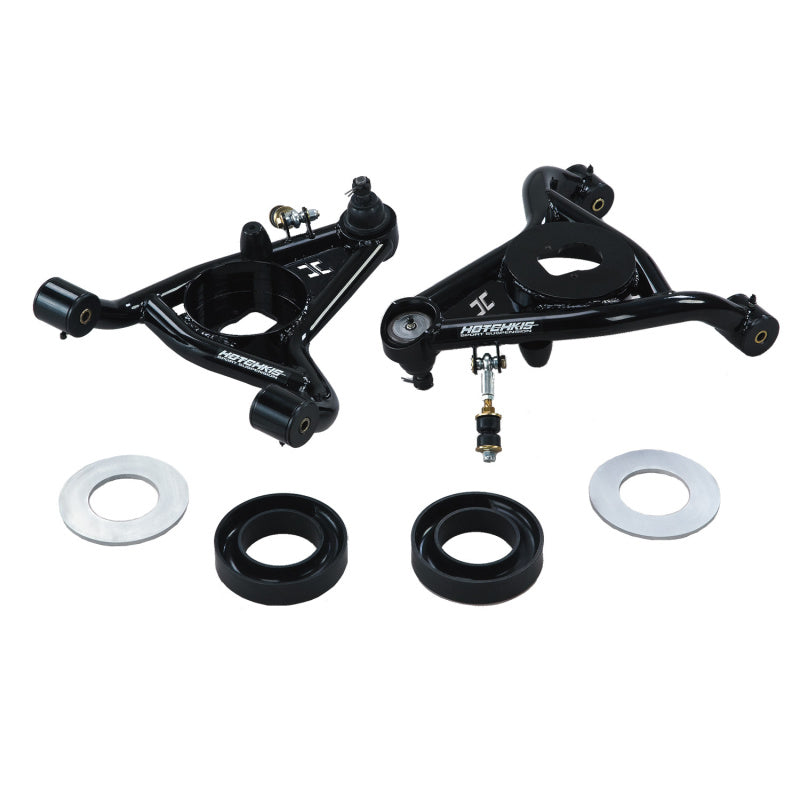

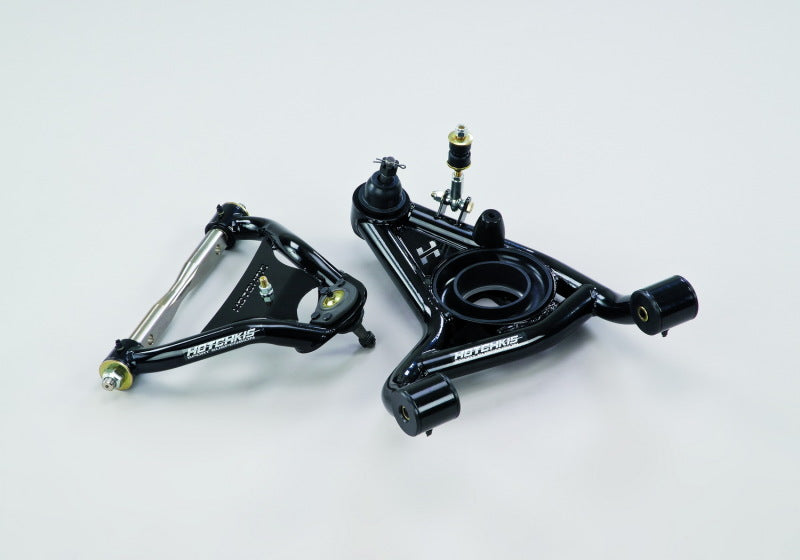

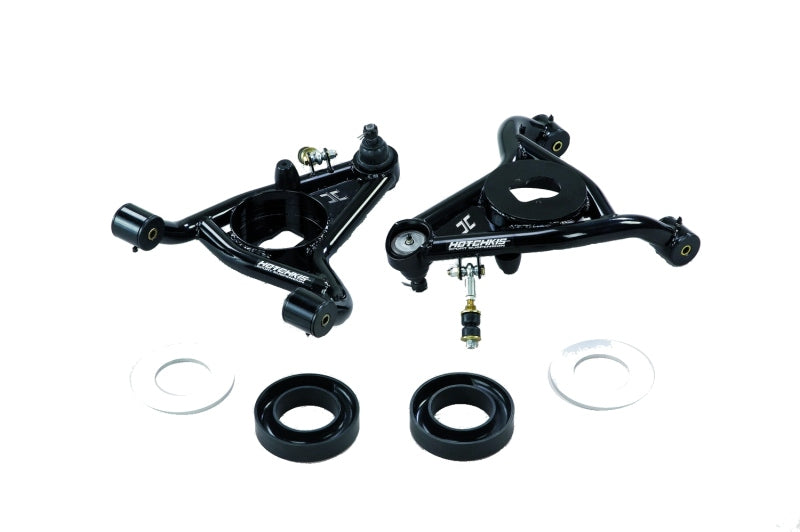

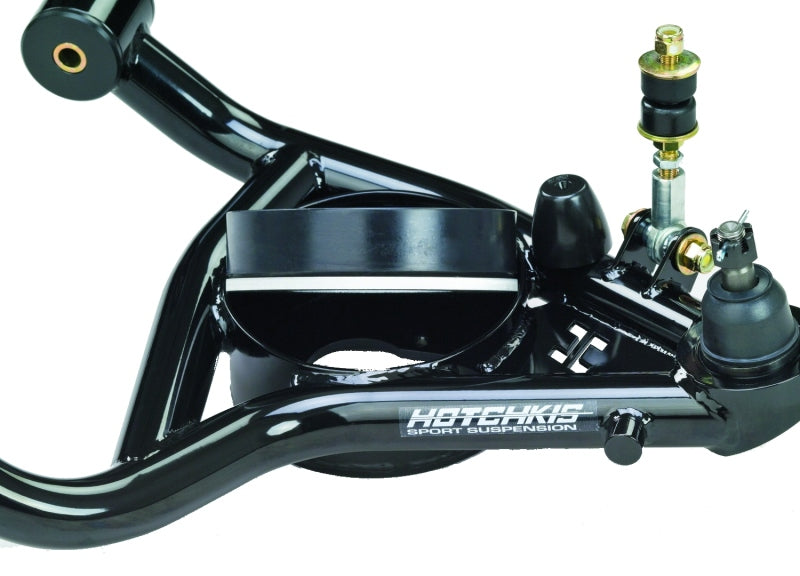

Install the Hotchkis Sport Suspension geometry corrected Tubular Lower A-Arms on your 70-81 Camaro or Firebird and gain vastly increased handling and control. These TIG-welded bolt-on have re positioned ball joints for increased caster and improved camber curve resulting in improved stability and traction. Adjustable shims offer ride height adjustment for ultimate performance and a great look regardless of engine and transmission combinations. Smooth operating Delrin bushings allow the arms to move through their travel easily. Finished in gloss black powder coat the arms are ready to install and are complete with ball joints bump stops ride height shims polyurethane coil spring locators and Delrin bushings. Exceptional handling performance when combined with the Hotchkis Sport suspension geometry corrected Tubular Upper A-Arms. New Lower Prices Features: Geometry corrected design. Built in - 0.6 deg of Camber 2 deg of Caster 100% TIG-welded 1.5 in. tubular steel construction. CNC machined inset spring cup. Precision aluminum ride height adjustment shims and polyurethane coil spring isolators. Easy to lubricate Delrin bushings. Lower ball joint installed. Laser cut Hotchkis logo Gloss black powder coat finish Made In USA Benefits: CAD designed and analyzed by FEA software for ultimate strength and efficiency. Increased structural rigidity due to CNC machined inset spring cup. Aluminum shims allow for .25 in. to .50 in. ride height adjustment. Additional shims available separately. Delrin bushings allow smooth operation with minimal deflection through travel range. Achievable specs when using 1106 upper control arm and 1108 lower control arm. MAX Caster with Uppers and Lowers = 9 deg MAX Camber with Uppers and Lowers = - 3.5 deg
Material Safety Data Sheet
Warranty
Installation Instructions
Certificate of Origin


This Part Fits:

Year	Make	Model	Submodel
1973	Buick	Apollo	Base
1970-1980	Chevrolet	Camaro	Base
1979-1981	Chevrolet	Camaro	Berlinetta
1973-1978	Chevrolet	Camaro	LT
1976-1978	Chevrolet	Camaro	LT Rally Sport
1976-1980	Chevrolet	Camaro	Rally Sport
1970-1973,1975	Chevrolet	Camaro	RS
1981	Chevrolet	Camaro	Sport
1970-1972	Chevrolet	Camaro	SS
1970-1974,1977-1981	Chevrolet	Camaro	Z28
1975-1979	Chevrolet	Nova	Base
1976-1977	Chevrolet	Nova	Concours
1975,1978-1979	Chevrolet	Nova	Custom
1975	Chevrolet	Nova	LN
1975-1978	Chevrolet	Nova	Police
1977-1979	Chevrolet	Nova	Rally
1976	Chevrolet	Nova	SS
1970-1981	Pontiac	Firebird	Base
1970-1981	Pontiac	Firebird	Esprit
1970-1981	Pontiac	Firebird	Formula
1970-1981	Pontiac	Firebird	Trans Am
