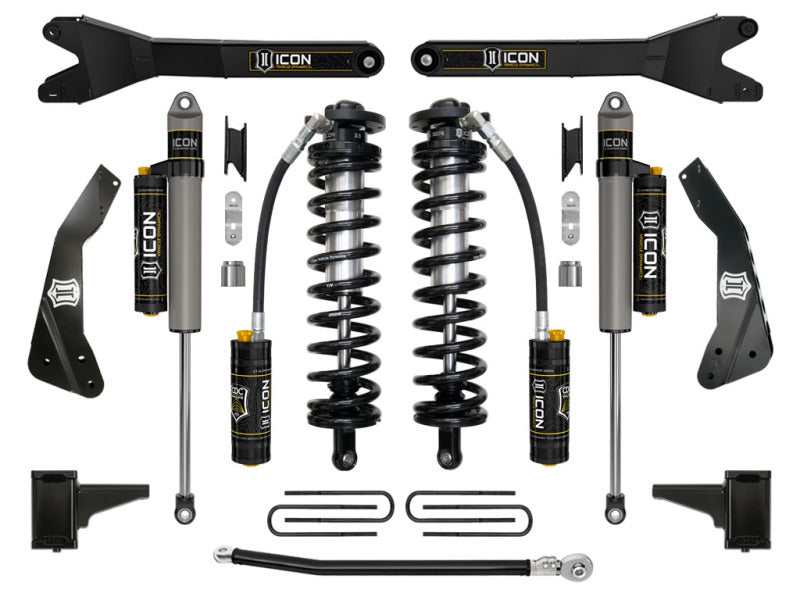

ICON 11-16 Ford F250/F350 4-5.5in Stage 4 Coilover Conversion System w/ Radius Arms

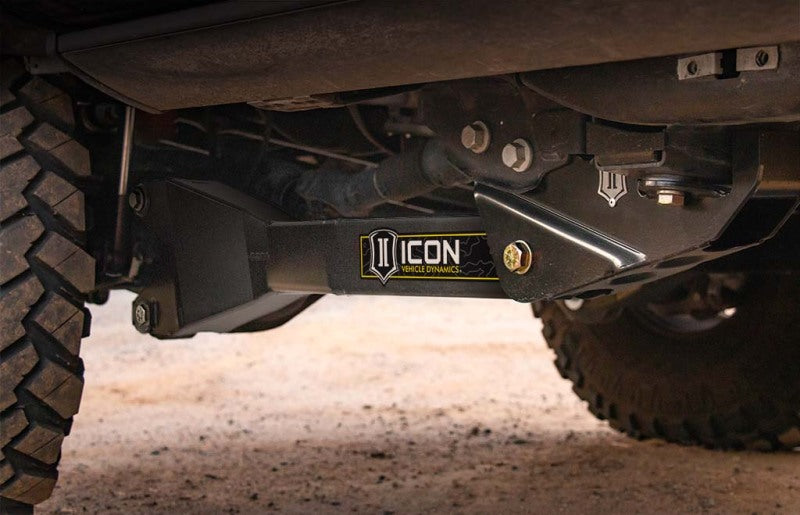

This Stage 4 system sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty Radius Arm System that feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm.

• Fabricated radius arms with drop brackets offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock
• Rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• Vehicle-specific shock valving provides unparalleled ride quality and control
• Eibach coil springs guaranteed for life against sagging or breakage
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• FK Rod End bearings for extended longevity and minimal deflection
• Decreased body roll and improved on and off-road ride dynamics
• Ride height adjustable coilovers (4-5.5" of lift over stock)
• Coilover conversion allows for addition of secondary shock
• Increased wheel travel and ride quality over stock
• Bolt-in system fits in OE coil bucket location
• Shocks are fully rebuildable and revalveable

This Part Fits:
