ICON 11-16 Ford F250/F350 7in Stage 5 Suspension System w/ Radius Arms

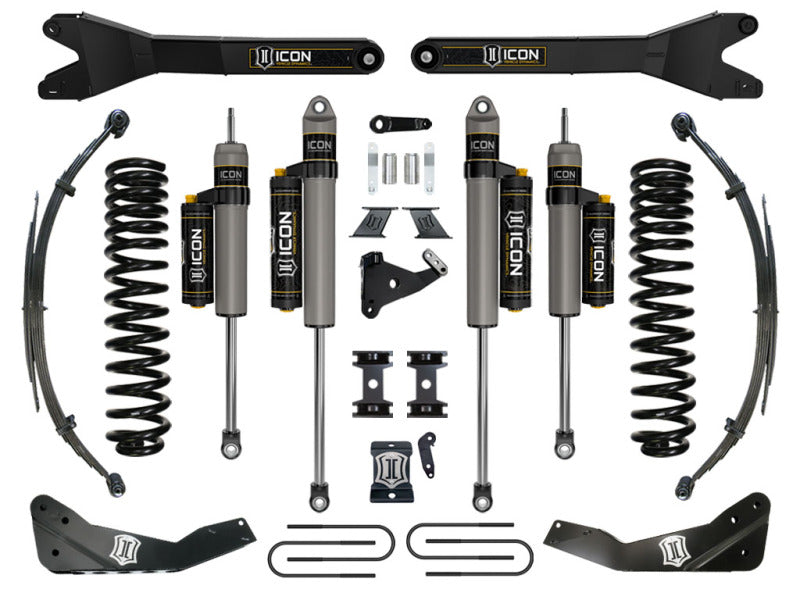

ICON’s 7” Suspension System for the 2011-2016 Super Duty yields enough lift to clear 37” tires while providing excellent ride characteristics across a wide variety of terrain on and off-road. Each component of this suspension system has been specifically engineered to work in union with other ICON parts to extract maximum performance out of the vehicle. Our Stage 5 System is comprised of 7” lift dual rate coil springs, fabricated radius arm drop mounts with brushed stainless badges, track bar drop bracket, bump stop extensions, sway bar links, a forged pitman arm, brake line brackets, rear 5" lift progressive rate leaf springs w/ U-bolts, and 2.5 Aluminum Series piggyback reservoir front & rear shocks w/ CDCV. 2.5" reservoir shocks ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve upgrade is included in this stage for those desiring an easy way to tune the ride externally.

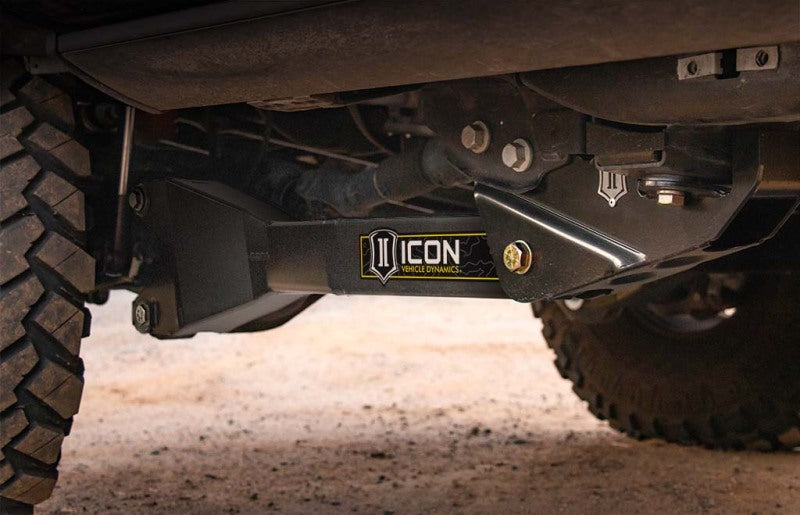

• Fabricated radius arms with drop brackets offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock
• Front and rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• ICON engineered dual rate coil springs with match tuned 2.5 Series reservoir shocks w/ CDCV
• Increased wheel travel and ride quality over stock with no change in towing capacity
• Rear progressive design leaf pack for smooth compliant ride
• Correctly positioned steering and track bar components
• No drive shaft modifications needed
• Decreased body roll
