ICON 14-18 Ram 2500 4WD 4.5in Stage 4 Suspension System

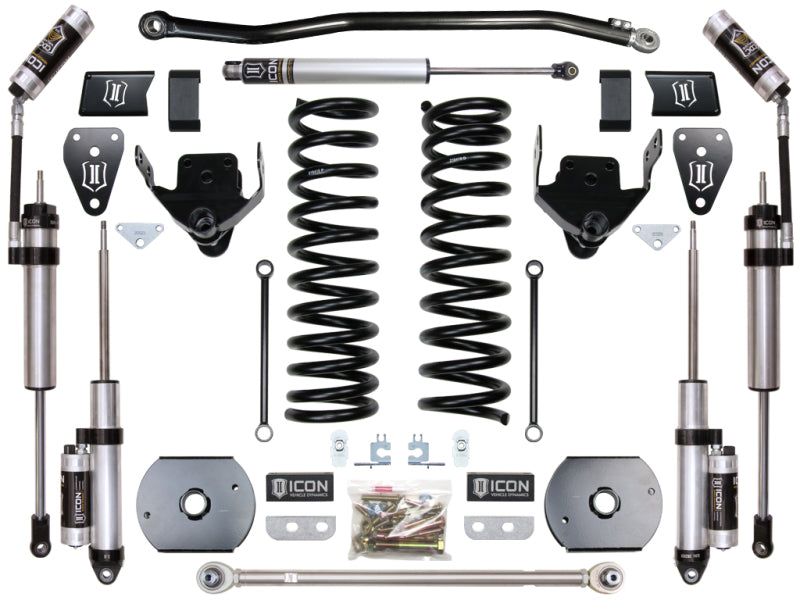

ICON Vehicle Dynamics suspension systems for the 2014-2018 Ram 2500 4WD were designed with exceptional performance and ride quality in mind. This Stage 4 system includes ICON-engineered 4.5” dual rate coil springs, high-strength laser cut bracketry, billet bump stop spacers, fabricated rear coil spacers, and all hardware necessary for a complete install. Vehicle-specific ICON 2.5 Aluminum Series remote reservoir shocks help deliver balanced performance front to rear, while CDC (Compression Damping Control) Valve technology allows the user to adjust compression characteristics of the shocks with the turn of a knob. These features make this Stage 4 system a huge upgrade for 2014-2018 Ram 2500 4WD trucks that are in need of a comfortable on-road ride, but also require the ability to be used to their full potential during spirited off-road driving.

• ICON-engineered dual rate front coil springs deliver 4.5" of front lift and exceptional vehicle control over varying terrain
• Front and rear shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
• Vehicle specific tuned front and rear 2.5 Aluminum Series remote reservoir shocks provide superior damping and ride quality
• Vehicle specific tuned front and rear 2.5 Aluminum Series shocks provide superior damping and ride quality
• PTFE lined spherical track bar bearings eliminate bushing deflection for improved handling characteristics
• 2.0 Aluminum Series steering stabilizer helps control larger tires with increased steering damping
• Increased wheel travel and suspension performance over stock with no change in towing capacity
• Fabricated rear coil spacers provide 2" of rear lift and allow use of stock rear coil springs
• Precision CNC laser cut, fabricated radius arm drop brackets correct suspension geometry
• Allows use of larger, more aggressive wheel tire combinations up to 37" diameter
• Adjustable front and rear track bars realign axles and improve strength
• Level stance from front to rear of vehicle
