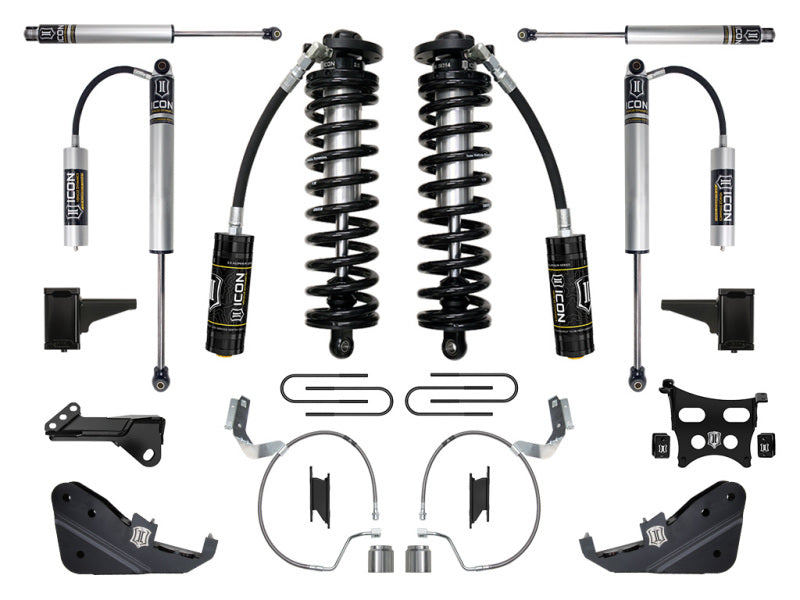

ICON 2023 Ford F250/F350 4-5.5in Stage 2 Coilover Conversion System

ICON's 4-5.5” Lift Stage 2 Coilover Conversion System features 2.5 Series remote reservoir coilovers that provide superb on-road comfort and off-road performance while at the same time allowing for end-user ride height adjustability. These bolt-in coilovers also allow the option to mount secondary shocks in the stock location, effectively doubling shock damping ability. Their remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Fabricated radius arm drop brackets correct suspension geometry and ensure proper wheel alignment with the OE radius arms. The fabricated track bar drop bracket allows the axle to be properly centered under the frame and reduces road feedback throughout the steering system with improved on- and off-road manners thanks to the elimination of bump steer. ICON’s dual opposing steering stabilizer kit featuring ICON 2.0 Aluminum Series shocks improves steering damping to better control undesirable steering feedback caused by larger tires. Heavy-duty fabricated 5" rear blocks and U-bolt kit lift the rear of the vehicle and are designed to withstand heavy towing/hauling duty as well as the stresses of aggressive off-road use. ICON 2.0 Aluminum Series remote reservoir rear shocks feature a vehicle specific tune for improved vehicle handling and excellent ride quality on- and off-road. The included box kit includes fabricated front sway bar drop brackets to prevent bind, heavy-duty aluminum bump stop spacers, and high quality stainless steel extended brake lines.

• Corrosion resistant anodized steering stabilizer and rear shock bodies with 5/8" shafts
• Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
• Radius arm drop brackets correct geometry and caster for optimal alignment specs
• Track bar drop bracket reduces track bar angle and corrects bump steer geometry
• Ride height adjustable ICON 2.5 Series coilovers provide 4-5.5" of front lift
• Vehicle-specific shock valving provides unparalleled ride quality and control
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• Dual steering stabilizer kit offers increased steering damping
• Lifetime guarantee against coil spring breakage or sagging
• ICON 2.0 Aluminum Series remote reservoir rear shocks
• Increased wheel travel and ride quality over stock
• Bolt-in system fits in OE coil bucket location
• Fits 2023-2026 F-250 / F-350 4WD applications
• Shocks are fully rebuildable and re-tunable
• Stainless steel braided front brake lines
• Heavy-duty fabricated rear lift blocks
