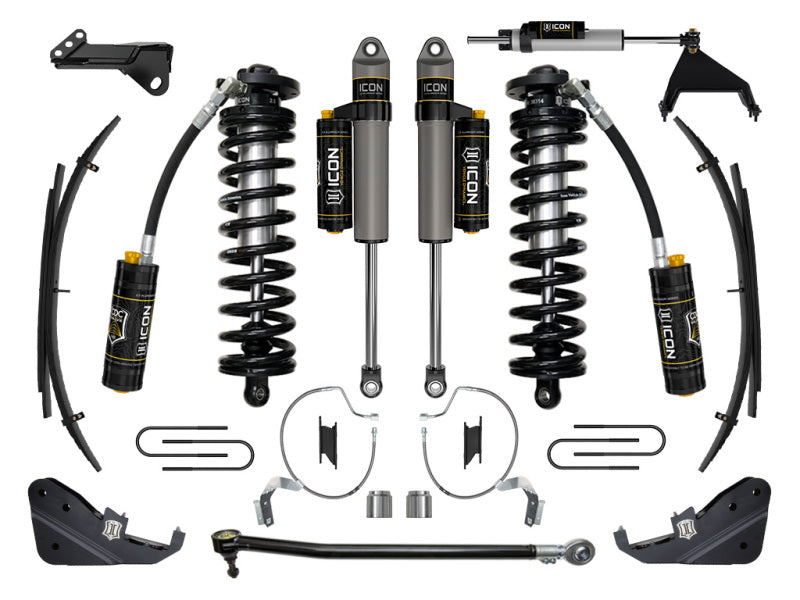

ICON 2023 Ford F250/F350 4-5.5in Stage 5 Coilover Conversion System w/ Expansion Packs

ICON's 4-5.5” Lift Stage 5 Coilover Conversion System features 2.5 Series remote reservoir CDCV coilovers that provide superb on-road comfort and off-road performance while at the same time allowing for end-user ride height adjustability. These bolt-in coilovers also allow the option to mount secondary shocks in the stock location, effectively doubling shock damping ability. Their remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Fabricated radius arm drop brackets correct suspension geometry and ensure proper wheel alignment with the OE radius arms. The fabricated track bar drop bracket allows the axle to be properly centered under the frame and reduces road feedback throughout the steering system with improved on- and off-road manners thanks to the elimination of bump steer. An adjustable track bar allows for on-vehicle adjustment to fine tune track alignment as well as eliminating the deflective OE track bar bushings for an overall more rigid unit to improve the vehicles handling characteristics.

• Front and rear shocks are ICON CDCV equipped for 10 settings of external compression damping adjustment
• ICON 2.5 Centerline steering stabilizer kit with piggyback reservoir offers increased steering damping
• Adjustable track bar allows fine tuning of track alignment and improves handling characteristics
• Corrosion resistant hard anodized steering stabilizer and rear shock bodies with 7/8" shafts
• Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
• Radius arm drop brackets correct geometry and caster for optimal alignment specs
• Track bar drop bracket reduces track bar angle and corrects bump steer geometry
• Ride height adjustable ICON 2.5 Series coilovers provide 4-5.5" of front lift
• Vehicle-specific shock valving provides unparalleled ride quality and control
• Leaf spring expansion packs improve ride quality and provide 2" of rear lift
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• Lifetime guarantee against coil spring breakage or sagging
• ICON 2.5 Aluminum Series piggyback reservoir rear shocks
• Increased wheel travel and ride quality over stock
• Bolt-in system fits in OE coil bucket location
• Fits 2023-2026 F-250 / F-350 4WD applications
• Shocks are fully rebuildable and re-tunable
• Stainless steel braided front brake lines
