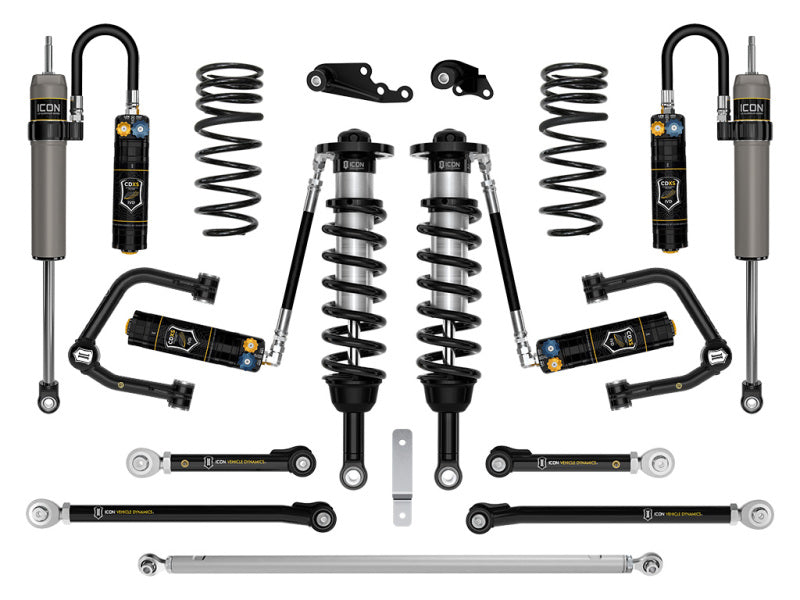

ICON 2024 Lexus GX550 1.25-3in Stage 9 Suspension System CDXS - Tubular

The included ICON tubular upper control arm kit is designed to improve the overall performance of the Lexus GX550 with corrected front-end geometry, built in additional caster, and improved suspension component clearance. Additionally, replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. 2” of rear lift height over stock allows a for level stance front to rear. The ICON Billet Adjustable Rear Track Bar helps re-center the rear axle and double adjuster rod end threads allow easy “on-vehicle” fine adjustment of track bar length without requiring removal or disassembly of the track bar. ICON tubular rear upper and lower links employ dual-durometer greaseless bushings at one end, and massive FK rod ends at the other to provide the best combination of free articulation while isolating and damping road noise and vibrations. ICON 2.5 Aluminum Series CDXS remote reservoir rear shocks with integrated bump zones provide improved shock damping ability and utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2024-2026 Lexus GX550 Stage 9 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

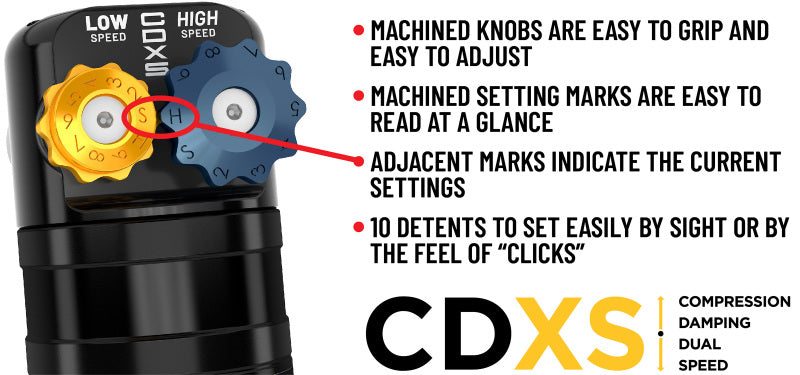

• All shock absorbers equipped with ICON CDXS for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
• On-vehicle adjustable billet aluminum rear track bar properly centers rear axle while also improving rear suspension performance
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers
• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Tubular rear upper and lower links improve rear end articulation and allow for pinion angle adjustment
• Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• Adjustable coilovers provide 1.25-3" front lift height over stock
• FK Rod End bearings for extended longevity and minimal deflection
• Increased wheel travel and improved ride quality over stock
• 6061 aircraft grade aluminum CNC machined components
