ICON 2024 Toyota Land Cruiser 250 Series 1.25-3in List Stage 10 Suspension System - Billet

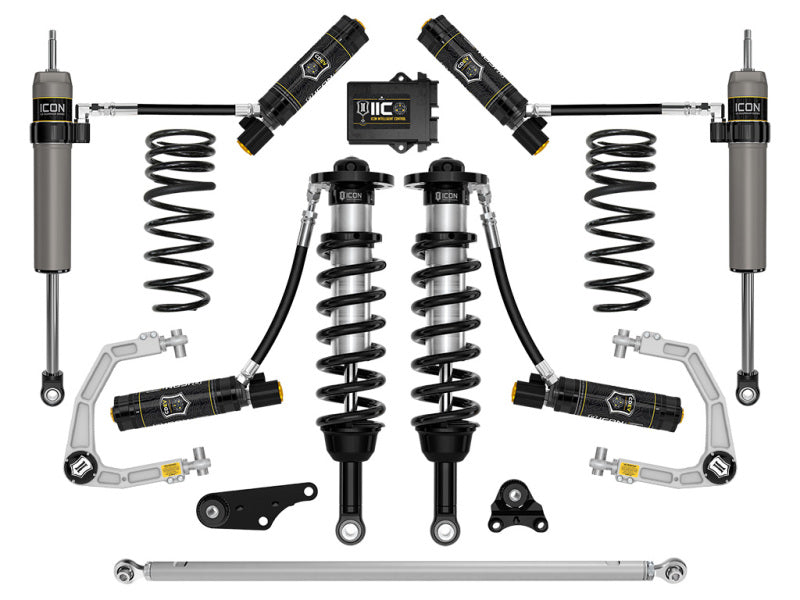

ICON Vehicle Dynamics 2024-2026 Toyota Land Cruiser 250 Series suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road. The Stage 10 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring CDEV equipped remote reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are height adjustable from 1.25-3” of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. The combination of front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevent CV bind. Additionally, polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load.

• ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• On-vehicle adjustable billet aluminum rear track bar properly centers rear axle while also improving rear suspension performance
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers
• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• Adjustable coilovers provide 1.25-3" front lift height over stock
• FK Rod End bearings for extended longevity and minimal deflection
• Increased wheel travel and improved ride quality over stock
• 6061 aircraft grade aluminum CNC machined components

This Part Fits:
