ICON 21-24 Ford F150 4WD 2.75-3.5in Stage 4 Suspension System - Billet CDCV

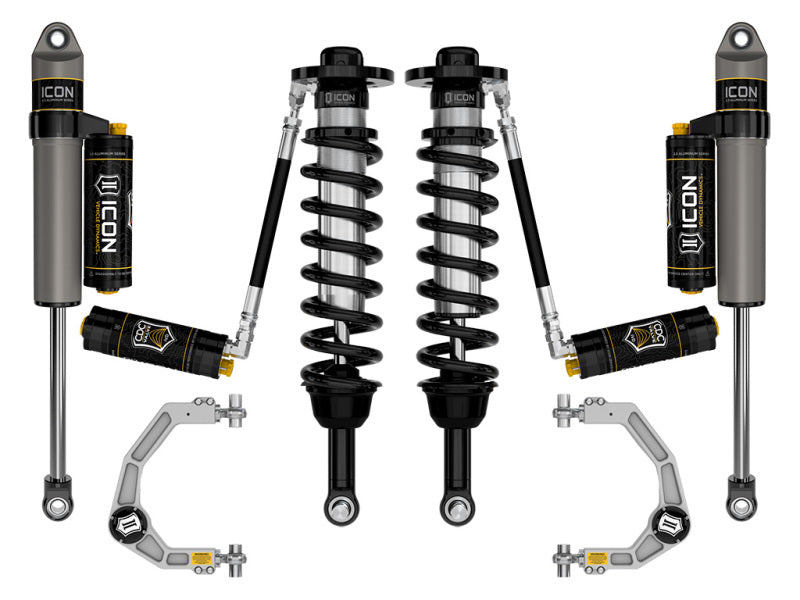

ICON Vehicle Dynamics 2021-2026 Ford F-150 4WD suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. This Stage 4 system includes vehicle-specific tuned 2.5” coilover shocks featuring CDCV equipped remote reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable for 2.75-3.5” of front lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. Billet aluminum Delta Joint PRO upper control arms on the F-150 not only add strength and durability, but help retain factory alignment spec range, offer caster/camber adjustment, and allow for the extra lift height this system provides. ICON 2.5 Aluminum Series CDCV piggyback reservoir rear shocks utilize a vehicle-specific valving and offer increased damping and head dissipation, balancing the performance of the truck from front to rear. The included ICON CDC Valves are externally adjustable valves that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. The ICON Vehicle Dynamics 2021-2026 F-150 4WD Stage 4 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

• Billet Upper Control Arms with Delta Joint Pro ball joints for added strength, durability, and alignment spec range with on-vehicle adjustability
• All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
• 2.5 Aluminum Series piggyback reservoir rear shocks with 7/8" hardened chromed steel shafts
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• Increased wheel travel and ride quality over stock with no change in towing capacity
• 2.5 Series front coilovers with remote reservoirs for improved shock cooling
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• Adjustable coilovers offer 2.75-3.5" of front lift height over stock
• 100% Bolt-on system - no cutting or welding necessary for install
• FK rod end bearings for extended longevity and minimal deflection
• 6061 Aircraft grade aluminum CNC machined components
• High strength alloy CNC machined lower bar pin
