ICON 21-24 Ford F150 4WD 3.5-(Dsl) 4.5in Stage 1 Suspension System - Billet UCA

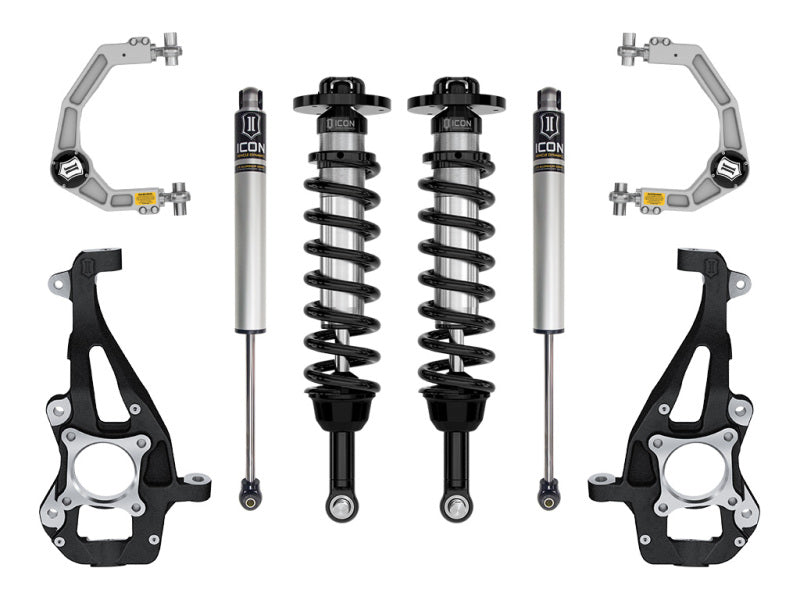

ICON Vehicle Dynamics 2021-2026 Ford F-150 4WD suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. To achieve this, these systems include high-strength CNC machined ductile iron steering knuckles that replicate the suspension geometry of the F-150 Tremor and are effectively a Tremor “conversion” for your F-150 4WD. This Stage 1 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable for 3.5-4.5” of front lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. Their combination with the ICON steering knuckles also allows for a 20% increase in wheel travel compared to other ICON F-150 coilover kits. Billet aluminum Delta Joint PRO upper control arms on the F-150 not only add strength and durability, but help retain factory alignment spec range, offer on-vehicle caster/camber adjustment, and allow for the extra lift height this system provides. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2021-2026 F-150 4WD Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

• Billet Upper Control Arms with Delta Joint Pro ball joints for added strength, durability, and alignment spec range with on-vehicle adjustability
• 20% increase in front wheel travel and improved ride quality over stock with no change in towing capacity
• 2.0 Aluminum Series internal reservoir rear shocks with 5/8" hardened chromed steel shafts
• High strength ductile iron steering knuckles replicate F-150 Tremor suspension geometry
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• Adjustable coilovers offer 3.5-4.5" of front lift height over stock
• FK rod end bearings for extended longevity and minimal deflection
• 6061 Aircraft grade aluminum CNC machined components
• High strength alloy CNC machined lower bar pin
