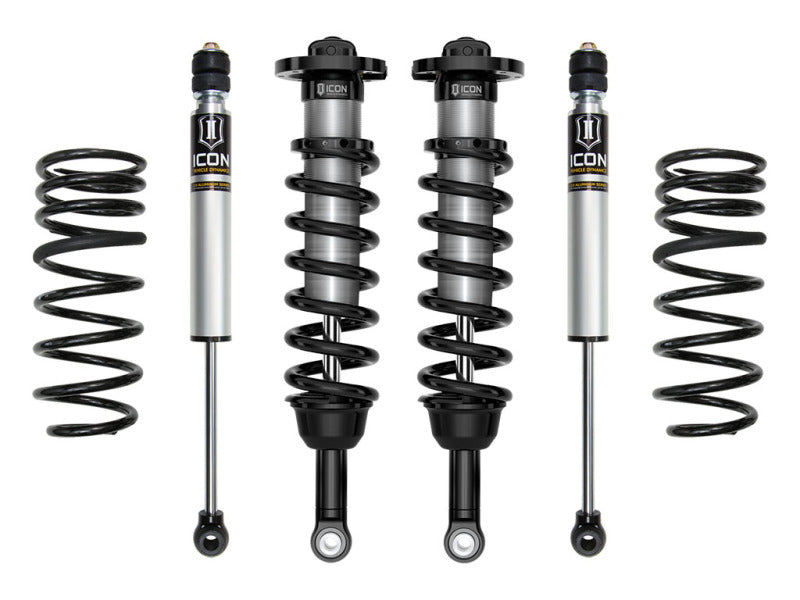

This Stage 1 system features the 2023-2026 Toyota Sequoia VS 2.5 Series internal reservoir front coilovers with a vehicle specific shock length to allow compatibility with the stock front upper control arms found on the Sequoia TRD Pro. These adjustable coilovers allow up to 1-2.5” of front lift height adjustability over stock, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible with the OE front upper control arms along with superior ride quality and suspension performance both on- and off-road.
Installation InstructionsInstallation InstructionsInstallation Instructions
- Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
- 2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance
- 2.5 Series front coilovers with internal reservoirs for superior damping and vehicle control
- Application specific coilover length allows use with stock Sequoia TRD Pro UCAs
- Allows for increased wheel travel without overstressing OE components
- Adjustable front ride heights from 1-2.5” of front lift over stock
- All ICON shock absorbers are fully rebuildable and re-tunable
- Vehicle specific design for 2023-2026 Toyota Sequoia TRD Pro
This Part Fits:
| Year |
Make |
Model |
Submodel |
| 2023-2026 |
Toyota |
Sequoia |
TRD Pro |
