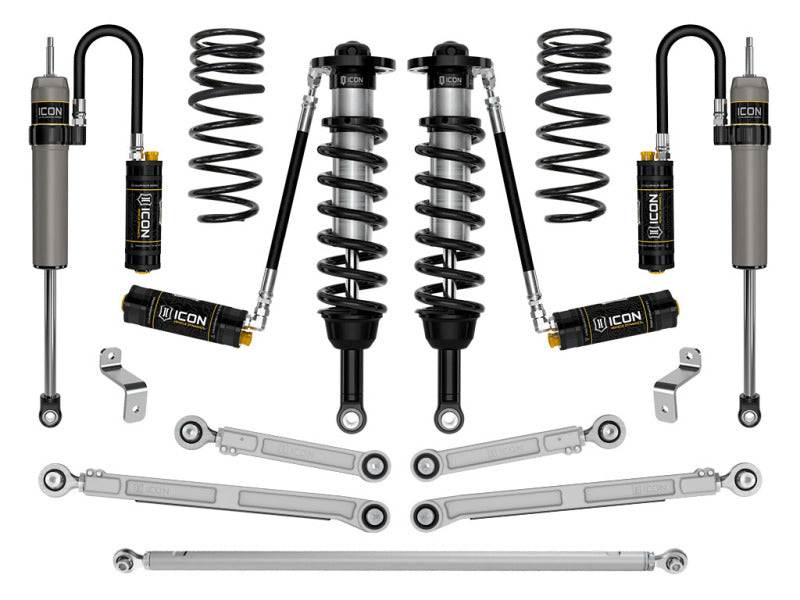

This Stage 7 system features the 2023-2026 Toyota Sequoia VS 2.5 Series CDCV remote reservoir front coilovers with a vehicle specific shock length to allow compatibility with the stock front upper control arms found on the Sequoia TRD Pro. These adjustable coilovers allow up to 1-2.5” of front lift height adjustability over stock, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible with the OE front upper control arms along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. The included ICON CDC Valves are externally adjustable valves that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.
Installation InstructionsInstallation InstructionsInstallation InstructionsInstallation InstructionsInstallation InstructionsInstallation InstructionsInstallation Instructions
- 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
- All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
- On-vehicle adjustable rear track bar properly centers rear axle while also improving rear suspension performance
- Billet rear upper and lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
- 2.5 Aluminum Series rear remote reservoir shocks provide increased performance and balanced tune with coilovers
- Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
- Application specific coilover length allows use with stock Sequoia TRD Pro UCAs
- Allows for increased wheel travel without overstressing OE components
- Adjustable front ride heights from 1-2.5” of front lift over stock
- All ICON shock absorbers are fully rebuildable and re-tunable
- Vehicle specific design for 2023-2026 Toyota Sequoia TRD Pro
This Part Fits:
| Year |
Make |
Model |
Submodel |
| 2023-2026 |
Toyota |
Sequoia |
TRD Pro |
