Description
Power gains of up to 30hp and 45tq to the wheels with a stock Trax!

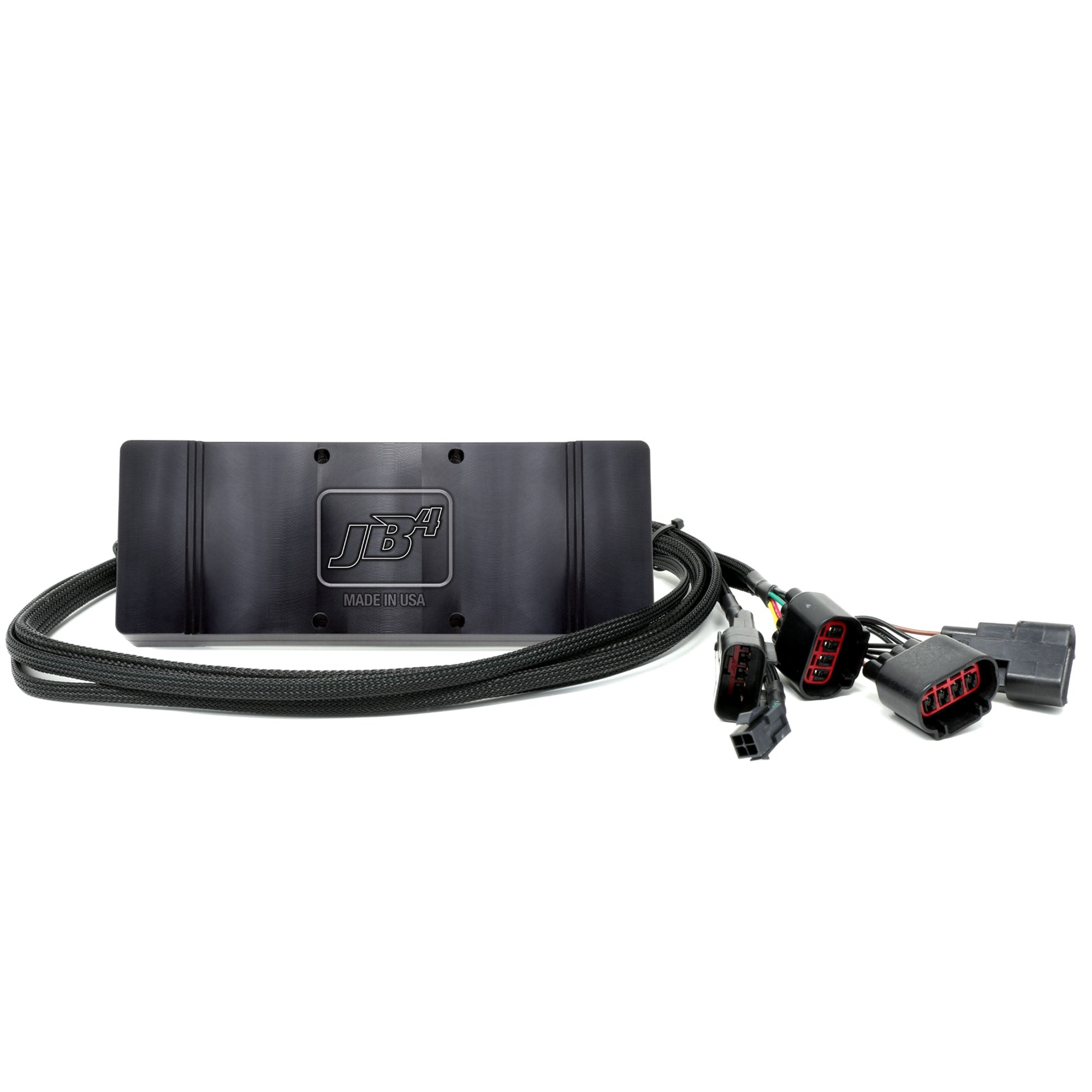

This plug and play tuner attaches to easy to access sensors in the engine bay and works with your factory ECU tuning to remap your boost, timing, and fueling for optimal performance and reduced turbo lag.
Installation is very discrete and unlike flash remaps which are quick to install but can never be fully removed with a JB4 the vehicle is never aware it's making more than the factory boost or power levels. Fuel economy during normal driving is unchanged and it's compatible with all driving modes.
Unlike other less advanced systems, the JB4 includes CANbus functionality allowing it to take in critical engine data directly from the ECU for real-time tuning. The data includes pedal position, throttle position, timing advance, fuel trims, air/fuel ratio, engine knock, fuel trims, gear, and much more. Other tuners without CANbus are not able to even monitor this critical engine data no less incorporate it real-time into their tuning algorithms. CANbus allows the JB4 to provide huge power increases with unparalleled power delivery.
JB4 includes multiple maps including those for 91 octane, 93 octane, factory tuning, VALET mode, E85 mixtures, and unleaded race gas. In addition, it offers boost by gear settings to improve launches, the ability to read and delete fault codes, and much more. The JB4 is made in the USA and includes a 5-year warranty.
Optional JB4 Harness Extensions: These plug and play connectors simplify the installation and removal of JB4 and other Cadillac/GM piggyback systems. Once installed you can bypass the difficult to reach lower MAP sensor by attaching the two connections to each other. Sold in pairs. Available here.

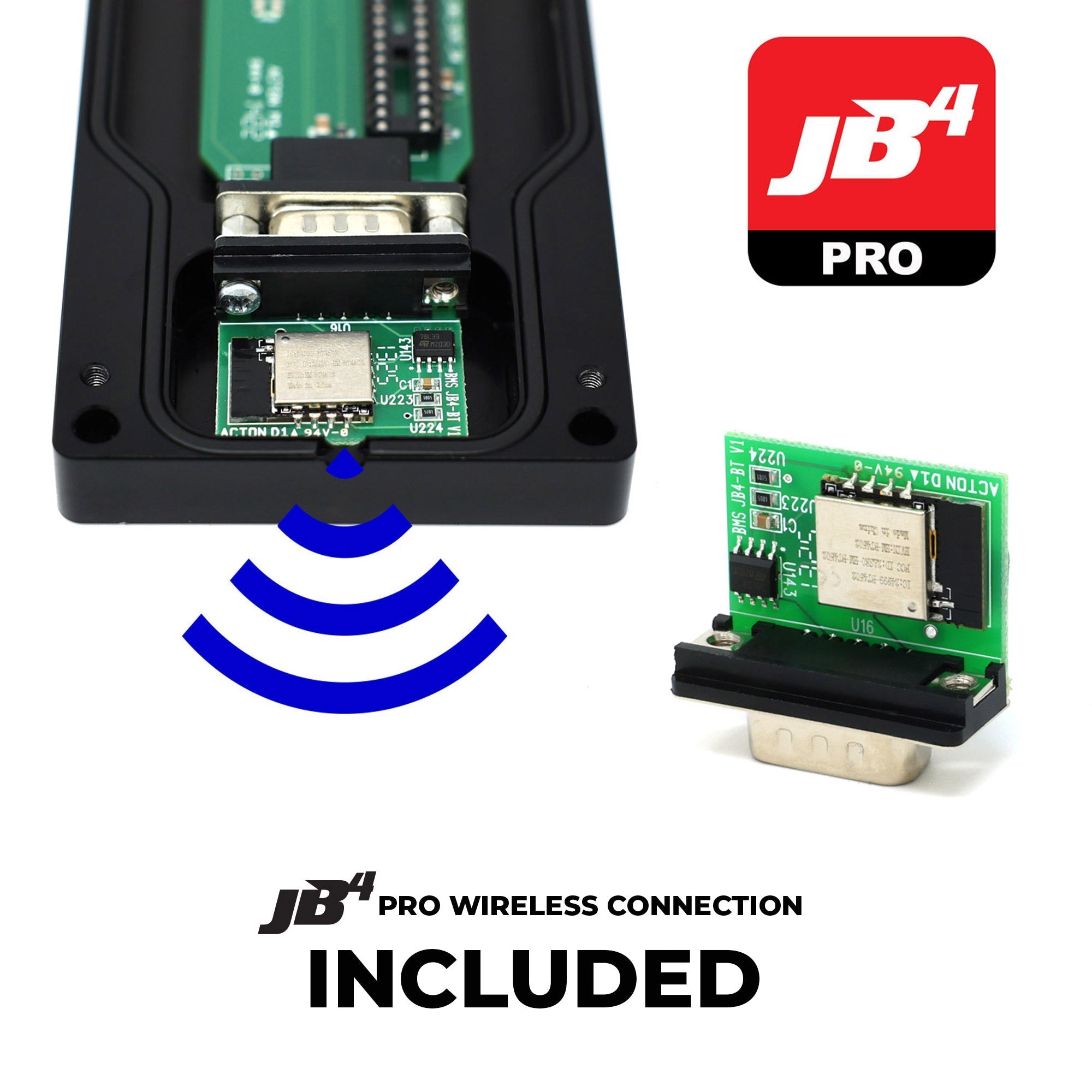

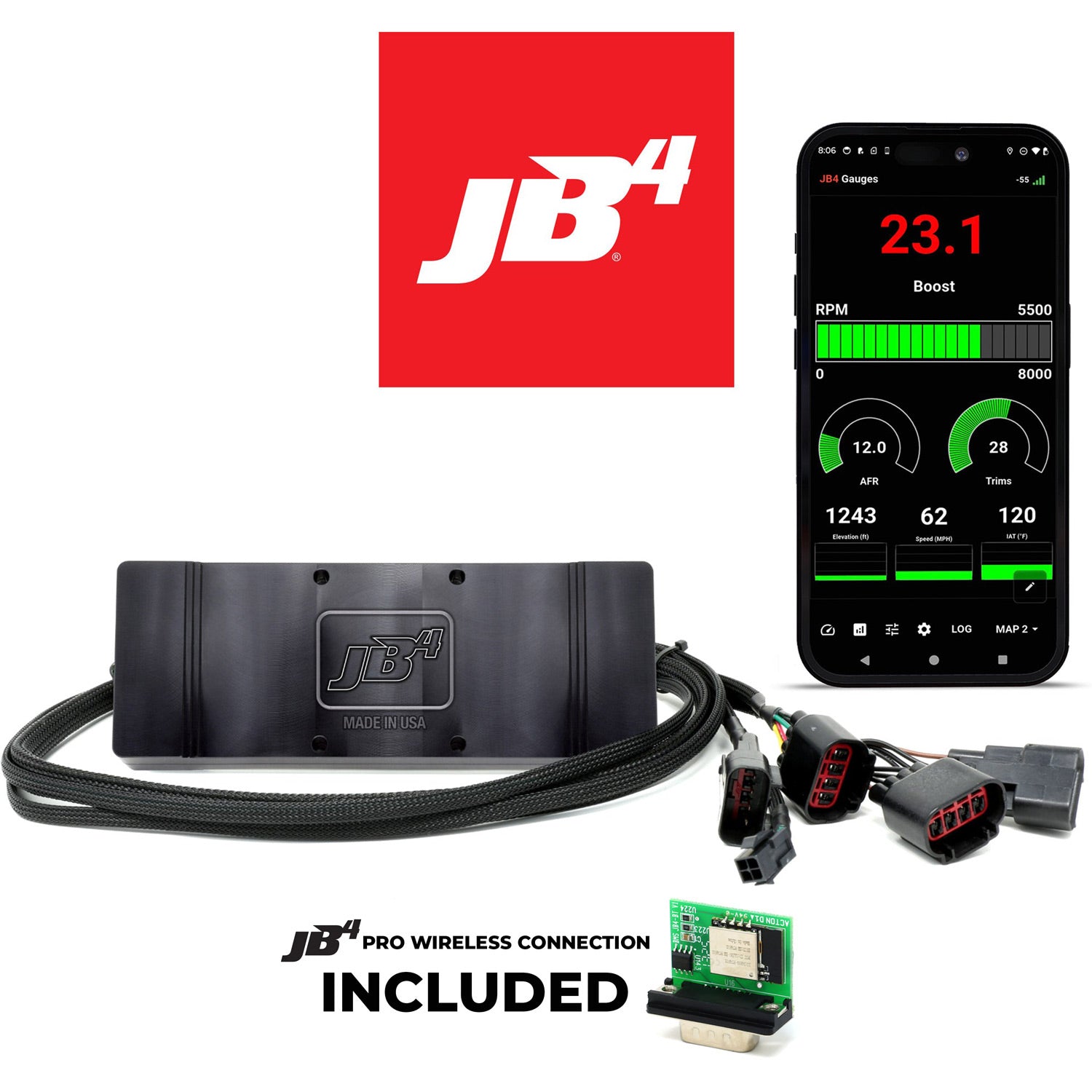

Wirelessly Connect to your JB4: Our all-new JB4 PRO smartphone connection is included to wirelessly connect the JB4 tuner to your Bluetooth 4.0 compatible iOS or Android device. This option allows you to record and analyze vehicle and tuning data, change JB4 performance maps, and update JB4 firmware as we release free newer versions with updates, more powerful maps, and new features under development. Our new adapter fits fully inside the JB4 enclosure for enhanced weather protection and a more streamlined look. The JB4PRO Free app features an intuitive easy-to-use interface, help buttons, and advanced log analysis tools that can estimate the performance of your car and help identify any tuning concerns.
For more information about the JB4PRO mobile app click here.
JB4 Power Gains, Features, & Benefits
• Power gains of up to 30hp and 45tq to the wheels with a stock Chevy Trax
• Improves 0-60 and quarter mile times.
• Includes multiple tuning maps for different fuel types.
• Quick plug and play installation.
• Supports E85 ethanol blends.
• Reads and deletes fault codes.
• Displays and logs up to 40 engine parameters.
• Boost by gear control for improved traction.
• Controls exhaust flap operation on supported vehicles.
• Compatible with the free JB4PRO app.
• Offers better performance and safety than basic chip tunes.
• Full CANbus integration.
• Runs as smoothly as stock.
• Compatible with all driving modes.
• No impact on fuel economy during normal driving.
• Requires 91 octane or better for performance gains.
• Not VIN locked and fully removable.
• Includes billet aluminum enclosure.
• Designed and assembled in the USA.
• 5-year warranty.
JB4 Vehicle Fitment
Chevrolet
• 2024+ Chevrolet Trax 1.2L Turbo 3-cylinder engine LS, 1RS, LT, ACTIV, 2RS
What is a JB4?
The JB4 is a plug & play tune available for turbocharged vehicles. The JB4 tuner installs between your car's sensors and the DME/ECU (computer) and manipulates vehicle performance through these connections making your vehicle much faster. While it's not the only tuning system that operates this way the JB4 separates itself from the competition with much more advanced connection points and processing including CANbus, fuel & spark control, Bluetooth to your smartphone, and a variety of innovative and advanced features not possible with any other system. BMS regularly publishes free mapping and firmware updates adding performance and features as ongoing development allows. In addition, the JB4 system is not VIN-locked to your vehicle and can quickly be removed and swapped between cars or resold at a later time. Often imitated but never duplicated the JB4 has been the gold standard in plug and play turbocharged performance tuning for over a decade and is sold in over 67 countries worldwide.
Is the JB4 a real tune?
Yes the JB4 is a real tune. By tapping into specific sensors and CANbus for real time vehicle data the JB4 is able to alter your boost, timing, AFR, and/or fuel trims, to a similar degree an ECU reflash would, but without the vehicle ever knowing its been tuned. The result is safe, smooth, and significant power and torque gains while retaining your factory safety systems and without having to unlock/flag your ECU.
2024 Chevy Trax Dyno results STOCK vs. JB4 Tuned
