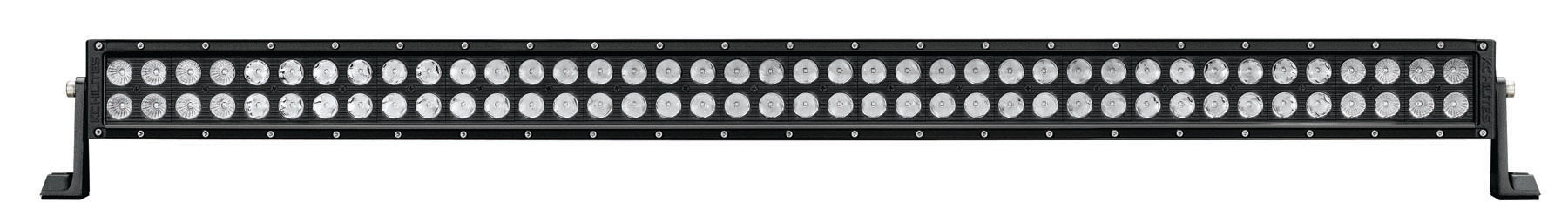

C-Series light bar features an extruded aluminum housing, aluminum core PCBs with thermal management, and Lexan lenses. What you get is a perfect balance of affordable performance with maximum efficiency. Off-road race tested, the C-Series was designed to handle the harshest environments. Featuring IP67 rated housing and GORE(R) Membranes, the C-Series is resistant to moisture and dust. The 40 in C-Series uses an advanced dual row CREE LED design delivering 21,600 lumens of output with maximum power efficiency. They are perfect for hood, front bumper, windshield, and grille applications providing balanced and powerful light illumination. When it comes to total road coverage the C-Series LED light bar features a combo beam with perfectly angled 8 degree Spot 90 degree Spread reflectors, for maximum forward distance and increased peripheral illumination along road edges.
- Die-Cast Mounting Brackets w/ hardware
- Extruded Aluminum Housing
- GORE(R) Membrane Barrier
- Precision reflectors with forward facing LEDs
- Combo Beam Pattern: 8 degree Spot; 90 degree Spread
Attributes:
-
GTIN: 00084709003371
-
Brand Name: KC HiLiTES
-
Add-On: N/A
-
Amp Draw: 20.0A
-
Beam Distance (Meters): 1,058m
-
Beam Pattern: Combo
-
Candela: 280,000 Cd
-
Color Temperature: 6000K
-
IP Rating: IP67
-
LED Source: CREE LED
-
Light Temp: 6000K
-
Lumens: 21600
-
Lux at 10 Meters: 2,800 lx
-
Lux at 10 Meters: 2,800 lx
-
Lux: 2800
-
Parts Included: 40 in 240W C-SERIES LED Light Bar, Wiring Harness w/ 2-Pin weatherproof connectors
-
Product Dimensions: L 41.38 in x H 3.09 in x D 3.40 in
-
Raw Lumens: 21,600 lm
-
Voltage: 9V-32V
-
Wattage: 240W
Extended Information:
-
Country of Origin: CN
-
Emissions : Emissions Compliance Exempt
-
Life Cycle Status: Available To Order
Packing Information:
-
Quantity of Each: 1
-
Package UOM: EA
-
Dimension: 42 x 6.5 x 6.5 inches
-
Weight: 14.5 lb
