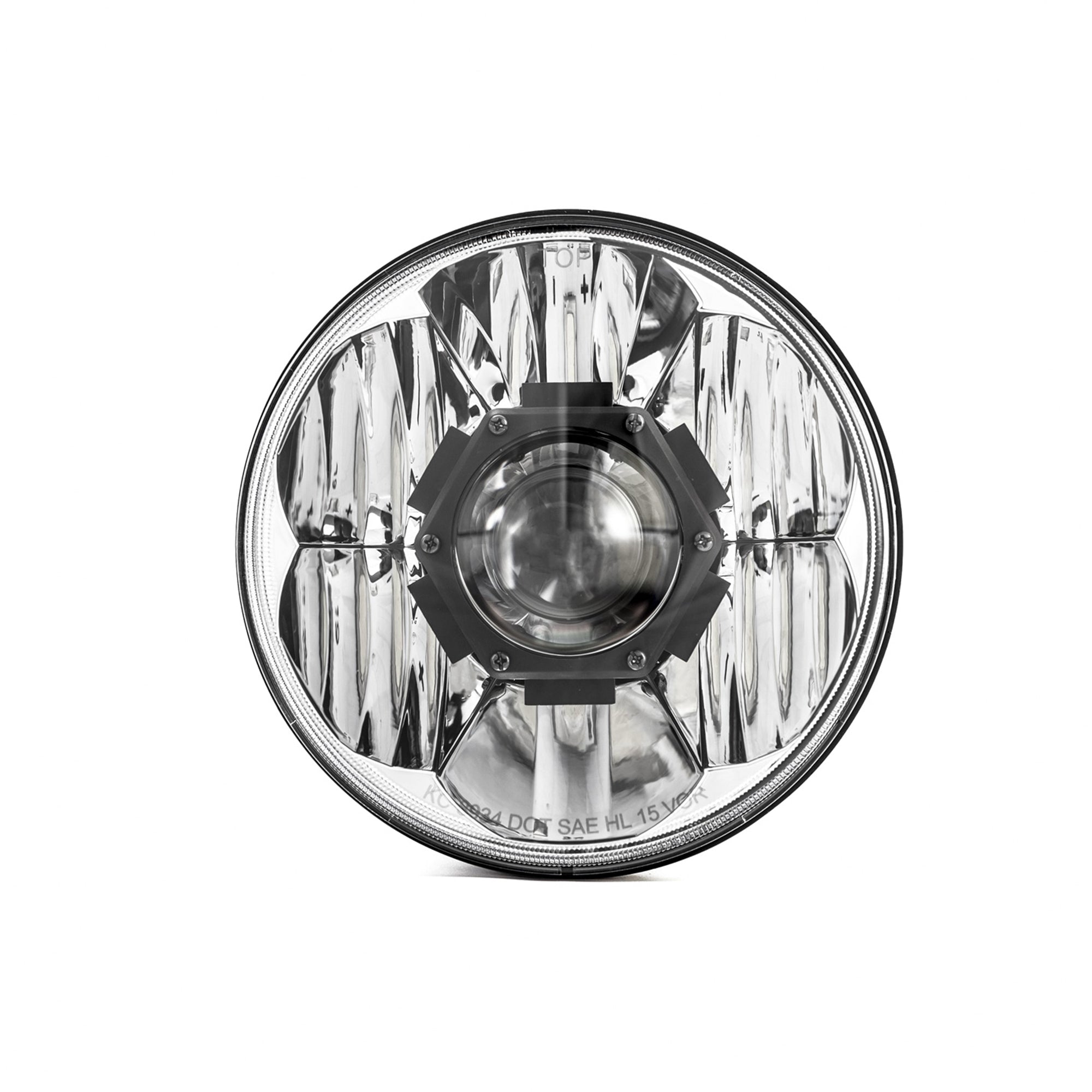

Gravity(R) LED 7 in Headlights feature KC's patented Gravity(R) Reflective Diode system aims LEDs into precision reflectors, capturing all light to project it forward.IP Rating: IP68IP Rating: IP68IP Rating: IP68IP Rating: IP68IP Rating: IP68IP Rating: IP68IP Rating: IP68IP Rating: IP68Candela: 131,000 CdHard Coated Polycarbonate LensBrilliant Clear QuartzIP Rating: IP68IP Rating: IP68Bolt-On 07-09 Jeep JK ApplicationStandard in All KC 55w (12v) LightsIP Rating: IP6860 Watt High BeamIP Rating: IP68IP Rating: IP68IP Rating: IP68Sold IndividuallyIP Rating: IP68IP Rating: IP68IP Rating: IP68IP Rating: IP68IP Rating: IP6835 Watts 3500 Lumens12V H3 Halogen 100 Watt Standard in All KC 100w (12v) Lights High Power Halogen Brilliant Clear Quartz Sold IndividuallyManufactured In A Durable RubberStainless SteelIP Rating: IP68IP Rating: IP68IP Rating: IP68IP Rating: IP68Compact Round DesignIP Rating: IP68Compatible with most KC HiLiTES Wiring HarnessesIP Rating: IP68IP Rating: IP68IP Rating: IP68Illuminated Red LED Indicator For Visibility and Ease of UseIP Rating: IP68IP Rating: IP68Street Legal 10-18 Jeep JK ApplicationIP Rating: IP68IP Rating: IP68Protective Rubber BootReplacement Rocker Light Switch provided with standard most KC Light and Pair Pack SystemsWaterproof Design for DurabilityIP Rating: IP68IP Rating: IP68IP Rating: IP68IP Rating: IP68Compact Round DesignCompatible Only with KC FLEX ERA Wiring HarnessesIdeal for Illuminating Immediate Areas as a Work or Effective Backup Reverse lightIP Rating: IP68IP Rating: IP68IP Rating: IP68IP Rating: IP68IP Rating: IP68IP Rating: IP68IP Rating: IP68IP Rating: IP68IP Rating: IP68IP Rating: IP68Protective Rubber BootReplacement Rocker Light Switch for KC FLEX ERA LightsWaterproof Design for DurabilitySealed For Added Moisture ProtectionIP Rating: IP68IP Rating: IP68IP Rating: IP68Driving (Spread) Beam Pattern for Additional Width and Distance to Maximize VisibilityIP Rating: IP68IP Rating: IP68IP Rating: IP68IP Rating: IP68IP
- Hard Coated Polycarbonate Lens
- DOT Compliant High/Low Beams with Day Running Light Support (Standard in Canada Spec 07-18 Jeep JK)

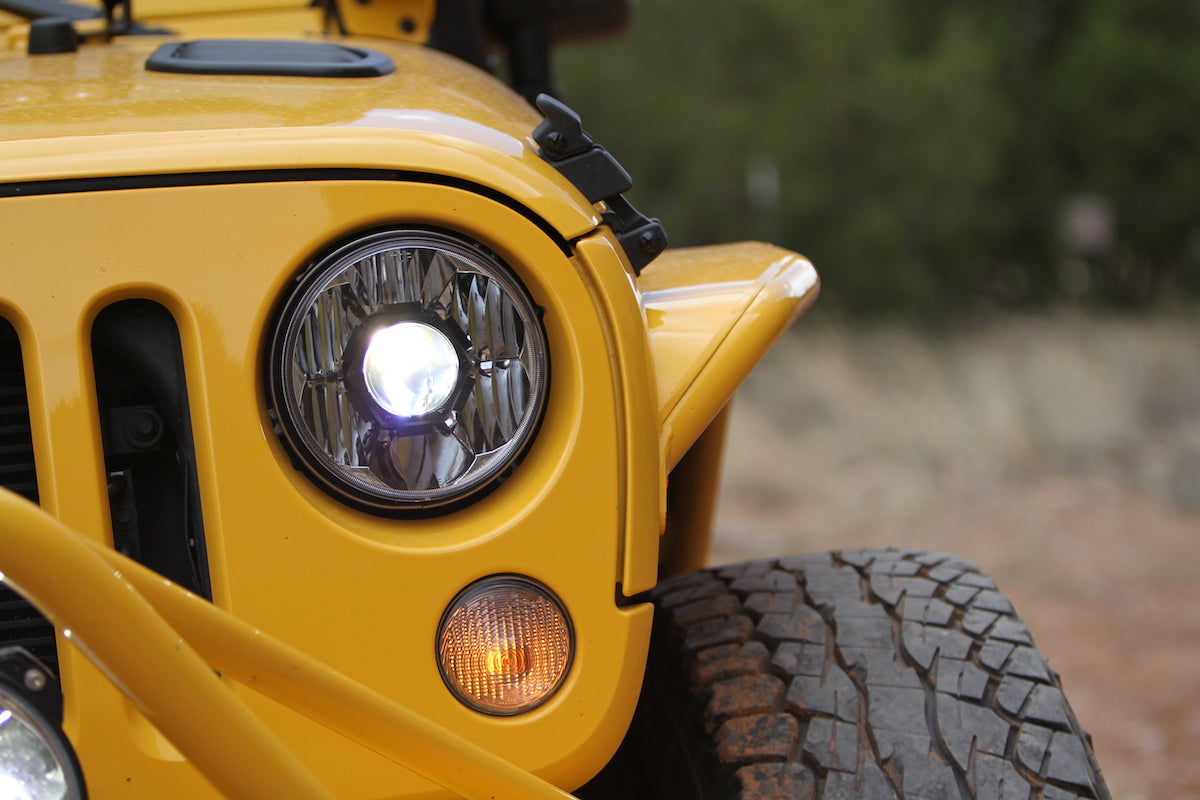

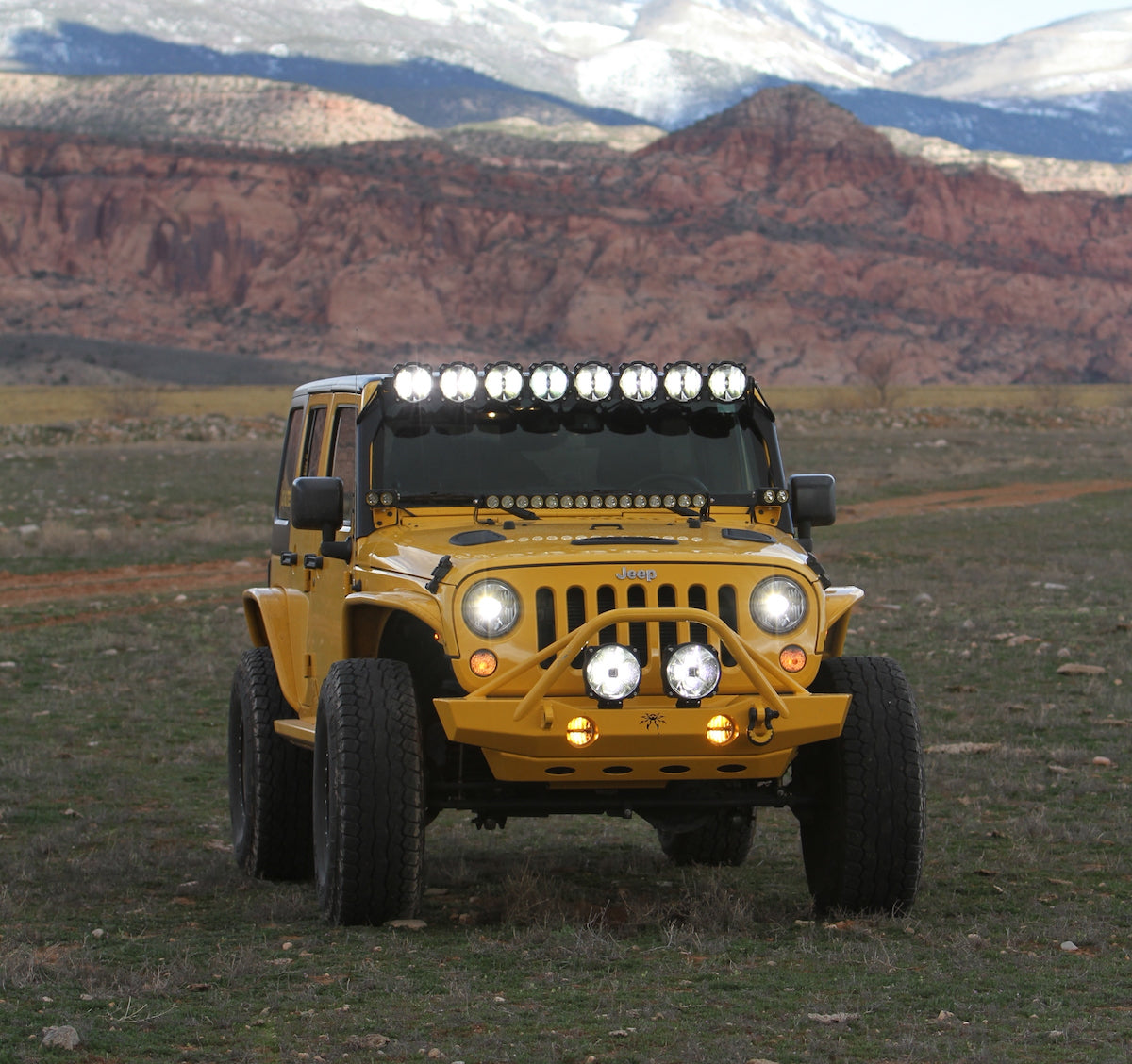

- Plug-n-Play for 07-18 Jeep Wrangler JK/JKU With Factory Halogen Headlights
- Precision Die-Cast Aluminum Housing
Attributes:
-
GTIN: 00084709042349
-
Brand Name: KC HiLiTES
-
Add-On: N/A
-
Amp Draw: 1.88A
-
Beam Distance (Meters): Low 400m, High 529m
-
Beam Pattern: Headlight
-
Candela: Low- 40,000 Cd, High- 70,000 Cd
-
Color Temperature: 5000K
-
IP Rating: IP68
-
LED Bulb: CREE
-
LED Source: CREE XP HI/XPG2
-
Light Temp: 5000K
-
Lumens: Low- 2,967, High- 2,575, DRL- 386
-
Lux at 10 Meters: Low 400 lx, High 700 lx
-
Lux at 10 Meters: Low 400 lx, High 700 lx
-
Lux: Low- 400, High- 700
-
Product Dimensions: W 6.96 in x D 5.098 in
-
Raw Lumens: Low- 2,967 lm, High-2,575 lm, DRL- 386 lm
-
Voltage: 9V-18V
-
Wattage: Low- 20W, High- 30W, DRL- 1.35W
Extended Information:
-
Country of Origin: TW
-
Emissions : Emissions Compliance Exempt
-
Life Cycle Status: Available To Order
Packing Information:
-
Quantity of Each: 1
-
Package UOM: EA
-
Dimension: 7.25 x 7.25 x 7 inches
-
Weight: 3 lb
