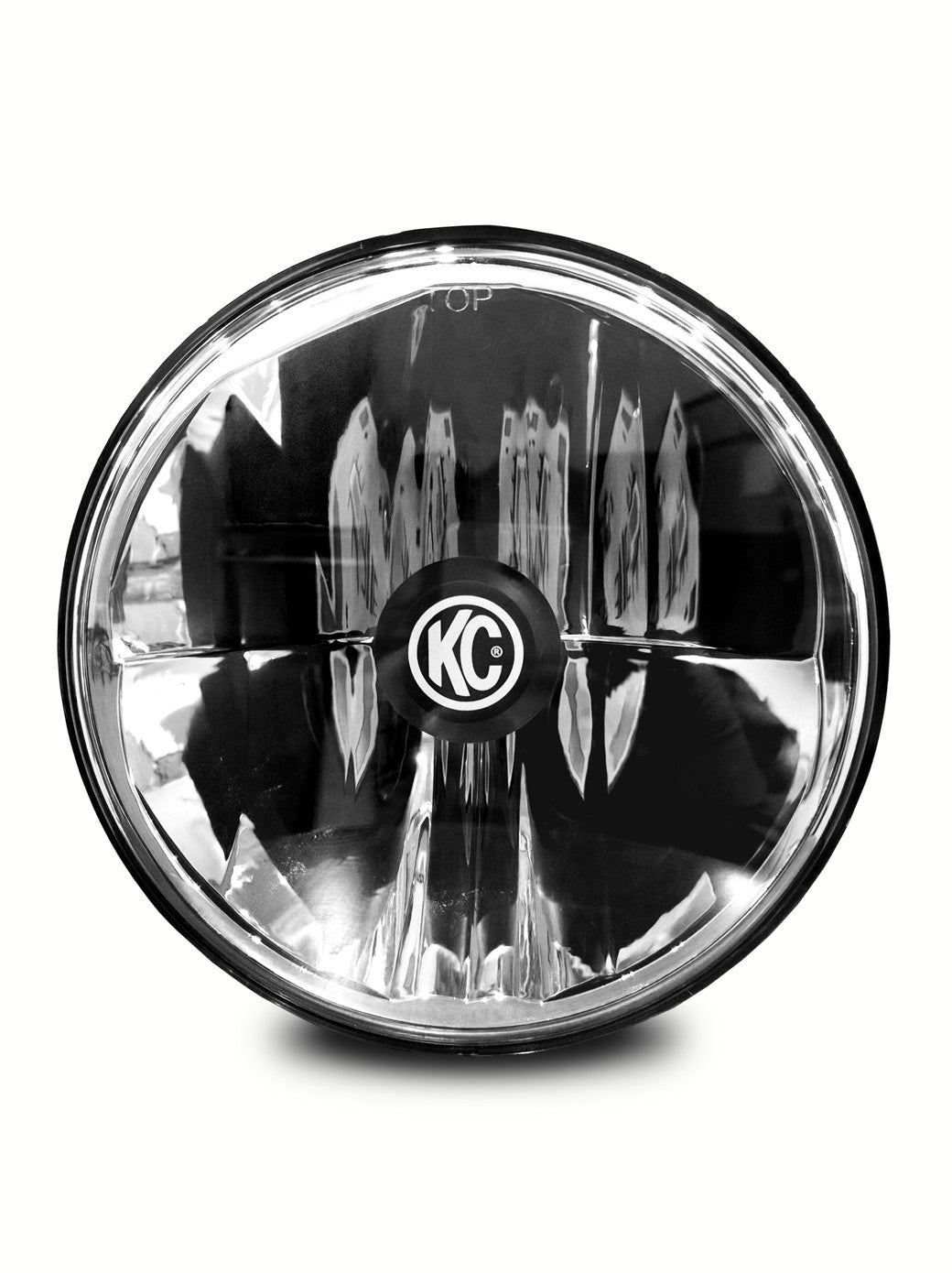

KC's Headlights now feature Low Beam, High Beam, and Daytime Running Light functionality while improving visibility and clarity over factory 1997-2006 Jeep Wrangler TJ headlights. Not to mention our lights work with other 7 in round headlight openings on various vehicles, with simple H4 connectors.40 Amp5 PoleEasy To InstallKC 12v Relay Surrounding our Gravity(R) LED 7 in Headlight is a durable die-cast housing, and a hard coated Polycarbonate lens, all of which is designed to withstand the harshest climates, terrains and driving conditions.
- DOT Compliant Low Beam, High Beam and Day Running Light
- Hard Coated Polycarbonate Lens
- KC Engineered Polished Reflector Optics
- Full Plug-n-Play for 97-06 Jeep TJ Wrangler
- Plug and Play Connector, Jeep TJ/Universal- H4
- Precision Die-Cast Aluminum Housing
Attributes:
-
GTIN: 00084709042363
-
Brand Name: KC HiLiTES
-
Add-On: N/A
-
Amp Draw: 1.88A
-
Beam Distance (Meters): Low 407m, High 557m
-
Beam Pattern: Headlight
-
Candela: Low- 41,500 Cd, High- 77,500 Cd
-
Color Temperature: 5000K
-
Compliance: SAE J851 ECE-R112
-
IP Rating: IP68
-
LED Bulb: CREE XHP35 HI and Nichia
-
LED Source: CREE XHP35 HI and Nichia
-
Light Temp: 5000K
-
Lumens: 1260
-
Lux at 10 Meters: Low 415 lx, High 775 lx
-
Lux at 10 Meters: Low 415 lx, High 775 lx
-
Lux: Low- 415, High- 775
-
Parts Included: Plug-n-Play Connector Jeep TJ/Universal H4
-
Product Dimensions: W 6.96 in x D 3.72 in
-
Raw Lumens: Low- 1,260 lm, High- 3,666 lm, DRL- 275 lm
-
Voltage: 9V-18V
-
Wattage: Low- 18W, High- 22W
Extended Information:
-
Country of Origin: Taiwan
-
Emissions : Emissions Compliance Exempt
-
Life Cycle Status: Available To Order
Packing Information:
-
Quantity of Each: 1
-
Package UOM: EA
-
Dimension: 7.25 x 7.25 x 7 inches
-
Weight: 3 lb
