LOGIQ ReadyAIR Load Leveling Air Suspension Kit 2007–2018 GM Silverado & Sierra 1500
Enhance your GM Silverado or Sierra 1500 with the LOGIQ ReadyAIR Load Leveling Air Suspension Kit, engineered for unmatched comfort, performance, and towing control. Whether you're hauling heavy loads, towing a trailer, or driving unloaded, this premium air suspension system provides factory-replacement convenience and next-level ride quality—all in a 100% pre-assembled package.
Key Features:
-
Vehicle-Specific Design: Built exclusively for 2007–2018 Chevrolet Silverado 1500 and GMC Sierra 1500 models with rear coil spring suspension.
-
Primary Air Suspension System: Replaces factory rear coils to deliver a smoother, more controlled ride—loaded or unloaded.
-
Height Adjustable: Tune ride height from bump stop to lifted for better load leveling, towing performance, and off-road clearance.
-
Supports Factory to 3” Lifts: Compatible with stock trucks and mild lift setups; upgrade options available for 3”–6” lift kits.
-
OEM Air Replacement Option: Can replace factory air suspension systems; if using OEM air management, a 6mm to 1/4" adapter (not included) is required.
-
Fully Assembled Kit: Pre-built at the factory for fast, hassle-free installation—no cutting, welding, or guesswork needed.
-
Enhanced Load Handling: Minimizes rear-end sag, squat, and sway under heavy loads for better control, stability, and safety.
Whether you're towing toys to the trailhead or loading up gear for a weekend escape, the LOGIQ ReadyAIR Kit transforms your 2007–2018 Silverado or Sierra 1500 into a more capable and confident hauler
Specs
- Air Spring Location: Axle Mounted Inboard Frame Rails
- Air Spring Quantity: 2
- Load Capacity: 3,200 lbs @ 150 psi
- Maximum Pressure: 150 psi
- Minimum Pressure: 10 psi
Includes

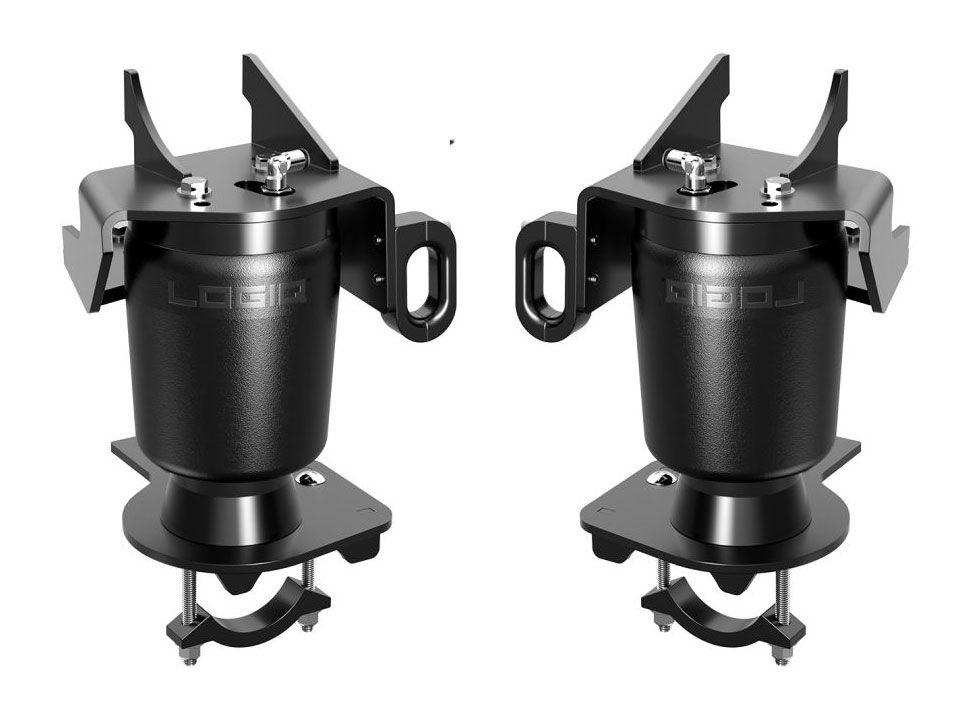

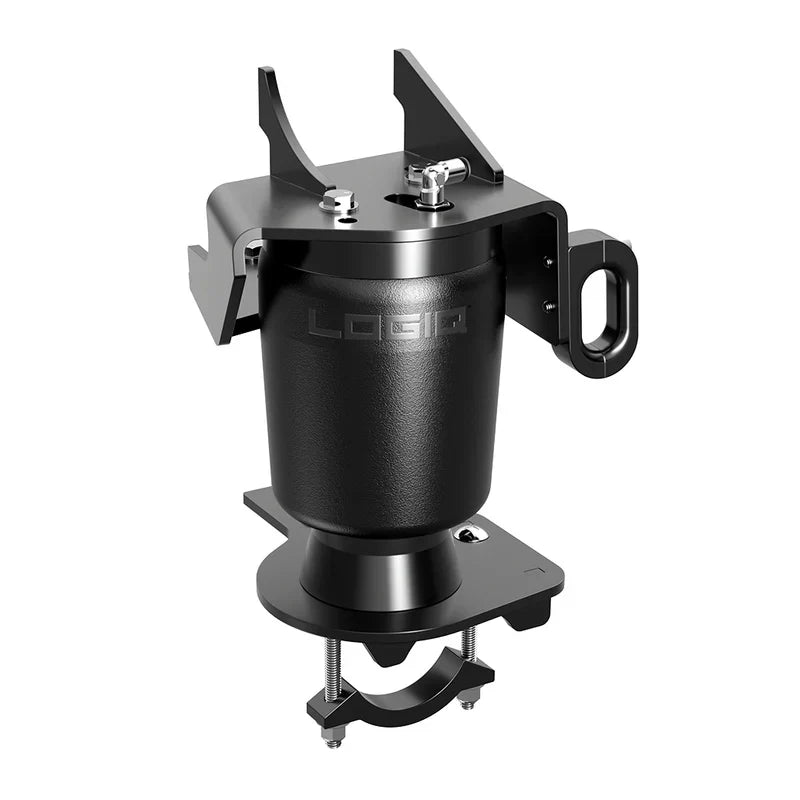

(1) Driver Side Air Spring Assembly
(1) Passenger Side Air Spring Assembly
(1) Hardware Kit

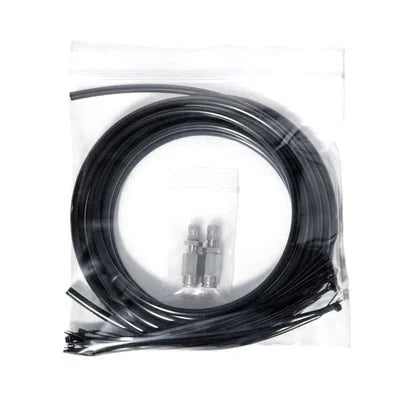

(1) Manual Inflation Kit
(1) Exhaust Heat Wrap Kit
Fitment
- 2007 Chevrolet Silverado 1500 (2WD & 4WD)
- 2008 Chevrolet Silverado 1500 (2WD & 4WD)
- 2009 Chevrolet Silverado 1500 (2WD & 4WD)
- 2010 Chevrolet Silverado 1500 (2WD & 4WD)
- 2011 Chevrolet Silverado 1500 (2WD & 4WD)
- 2012 Chevrolet Silverado 1500 (2WD & 4WD)
- 2013 Chevrolet Silverado 1500 (2WD & 4WD)
- 2014 Chevrolet Silverado 1500 (2WD & 4WD)
- 2015 Chevrolet Silverado 1500 (2WD & 4WD)
- 2016 Chevrolet Silverado 1500 (2WD & 4WD)
- 2017 Chevrolet Silverado 1500 (2WD & 4WD)
- 2018 Chevrolet Silverado 1500 (2WD & 4WD)
- 2007 GMC Sierra 1500 (2WD & 4WD)
- 2008 GMC Sierra 1500 (2WD & 4WD)
- 2009 GMC Sierra 1500 (2WD & 4WD)
- 2010 GMC Sierra 1500 (2WD & 4WD)
- 2011 GMC Sierra 1500 (2WD & 4WD)
- 2012 GMC Sierra 1500 (2WD & 4WD)
- 2013 GMC Sierra 1500 (2WD & 4WD)
- 2014 GMC Sierra 1500 (2WD & 4WD)
- 2015 GMC Sierra 1500 (2WD & 4WD)
- 2016 GMC Sierra 1500 (2WD & 4WD)
- 2017 GMC Sierra 1500 (2WD & 4WD)
- 2018 GMC Sierra 1500 (2WD & 4WD)
Instructions
Click Here for instructions
