LOGIQ ReadyAIR Load Leveling Air Suspension Kit 2007–2021 Toyota Tundra
Unlock the full potential of your 2007–2021 Toyota Tundra with the LOGIQ ReadyAIR Load Leveling Air Suspension Kit. Engineered for precision and performance, this fully pre-assembled system replaces your factory rear coil springs to provide exceptional ride quality, enhanced towing capability, and unmatched load stability—on or off the road.
Key Features:
-
Tailored for 2007–2021 Toyota Tundra: Custom-designed to fit Tundra models equipped with rear coil spring suspension.
-
Primary Air Ride System: Replaces factory coils with heavy-duty air springs, offering smoother performance whether you're fully loaded or running empty.
-
Height Adjustability: Easily adjust ride height from bump stop to lifted—perfect for towing, hauling, or achieving additional clearance off-road.
-
Supports Factory to 3” Lifts: Works with stock-height Tundras and up to 3” of lift; upgrade kits available for trucks with 3"–6" lift setups.
-
OEM Air Suspension Replacement Compatible: Can replace factory air suspension setups; if retaining factory air management, a 6mm to 1/4” push-to-connect adapter (not included) is required.
-
100% Pre-Assembled: Arrives fully built for a simple bolt-on installation—no cutting, welding, or complicated setup.
-
Superior Load Stability: Reduces rear-end squat, sway, and sag under heavy loads, improving ride comfort and control.
Whether you're hauling gear, towing a trailer, or venturing into the backcountry, the LOGIQ ReadyAIR Load Leveling Kit delivers a whole new level of performance and capability to your Toyota Tundra.
Specs
- Air Spring Location: Leaf Spring Mounted Outboard Frame Rails
- Air Spring Quantity: 2
- Load Capacity: 3,200 lbs @ 150 psi
- Maximum Pressure: 150 psi
- Minimum Pressure: 10 psi
Includes

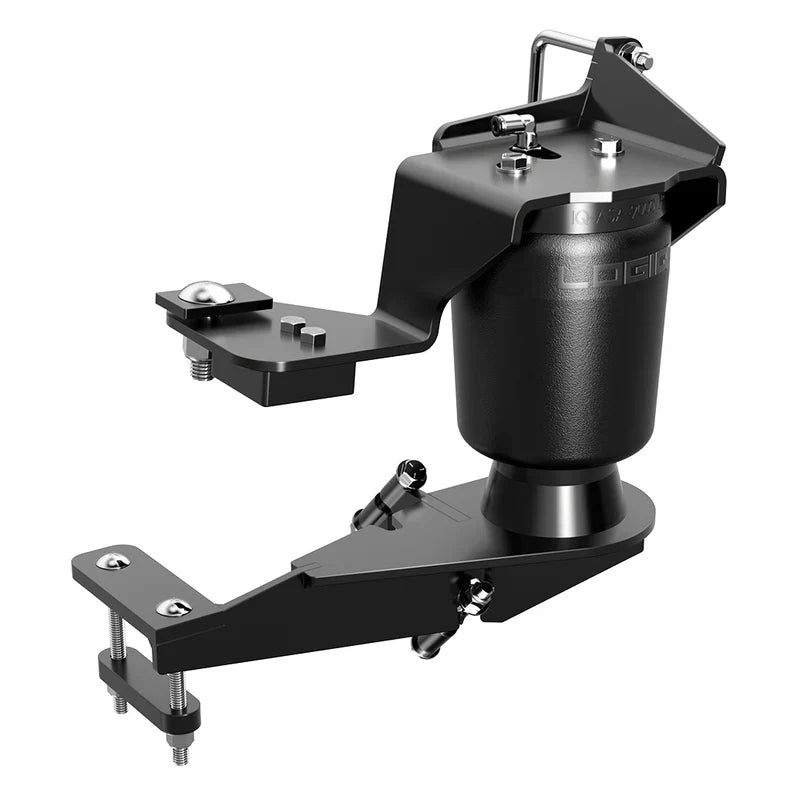

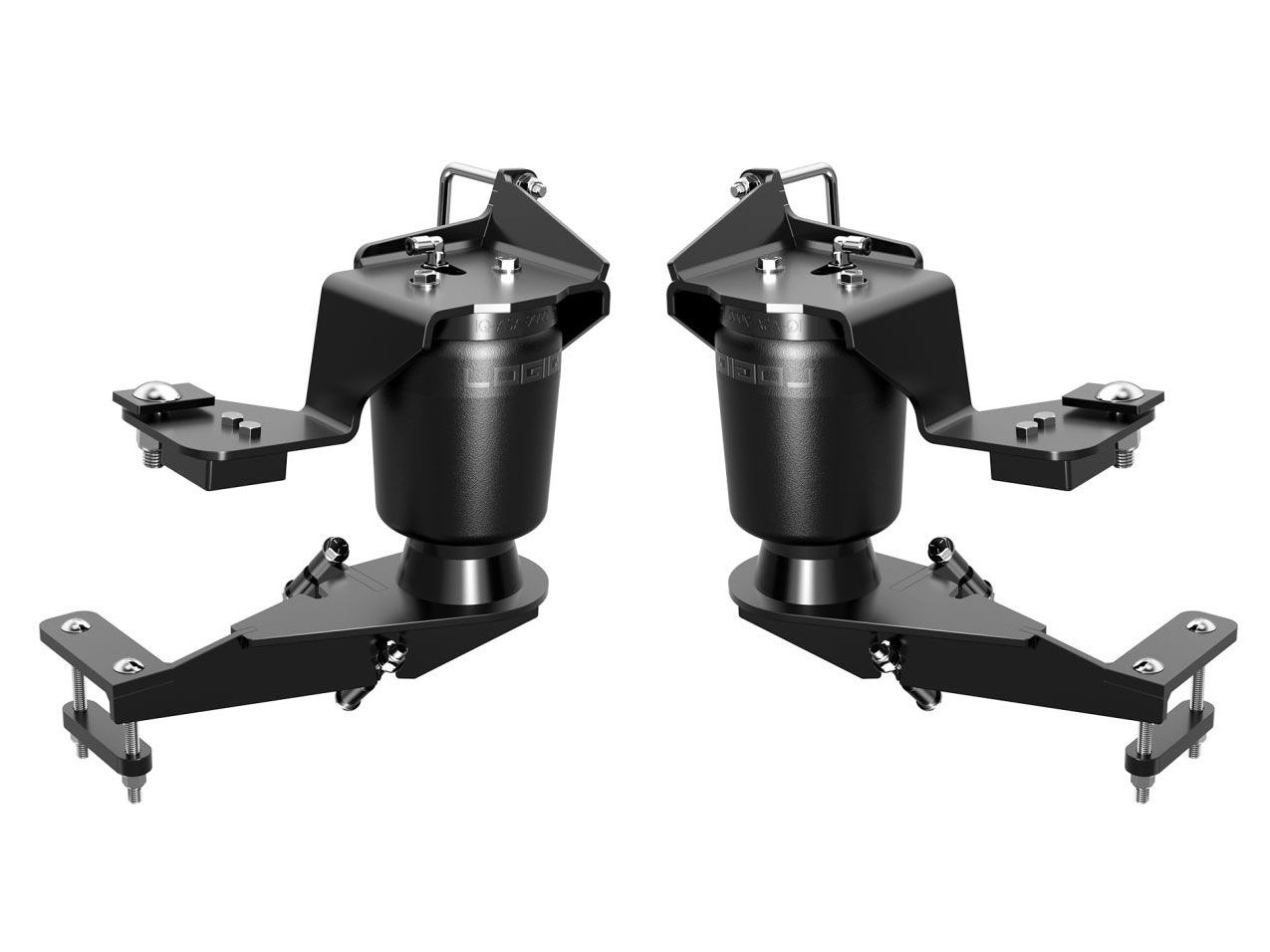

(1) Driver Side Air Spring Assembly
(1) Passenger Side Air Spring Assembly
(1) Hardware Kit

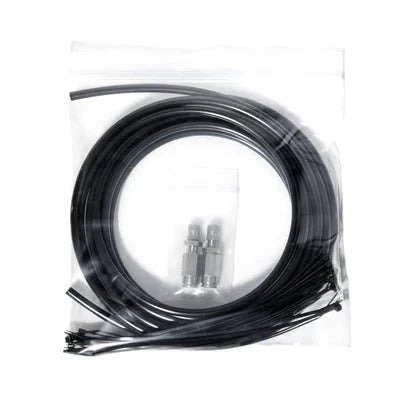

(1) Manual Inflation Kit
Fitment
-
- 2007 Toyota Tundra (2wd & 4wd)
- 2008 Toyota Tundra (2wd & 4wd)
- 2009 Toyota Tundra (2wd & 4wd)
- 2010 Toyota Tundra (2wd & 4wd)
- 2011 Toyota Tundra (2wd & 4wd)
- 2012 Toyota Tundra (2wd & 4wd)
- 2013 Toyota Tundra (2wd & 4wd)
- 2014 Toyota Tundra (2wd & 4wd)
- 2015 Toyota Tundra (2wd & 4wd)
- 2016 Toyota Tundra (2wd & 4wd)
- 2017 Toyota Tundra (2wd & 4wd)
- 2018 Toyota Tundra (2wd & 4wd)
- 2019 Toyota Tundra (2wd & 4wd)
- 2020 Toyota Tundra (2wd & 4wd)
- 2021 Toyota Tundra (2wd & 4wd)
Instructions
Click Here for instructions
