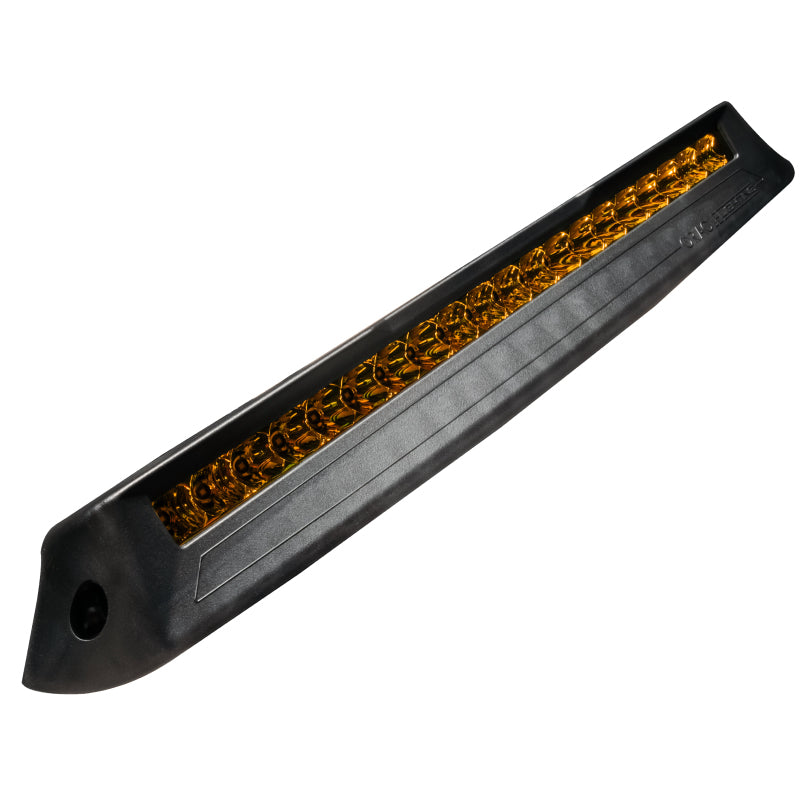

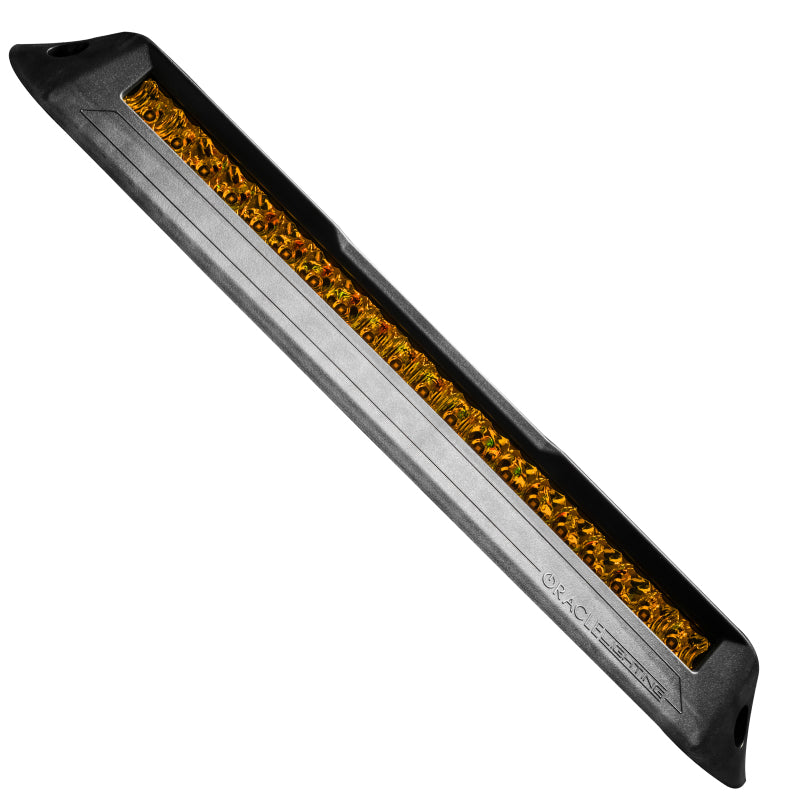

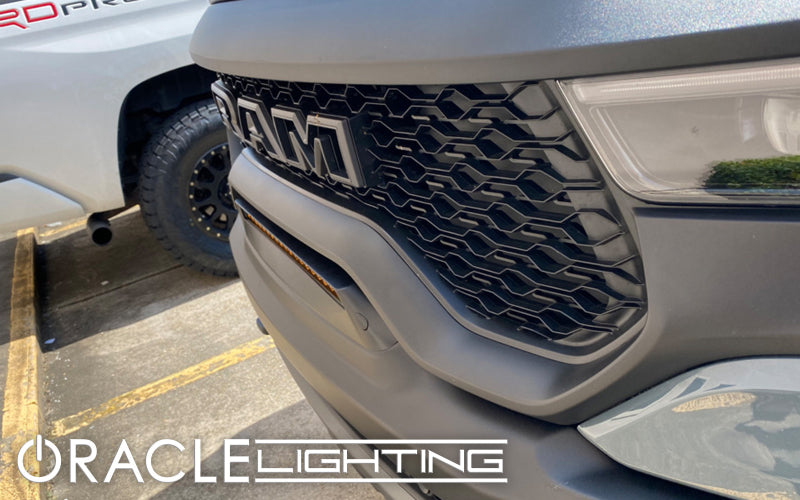

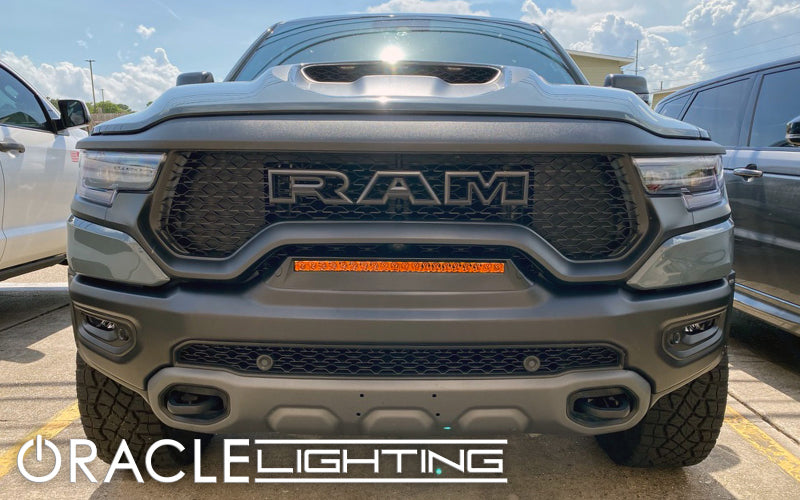

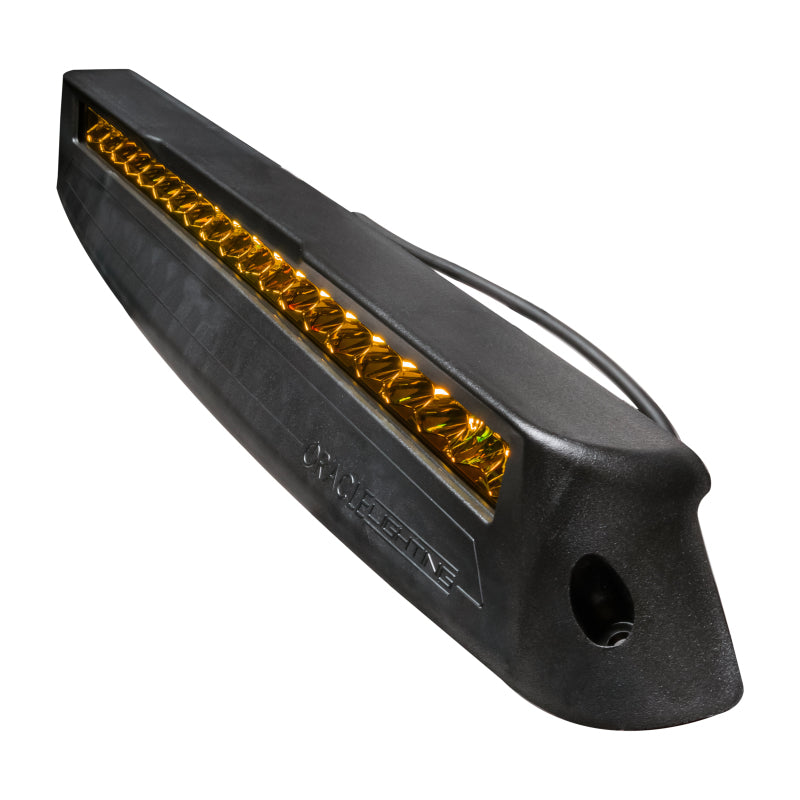

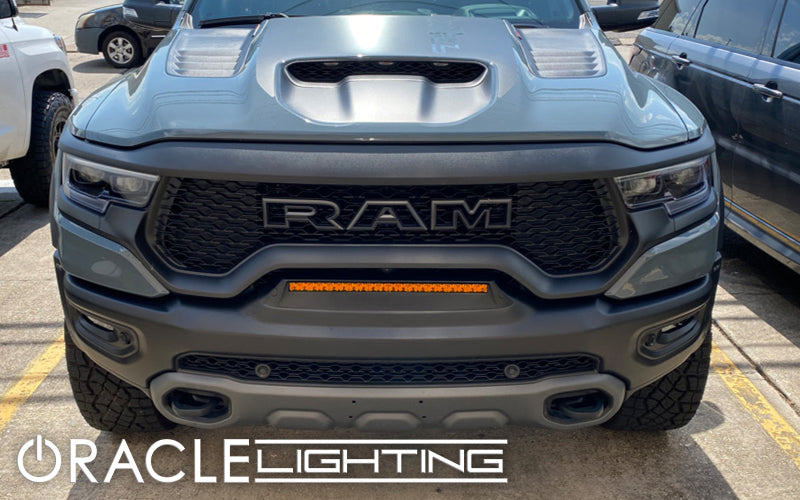

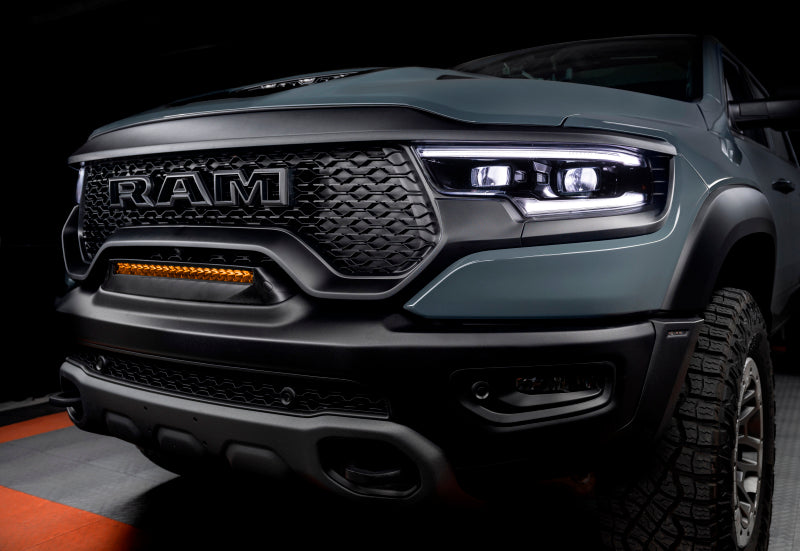

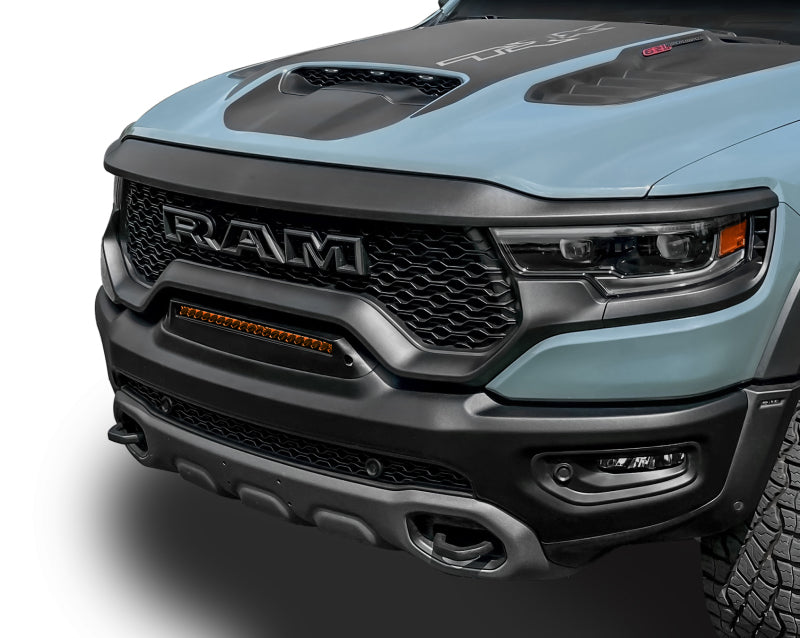

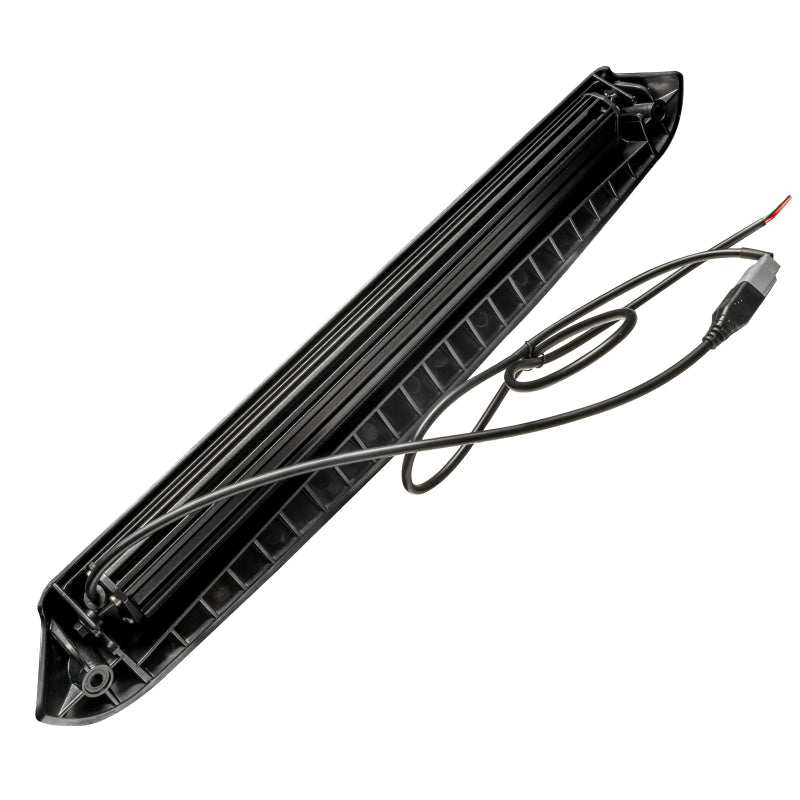

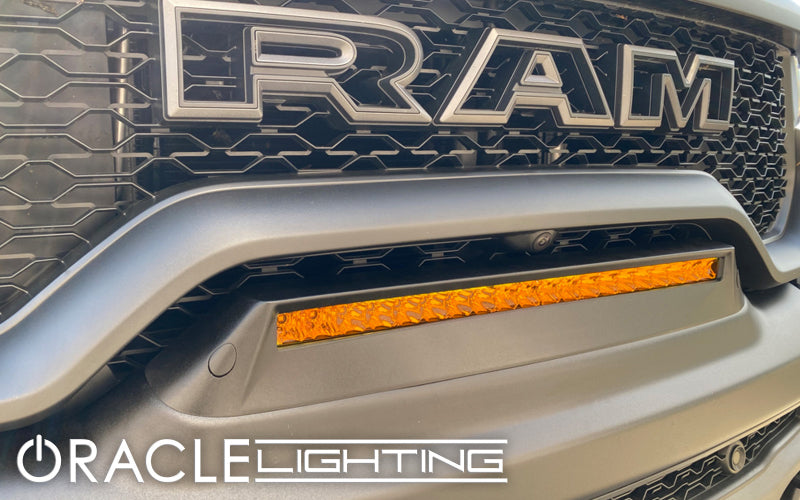

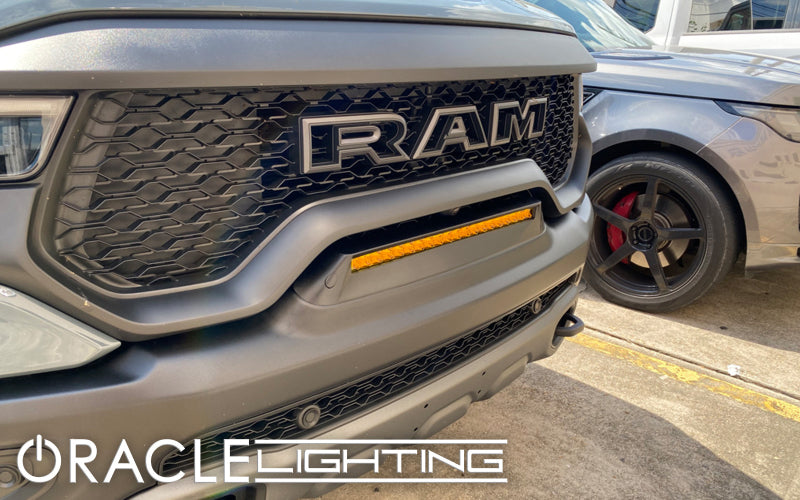

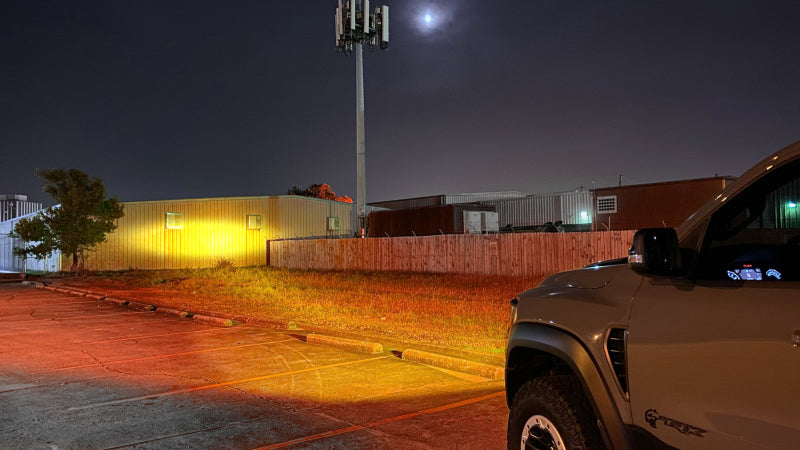

This unique new lighting system from ORACLE Lighting provides functional forward LED lighting while maintaining a factory appearance. Our high powered 100W LED light bar is fitted into a housing which is designed to mimic the shape of the original factory bumper and integrate into the front end of the 2019+ RAM 1500 TRX or Rebel. The lighting system is installed using rivet nuts, which require 2 holes 3/8" to attach the bar to the bumper. Wiring can easily connect to the factory AUX switches, if your truck is not equipped with AUX switches, we recommend you add our switched light bar wiring harness PART #2088-504 The projection of the light bar is a mixed beam with 8 of the LEDs using a flood (45? angle) beam and 12 of the LEDs using a spot (25? angle) beam the user gets the advantages of both a wide field of vision and a long narrow beam. With the average Apex Angle of 33? (8x45? + 12x25?) and calculating based on 14000Lm the total candela of the light is 54107.70cd.
Installation Instructions
