Description

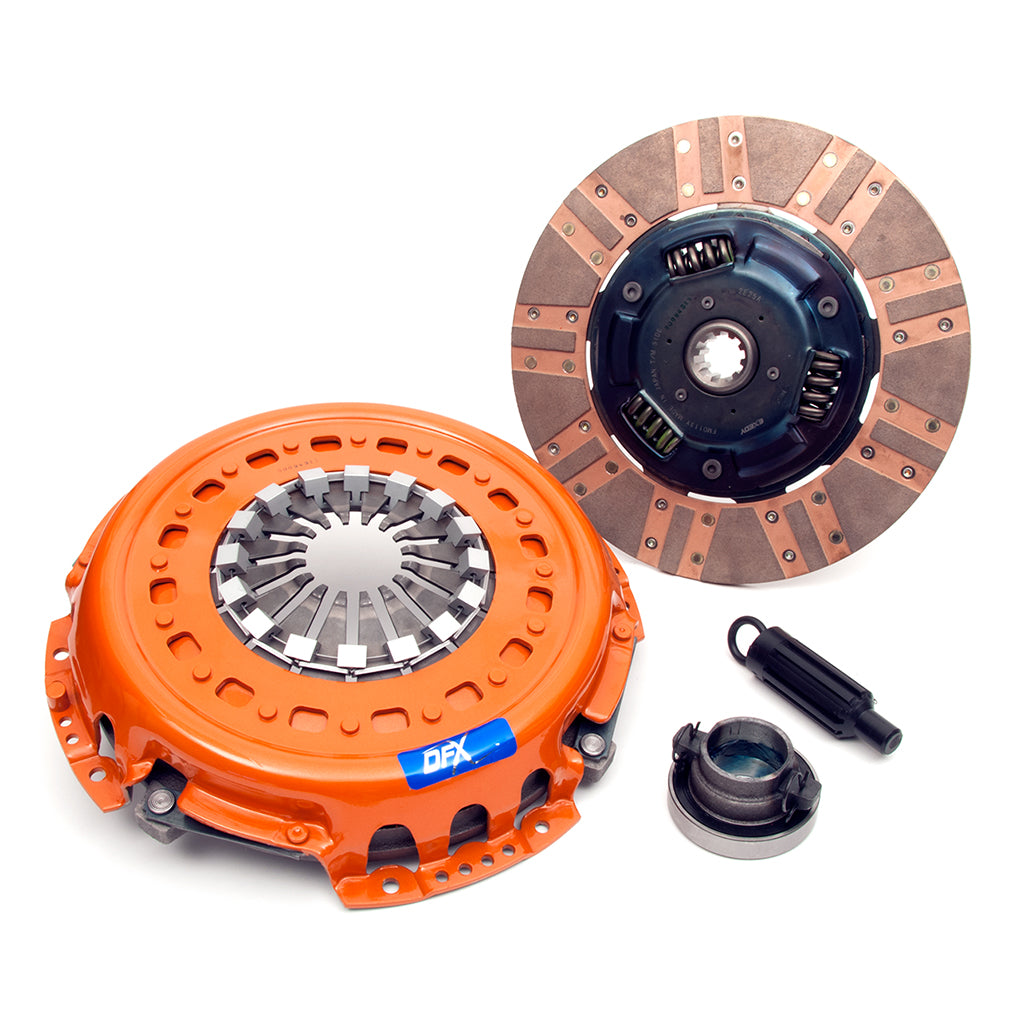

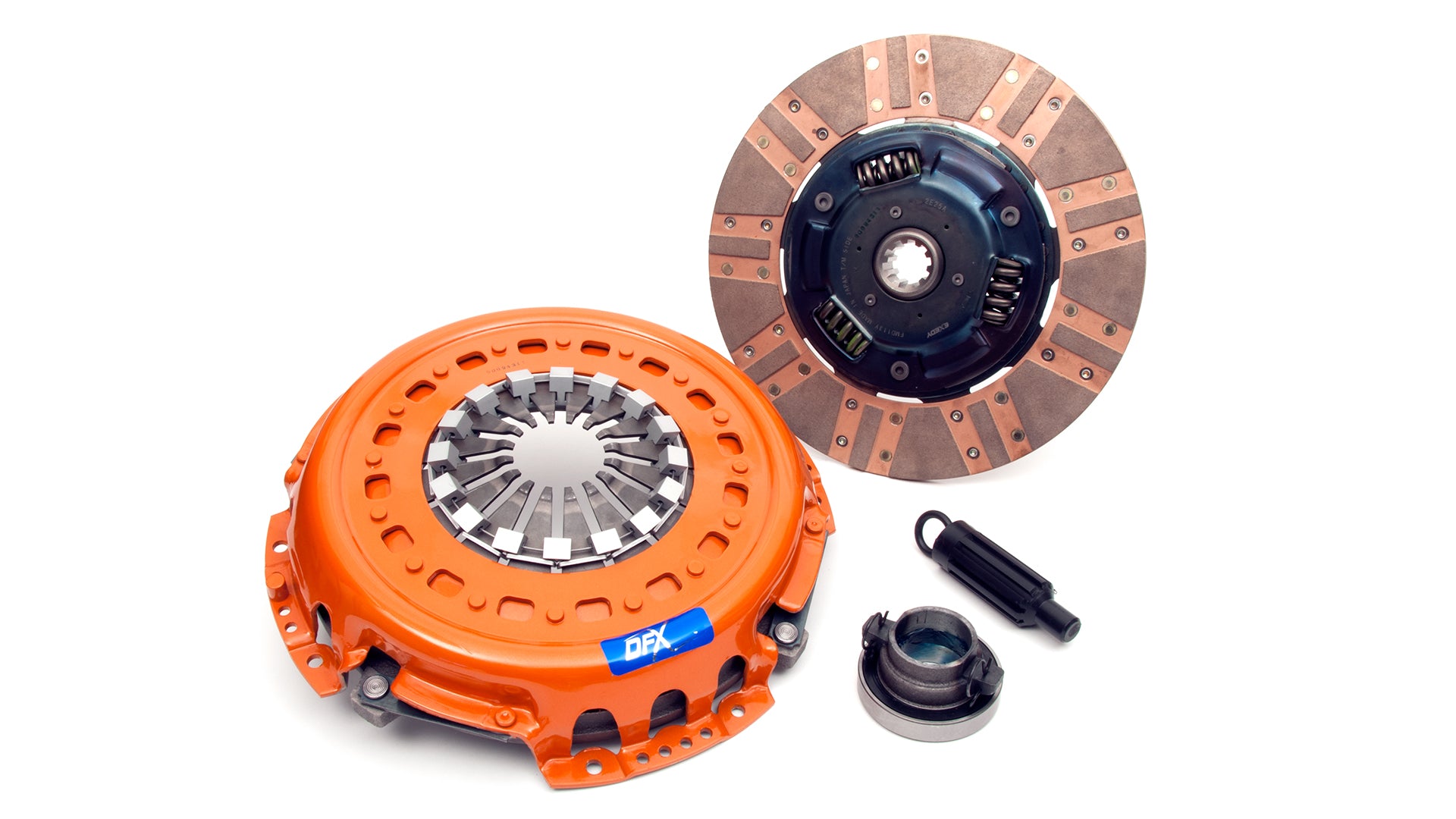

The Centerforce(R) DFX(R) Clutch Series is the competition-proven clutch package for select import and domestic applications. This DFX series is engineered for competition standards of quality and craftsmanship. The DFX series is aimed at high-end applications that continually demand increased integrity and holding-capacity. DFX scores big, not only with holding-capacity and strength, but also provides some of the best drivability from a race-inspired single disc clutch. The DFX series features the patented Centerforce centrifugal weight system (where applicable) and retains an easy pedal effort, thanks to Centerforce's patented ball bearing actuated diaphragm, for smooth engagements without detriment to the vehicle's release components. The Centerforce DFX performance clutch system includes Nodular Iron pressure plate rings and reinforcements designed to help prevent drive strap breakage and safety. Note: Due to the materials used, the DFX clutch series is more aggressive with less dampening; this can cause some additional drive train noise and/or chatter.
- 13" Diameter;
Attributes:
- GTIN: 00788442032819
- Brand Name: Centerforce
- Alignment Tool Included9: Yes
- Clutch Bolt Pattern4: 23
- Clutch Disc Diameter: 13
- Clutch Disc Diameter: 330.2
- Counterweight Assist5: YES
- Disc Material3: Cerametallic
- Disc Type Sprung Solid2: Sprung
- Disc Type6: Full/Segmented
- Input Shaft Diameter1: 1-3/8
- Input Spline Quantity2: 10
- Material4: Cast Iron Pressure Plate / Cerametallic Button Style Friction
- Release Bearing Included5: Yes
- SFI 1.1 Approved: Y
Extended Information:
- Country of Origin: Japan
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 14 x 14 x 4 inches
- Weight: 48.9 lb
