Description

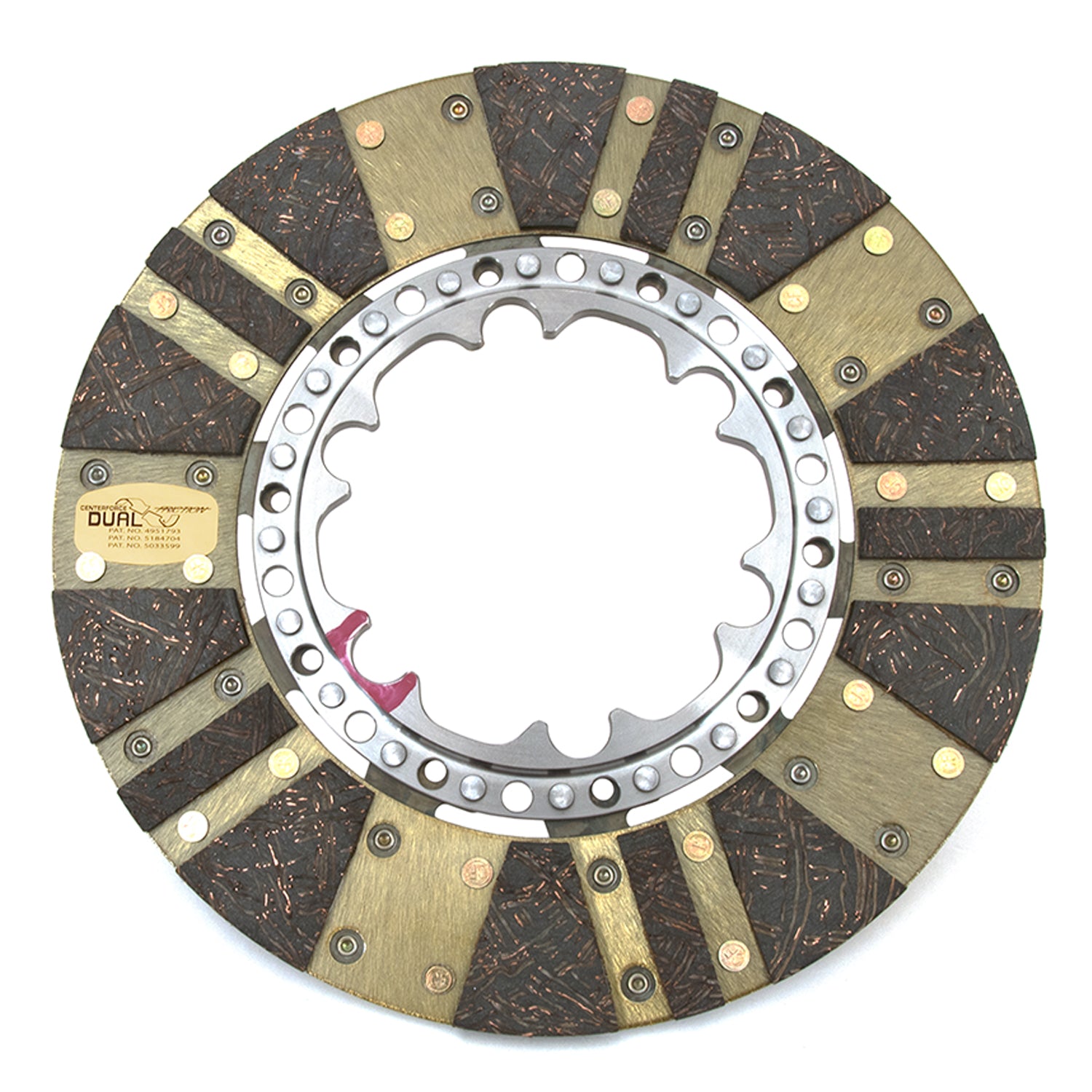

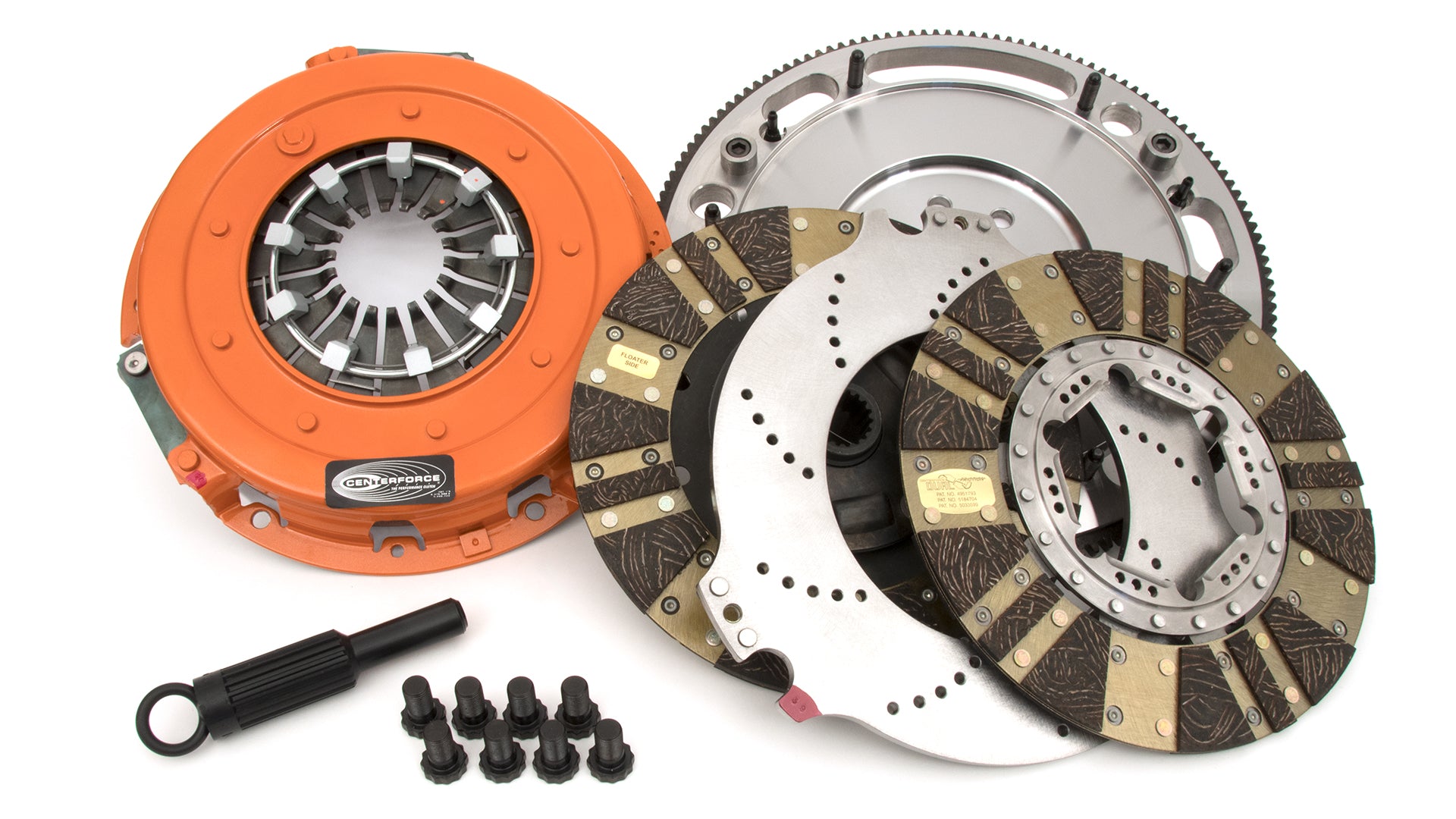

The Centerforce(R) DYAD DS 10.4" twin disc clutch has been developed for vehicles requiring a holding capacity of 500 to 1300 ft/lbs of torque at the crank. The pressure plate features our patented centrifugal weight system for superior clamp load over stock and our patented ball bearing actuated pressure plate providing light pedal effort. The discs are equipped with organic segmented facings providing increased holding capacity and the sprung/dampened drive disc provides smooth drivability. DYAD DS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Components are designed, machined and assembled in the USA. DYAD DS clutches are match balanced and ready for installation using the included ARP fasteners.
- 10.4" Diameter;
Attributes:
- GTIN: 00788442034387
- Brand Name: Centerforce
- Alignment Tool Included9: Yes
- Clutch Disc Diameter8: 10.4
- Clutch Disc Diameter9: 264.2
- Counterweight Assist2: YES
- Crankshaft Bolt Hole Quantity7: 8
- Disc Material4: Organic/Carbon Composite
- Disc Type Sprung Solid: Sprung
- Disc Type5: Segmented face
- Flywheel Counter Balance Weight7: 0
- Flywheel Crank Bolt Size1: 1/2 in x 20 x .875
- Flywheel Crank Flange Register8: 2.160
- Input Shaft Diameter1: 1-3/16
- Input Spline Quantity3: 18
- Installed Height2: 2.960
- Material2: Billet Steel Flywheel / Nodular Iron Pressure Plate / Segmented Organic Friction
- Mounting Hardware Included0: Yes
- Ring Gear O.D.7: 14.579
- Tooth Quantity: 143
- Torque Capacity: 1300
Extended Information:
- Country of Origin: United States
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 18 x 18 x 5.5 inches
- Weight: 51 lb
