Description

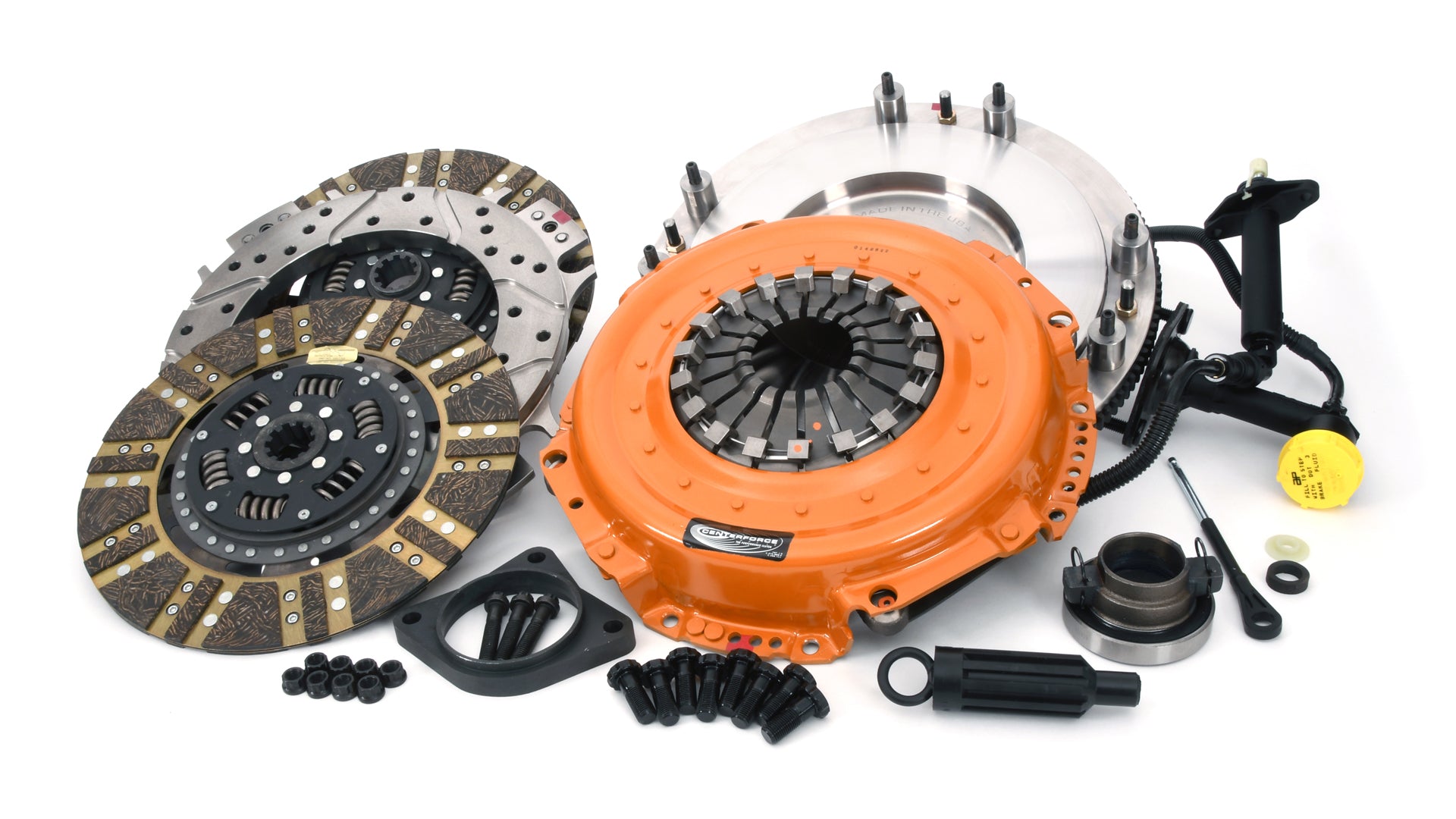

Available for Dodge Cummins Diesel equipped 2500-5500 trucks. Centerforce announces their NEW Twin Disc clutch set for Heavy-Duty street and towing use. Truck owners pushing power levels up to 1700 ft/lbs will enjoy the smooth and quiet operation this unique clutch set offers. All components are match balanced and ready for installation.
- 12.250" Diameter;
Attributes:
- GTIN: 00788442033779
- Brand Name: Centerforce
- Alignment Tool Included9: Yes
- Clutch Bolt Pattern6: 22
- Clutch Disc Diameter8: 12.250
- Clutch Disc Diameter9: 311.2
- Counterweight Assist2: YES
- Crankshaft Bolt Hole Quantity7: 8
- Disc Material4: Organic/Carbon Composite
- Disc Type Sprung Solid: Sprung
- Disc Type5: Segmented face
- Flywheel Counter Balance Weight7: 0
- Flywheel Crank Bolt Size1: M12 x 1.25 x 32
- Flywheel Crank Flange Register8: 5.118
- Input Shaft Diameter1: 1-3/8
- Input Spline Quantity3: 10
- Installed Height2: 4.475
- Material2: Billet Steel Flywheel / Cast Iron Pressure Plate / Segmented Organic Friction
- Mounting Hardware Included0: Yes
- Out of Package Weight: 109.10
- Pilot Bushing Included7: Yes
- Pilot Bushing Material8: Bearing
- Release Bearing Included5: Yes
- Release Bearing Style6: Flat Face
- Ring Gear O.D.7: 15.625
- Tooth Quantity: 152
- Torque Capacity: 1700
Extended Information:
- Country of Origin: United States
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 19 x 18.5 x 15 inches
- Weight: 114.8 lb
