Description

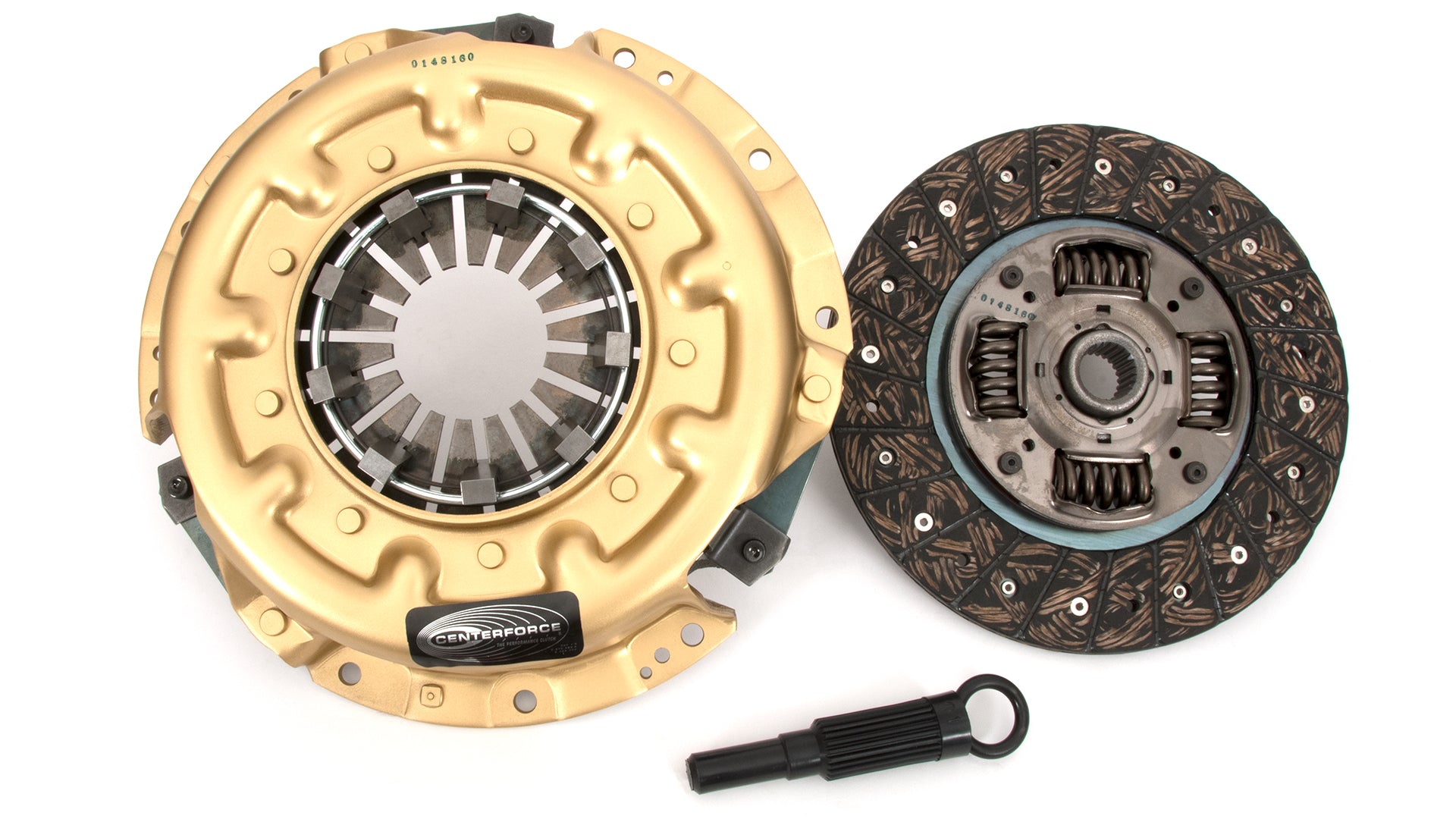

The Centerforce(R) I Clutch Series utilizes a full facing disc with premium friction material and is designed as a high-quality entry-level performance clutch for those in need of a superior stock replacement. Using the Centerforce centrifugal weights (where applicable), the Centerforce Stage 1 clutch system is perfect for applications with stock engines or mild power increases from minor bolt-on modifications. Pressure plate and disc sold separately on some applications. The Torque Figures for Centerforce I Pressure Plates are based and calculated in conjunction with a Centerforce I & II Clutch Disc.
- 9-7/16" Diameter;
Attributes:
- GTIN: 00788442012897
- Brand Name: Centerforce

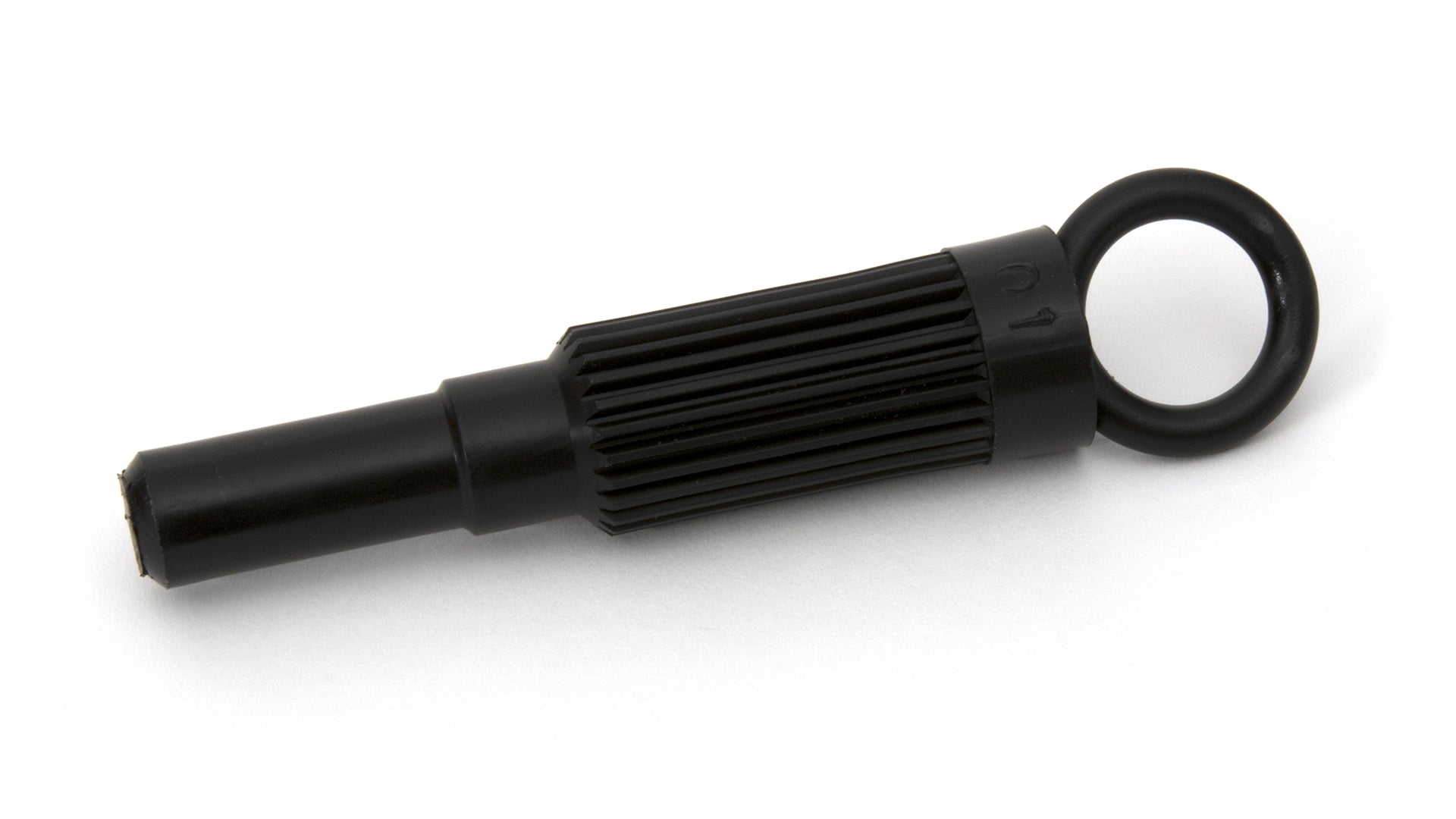

- Alignment Tool Included9: Yes
- Clutch Disc Diameter: 9-7/16
- Clutch Disc Diameter: 240
- Counterweight Assist5: YES
- Disc Material3: Organic
- Disc Type Sprung Solid2: Sprung
- Disc Type6: Full face
- Flywheel Step4: 0.004
- Input Shaft Diameter1: 1
- Input Spline Quantity2: 24
- Material4: Cast Iron Pressure Plate / Organic Friction
- Torque Capacity: 322
Extended Information:
- Country of Origin: Korea, Republic of
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 14 x 14 x 4 inches
- Weight: 19.2 lb
