Description

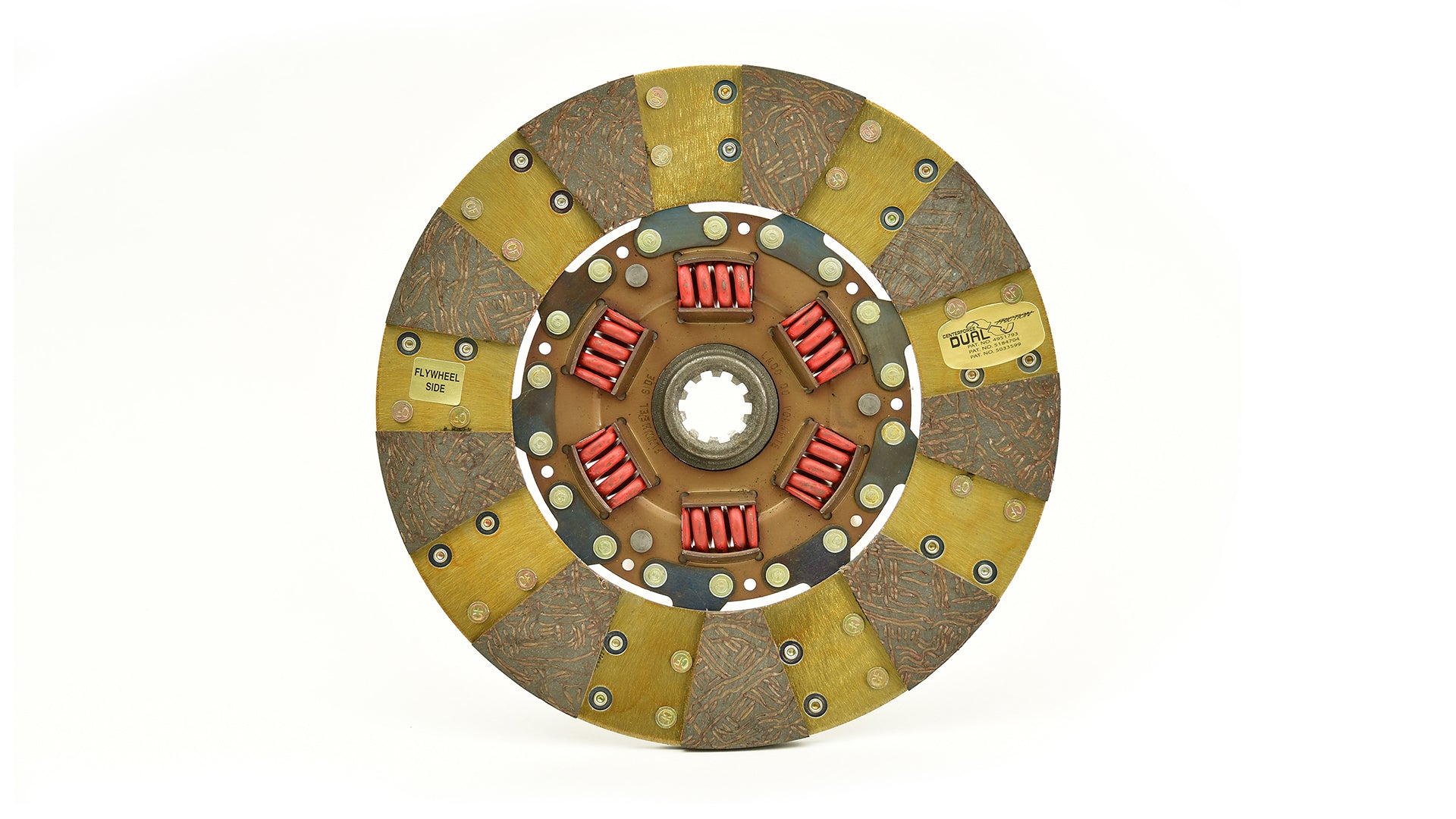

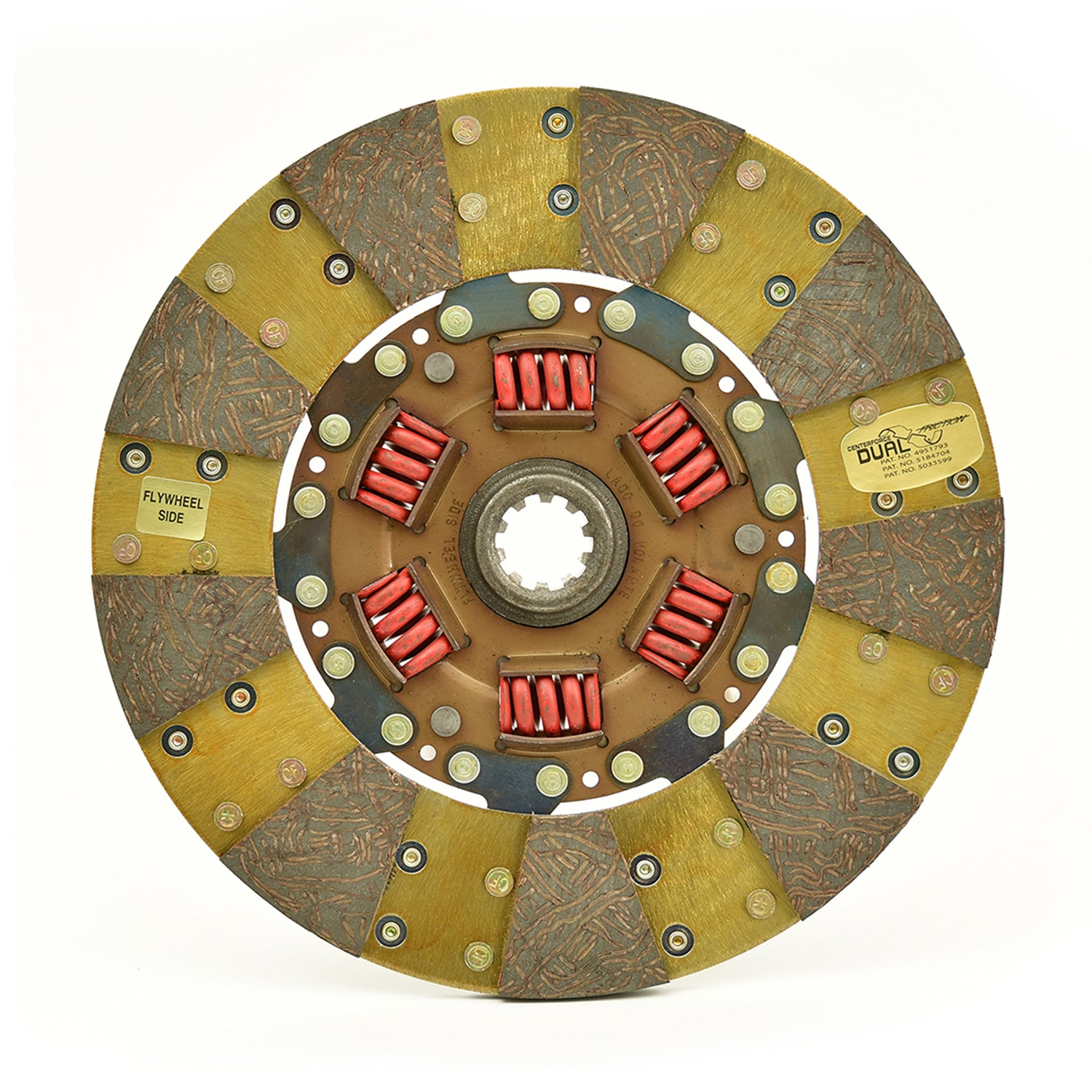

The Centerforce(R) Dual Friction(R) Disc Series uses a single disc with patented dual friction technology by distributing pressure plate clamp force evenly over a 360-degree friction-facing on one side of the clutch disc, while the opposing side uses a segmented friction-facing to concentrate clamping pressure and increase clutch holding-capacity. These discs are made for Centerforce Dual Friction pressure plates.
- 10" Diameter;
Attributes:
- GTIN: 00788442035469
- Brand Name: Centerforce
- Clutch Disc Diameter: 10
- Clutch Disc Diameter: 254.0
- Disc Material1: Organic/Carbon Composite
- Disc Type Sprung Solid2: Sprung
- Disc Type4: Full face/Segmented face
- Input Shaft Diameter0: 1-1/16
- Input Spline Quantity1: 10
- Material3: Full Face and Segmented Organic Friction
- Out of Package Weight: 3.75
Extended Information:
- Country of Origin: Brazil
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 14 x 14 x 2 inches
- Weight: 4.3 lb
