Description

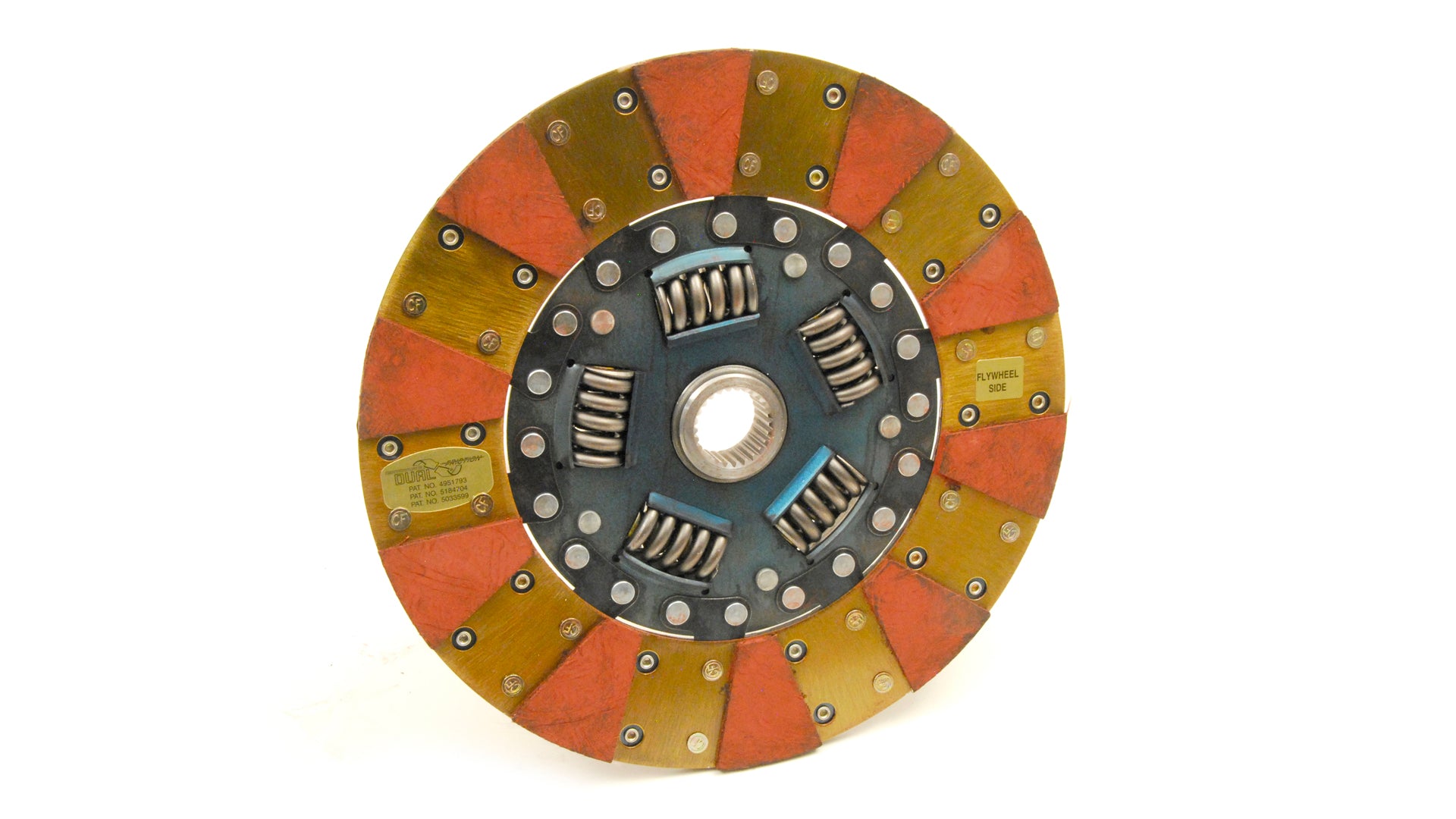

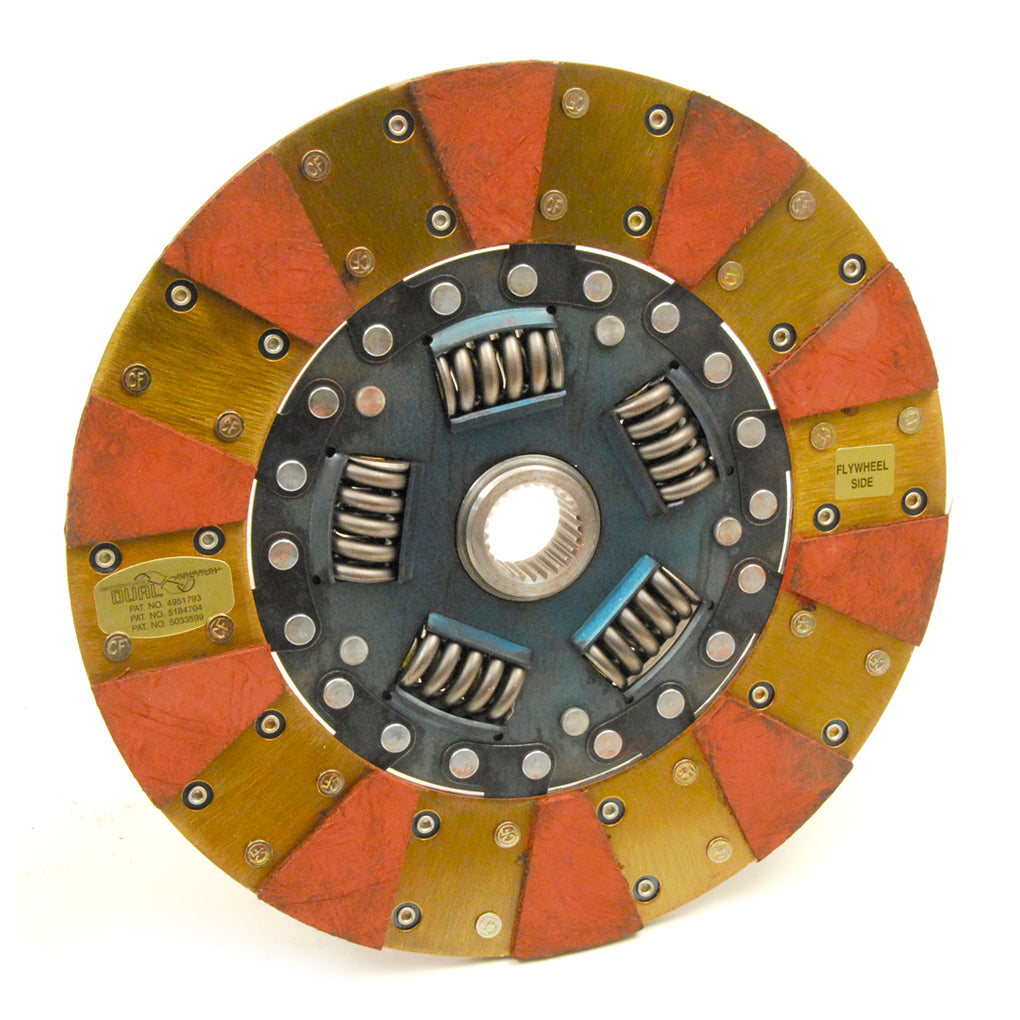

The Centerforce(R) Dual Friction(R) Disc Series uses a single disc with patented dual friction technology by distributing pressure plate clamp force evenly over a 360-degree friction-facing on one side of the clutch disc, while the opposing side uses a segmented friction-facing to concentrate clamping pressure and increase clutch holding-capacity. These discs are made for Centerforce Dual Friction pressure plates.
- 10.700" Diameter;
Attributes:
- GTIN: 00788442027709
- Brand Name: Centerforce
- Clutch Disc Diameter: 10.700
- Clutch Disc Diameter: 271.8
- Disc Material1: Organic/Carbon Composite
- Disc Type Sprung Solid2: Sprung
- Disc Type4: Full face/Segmented face
- Input Shaft Diameter0: 1-1/8
- Input Spline Quantity1: 26
- Inside Diameter of Friction Surface7: 6.490
- Inside Diameter of Friction Surface8: 164.8
- Material3: Full Face and Segmented Organic Friction
- Out of Package Weight: 4.59
Extended Information:
- Country of Origin: Thailand
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 14 x 14 x 2 inches
- Weight: 5.14 lb
