Description

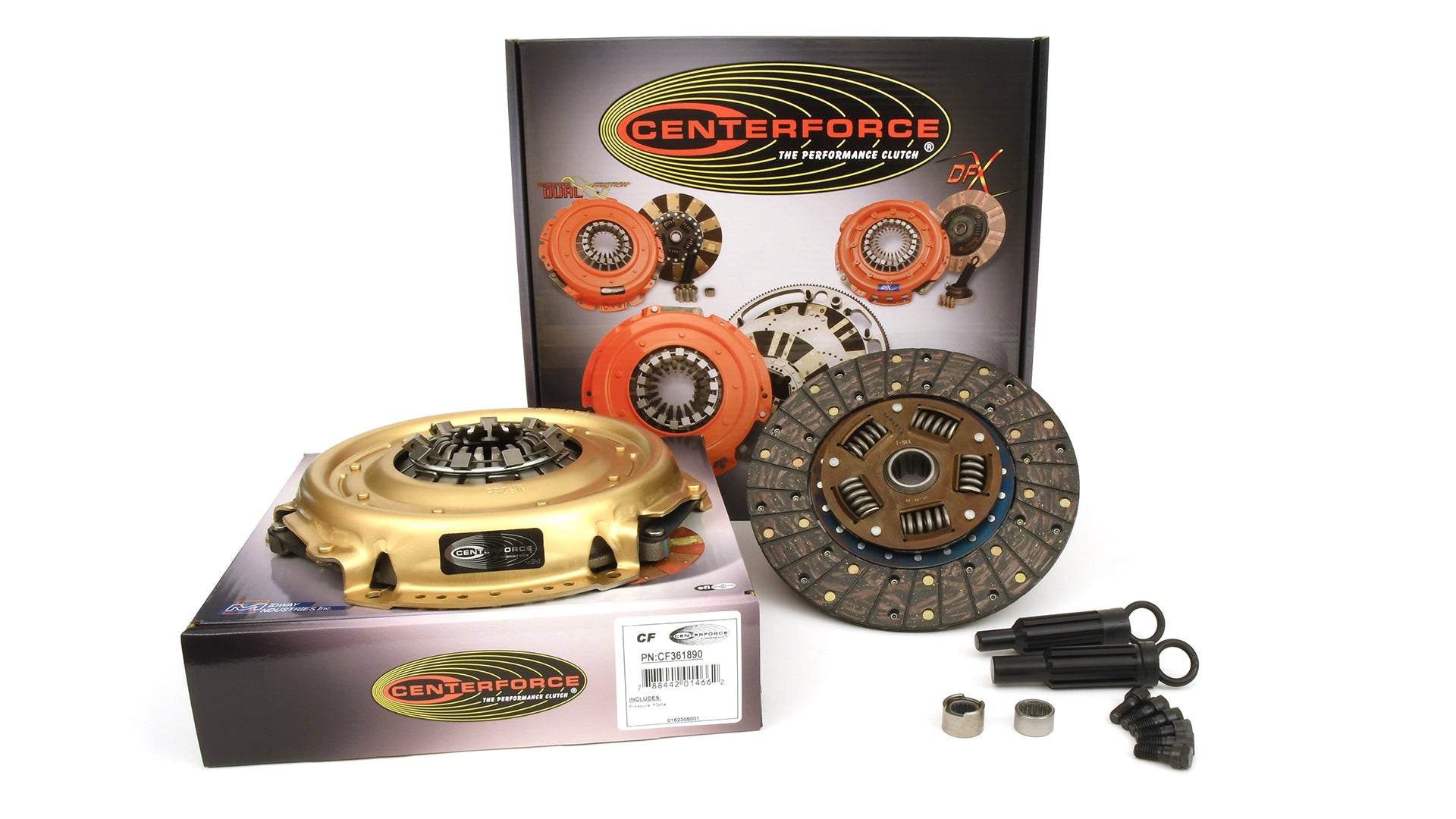

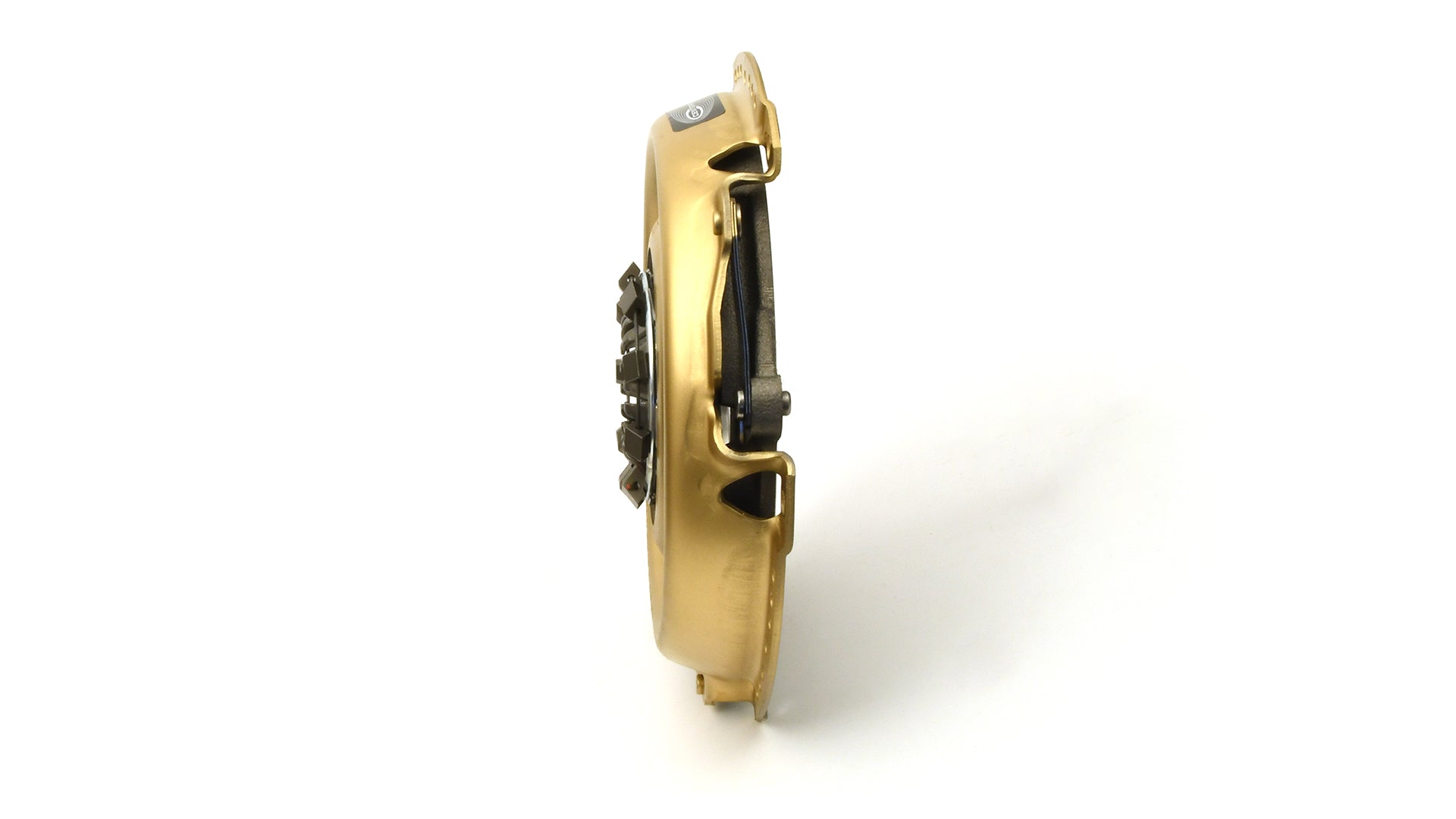

The Centerforce(R) I Clutch Series utilizes a full facing disc with premium friction material and is designed as a high-quality entry-level performance clutch for those in need of a superior stock replacement. Using the Centerforce centrifugal weights (where applicable), the Centerforce Stage 1 clutch system is perfect for applications with stock engines or mild power increases from minor bolt-on modifications. Pressure plate and disc sold separately on some applications. The Torque Figures for Centerforce I Pressure Plates are based and calculated in conjunction with a Centerforce I & II Clutch Disc.
- 10.4" Diameter;
Attributes:
- GTIN: 00788442030792
- Brand Name: Centerforce
- Alignment Tool Included9: Yes
- Clutch Bolt Pattern4: 2
- Clutch Bolt Size8: 3/8 - 16 X 0.900
- Clutch Bolt Type7: Shouldered
- Clutch Disc Diameter: 10.4
- Clutch Disc Diameter: 264.2
- Counterweight Assist7: YES
- Disc Material3: Organic
- Disc Type Sprung Solid4: Sprung
- Disc Type6: Full face
- Input Shaft Diameter1: 1-1/8
- Input Spline Quantity2: 10
- Material5: Cast Iron Pressure Plate / Organic Friction
- Mounting Hardware Included0: Yes
- Out of Package Weight: 16.8
- Pilot Bushing Included7: Yes
- Torque Capacity: 379
Extended Information:
- Country of Origin: Mexico
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 18 x 18 x 5.5 inches
- Weight: 22.75 lb
