Description

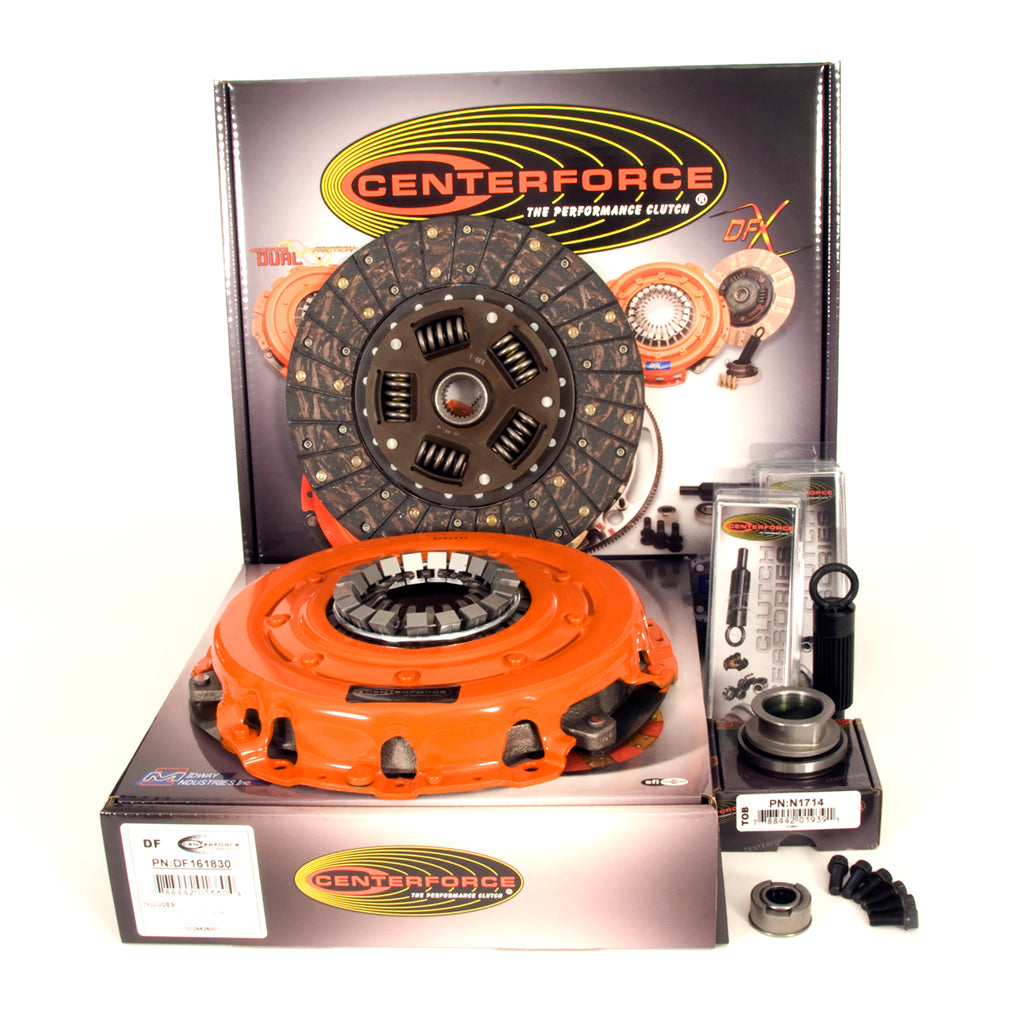

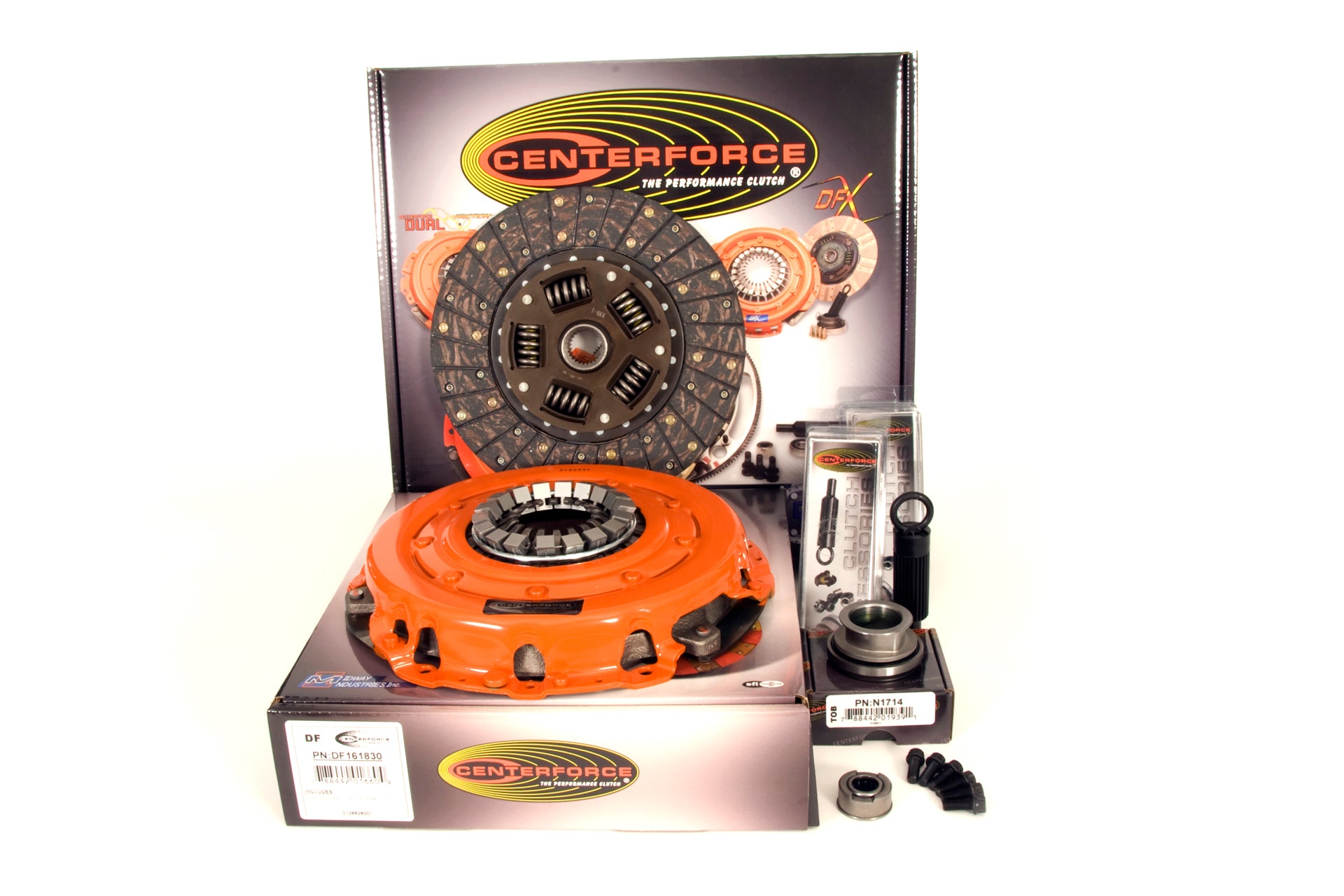

The Centerforce(R) II Clutch Series utilizes a full facing disc with premium friction material and a pressure plate with centrifugal weights (where applicable). Furthermore, static clamp load is increased via our patented machining processes; this combination allows superb holding power and maximum clutch life, making this clutch ideal for selected street/strip, off-road and towing applications. Pressure plate and disc sold separately on some applications. The Torque Figures for Centerforce II Pressure Plates are based and calculated in conjunction with a Centerforce I & II Clutch Disc.
- 10.4" Diameter;
Attributes:
- GTIN: 00788442029840
- Brand Name: Centerforce
- Alignment Tool Included9: Yes
- Clutch Bolt Pattern4: 7
- Clutch Disc Diameter: 10.4
- Clutch Disc Diameter: 264.2
- Counterweight Assist7: YES
- Disc Material3: Organic
- Disc Type Sprung Solid4: Sprung
- Disc Type6: Full face
- Flywheel Step Type3: Flat
- Input Shaft Diameter1: 1-1/8
- Input Spline Quantity2: 26
- Material5: Nodular Iron Pressure Plate / Organic Friction
- Mounting Hardware Included0: Yes
- Out of Package Weight: 22.7
- Pilot Bushing Included7: Yes
- Release Bearing Included5: Yes
- Torque Capacity: 515
Extended Information:
- Country of Origin: Korea, Republic of
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 18 x 18 x 5.5 inches
- Weight: 23.7 lb
