Description

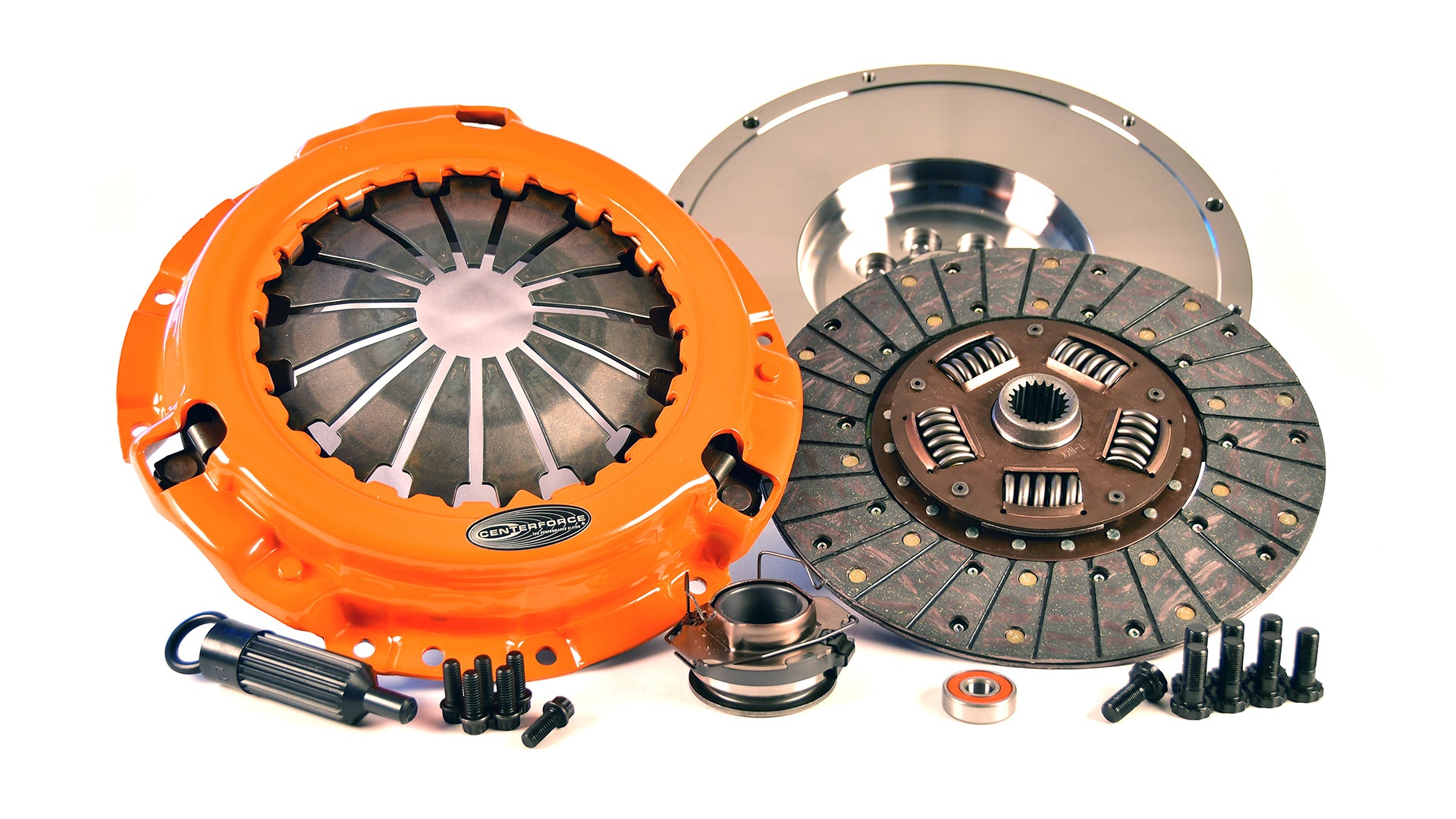

The Centerforce(R) II Clutch Series utilizes a full facing disc with premium friction material and a pressure plate with centrifugal weights (where applicable). Furthermore, static clamp load is increased via our patented machining processes; this combination allows superb holding power and maximum clutch life, making this clutch ideal for selected street/strip, off-road and towing applications. Pressure plate and disc sold separately on some applications. The Torque Figures for Centerforce II Pressure Plates are based and calculated in conjunction with a Centerforce I & II Clutch Disc.
- 11" Diameter;
Attributes:
- GTIN: 00788442036497
- Brand Name: Centerforce
- Alignment Tool Included9: Yes
- Clutch Disc Diameter8: 11
- Clutch Disc Diameter9: 279.4
- Counterweight Assist2: YES
- Crankshaft Bolt Hole Quantity7: 8
- Disc Material4: Organic
- Disc Type Sprung Solid: Sprung
- Disc Type5: Full Face
- Flywheel Crank Bolt Size1: M10 x 1.125 x 22
- Input Shaft Diameter1: 1-1/8
- Input Spline Quantity3: 21
- Material2: Cast Iron Pressure Plate / Organic Friction
- Mounting Hardware Included0: Yes
- Pilot Bushing Included7: Yes
- Release Bearing Included5: Yes
- Ring Gear O.D.7: 13.195
- Tooth Quantity: 129
- Torque Capacity: 406
Extended Information:
- Country of Origin: United States
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 18 x 18 x 5.5 inches
- Weight: 75.05 lb
