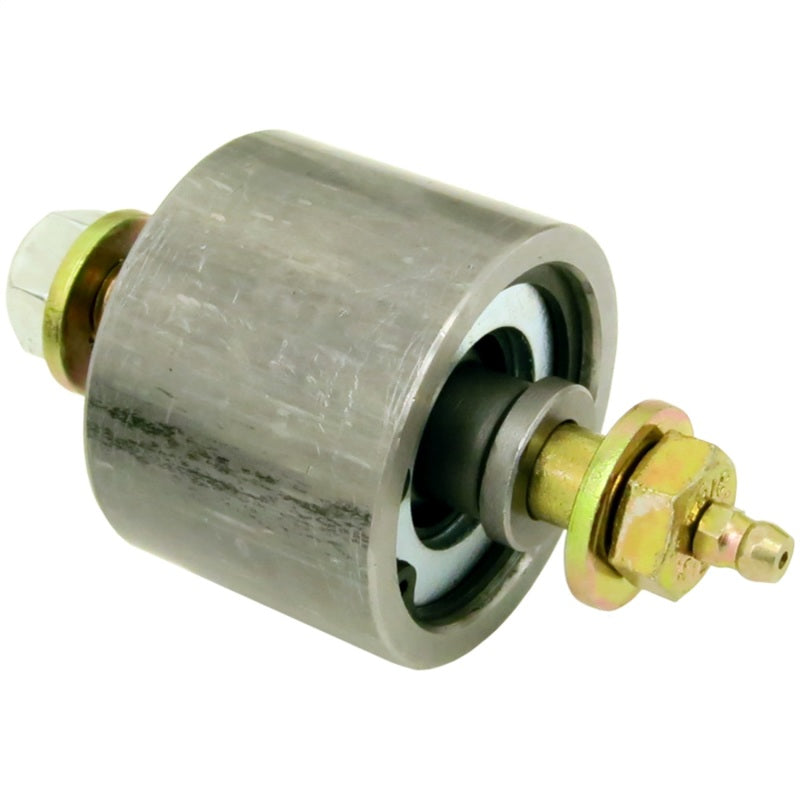

RockJock Johnny Joint Rod End 2in Weld-On 2in X .500in Ball Int. Greased w/ Greasable Bolt

RockJocks weld-on Johnny Joints(R) for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint(R) rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. The outer shell is weldable .180 in. wall machined DOM tubing. This specific joint is a 2 in. o.d. and features a 2 in. mounting width and a .500 in. thru bolt hole. Grade 8 greasable bolt with nut and washers included.
