Skyjacker 4In PKG97-02TJW/ X-LKS

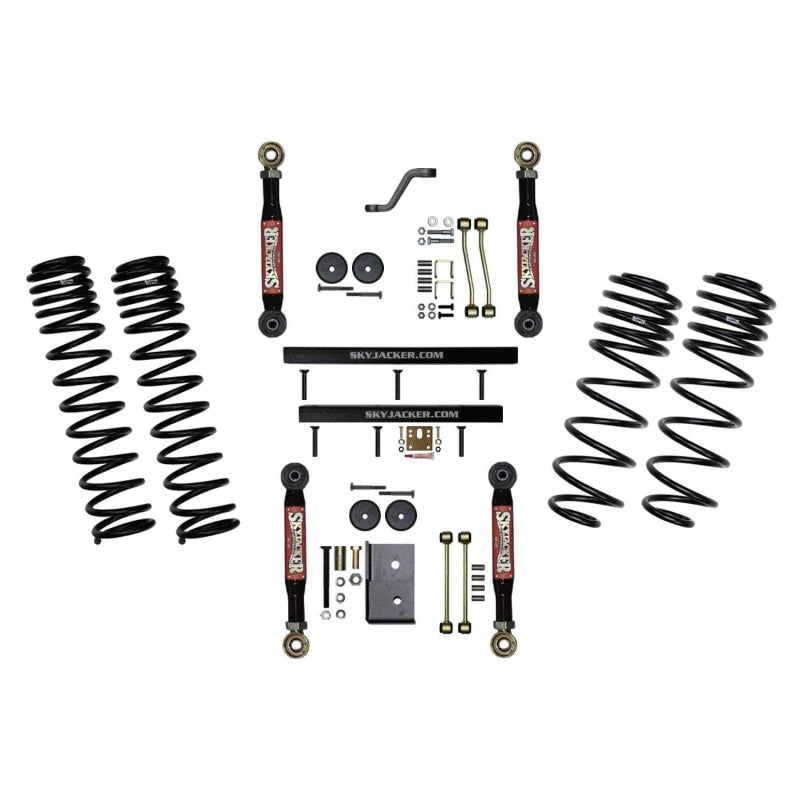

Skyjacker specifically engineered a progressive variable rate coil spring, distinctively a 2-stage dual rate long travel coil. Spring rate progression is from a first Flex Rate to a second Ride Rate. The first Flex Rate stage delivers a comfortable ride with the ability to ability to flex/expand during full articulation. The second Ride Rate stage only engages after compression past the Flex Rate: resulting in a smoother ride. Includes a Pair of Front and a Pair of Rear Dual Rate Long Travel Coil Springs. Longer Front and Rear Lower Control Arm Links correct caster angle. The upper frame mount has pressed-in HD OEM style vulcanized rubber bushings and the axle mount has Rock Jocks 2-1/2 in. forged Johnny Joints. These Johnny Joints provide over 30 degrees of unrestricted Flex movement in any direction. The high-density urethane bushings are very durable and the forged housing withstands torsional forces. Johnny Joints provides proven quiet, shock dampening articulation. Front and Rear Bump Stop Spacers bolt in between the upper frame and OEM bump stops. Correct bump keeps the suspension travel safely in check. Front (Double Disconnect) and Rear Extended Length Sway Bar End Links allow full articulation as the suspension drops (full droop). These sway bar end links include Skyjacker installed pressed-in HD OEM style rubber bushings. A tubular Transfer Case Lowering Kit helps avoid drive shaft vibration by correcting proper driveline angle while retaining as much ground clearance as possible. Designed to reduce the operating angle of the drag link, the drop pitman arm brings the drag link back into correct alignment and in line with the track bar. Rear Track Bar Lower Axle Mount Bracket mounts directly to the rear axle housing to correct the track bar angle. This re-centers the rear axle and creates better handling and a lower roll center. Lower roll center means less side-to-side sway. Comes complete with Bushings and High-Grade Mounting Hardware.

This Part Fits:
