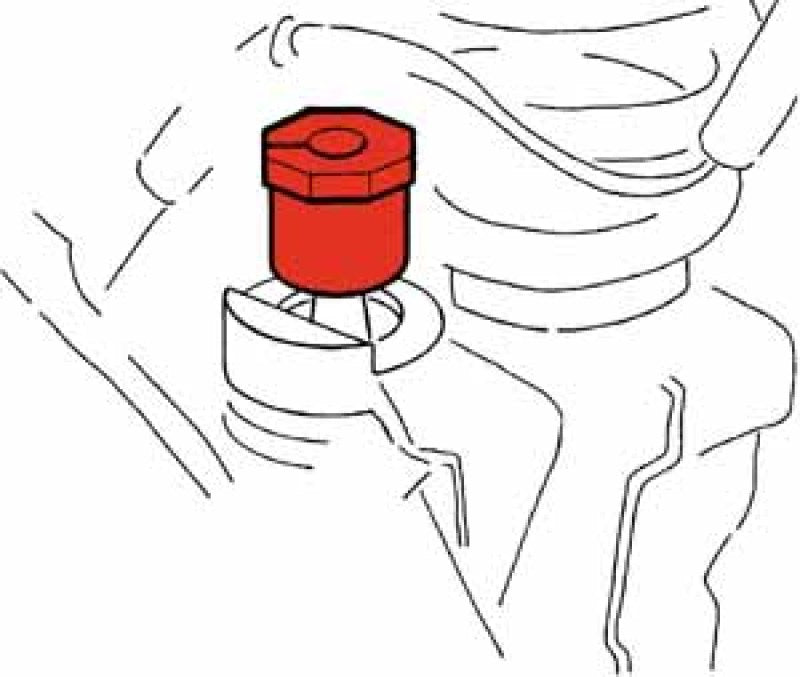

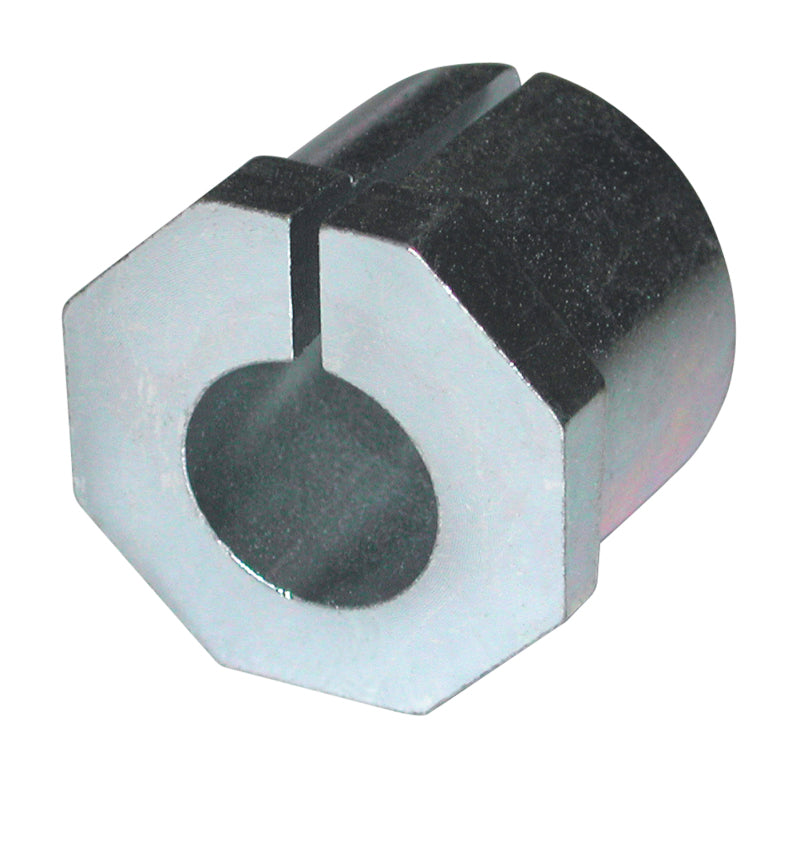

Change camber,caster or both at the same time with these sleeves. Simply remove the tire, cotter pin and upper ball joint stud nut and break the taper free between the stud and sleeve. Using a sleeve puller, remove the existing sleeve. Install a zero degree sleeve 23139 to determine the change needed ,then install the correct sleeve.To split camber and caster adjustment, rotate sleeve 45°. Set 23130 contains 1 each: 23131, 23132, 23133, 23134, 23135, 23136, 23137, 23138, 23139
Installation Instructions
