UMI Performance 68-70 GM A-Body Corner Max Street Handling Race Package - Red

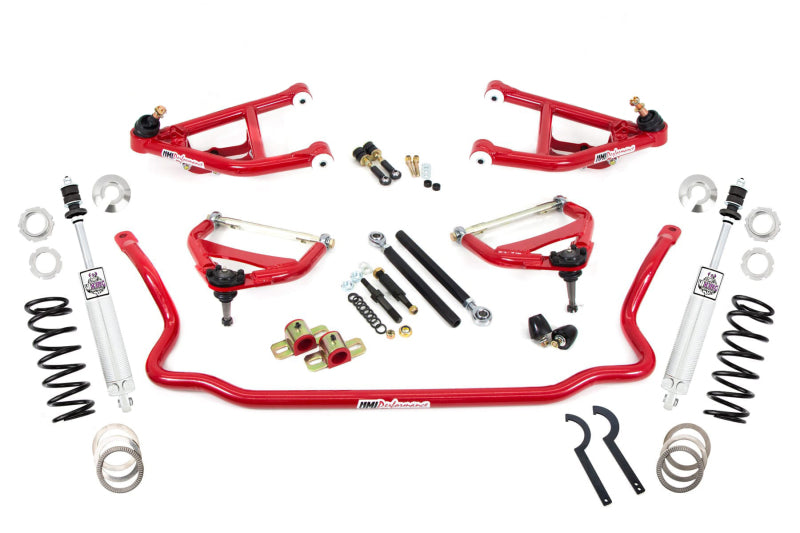

UMI’s Corner Max front end kits are a comprehensive system with our best corner carving parts under one easy to find part number. The Corner Max system combines geometry corrected a-arms with tall ball joints, higher rate springs, UMI rebound adjustable monotube shocks, heavy duty sway bar and a bump steer kit. The foundation of the kit includes our coilover-only lower a-arms featuring caster improvement, tall ball joints, and the ability to remove the spring and shock without taking the spindle apart. The upper a-arm features rod ends for smooth operation and the ability to adjust without shims. The 1-5/16” sway bar upgrade complete with UMI’s fabricated end links reduces body roll and helps speed transitions. Racing coilover springs are paired with UMI’s rebound adjustable coilover monotube shocks. Fine tuning is accomplished with a UMI bump steer kit. The Corner Max kit is built to make the stock GM clip work as well as it possibly can with a true bolt-on kit. All UMI Performance parts are fabricated and raced with pride out of Philipsburg, PA – USA. Race proven on the UMI LeMans.

This Part Fits:

Year	Make	Model	Submodel
1970	Buick	Skylark	350
1968-1970	Buick	Skylark	Base
1968-1970	Buick	Skylark	Custom
1968	Chevrolet	Chevelle	300
1968-1969	Chevrolet	Chevelle	300 Deluxe
1968,1970	Chevrolet	Chevelle	Base
1968-1970	Chevrolet	Chevelle	Concours
1969-1970	Chevrolet	Chevelle	Concours Estate
1969-1970	Chevrolet	Chevelle	Greenbrier
1968-1970	Chevrolet	Chevelle	Malibu
1968-1970	Chevrolet	Chevelle	Nomad
1968-1970	Chevrolet	Chevelle	SS
1968-1970	Chevrolet	El Camino	Base
1968-1970	Chevrolet	El Camino	Custom
1968-1970	Chevrolet	El Camino	SS
1968-1971	Oldsmobile	442	Base
1968-1970	Oldsmobile	Cutlass	Base
1968	Oldsmobile	Cutlass	S
1968-1970	Oldsmobile	Vista Cruiser	Base
1968-1970	Pontiac	Grand Prix	Base
1968-1970	Pontiac	GTO	Base
1970	Pontiac	GTO	The Judge
1968-1970	Pontiac	LeMans	Base
1969-1970	Pontiac	LeMans	Safari
1970	Pontiac	LeMans	Sport
1968-1970	Pontiac	Tempest	Base
1968-1969	Pontiac	Tempest	Custom
1970	Pontiac	Tempest	GT
1968-1969	Pontiac	Tempest	Safari
